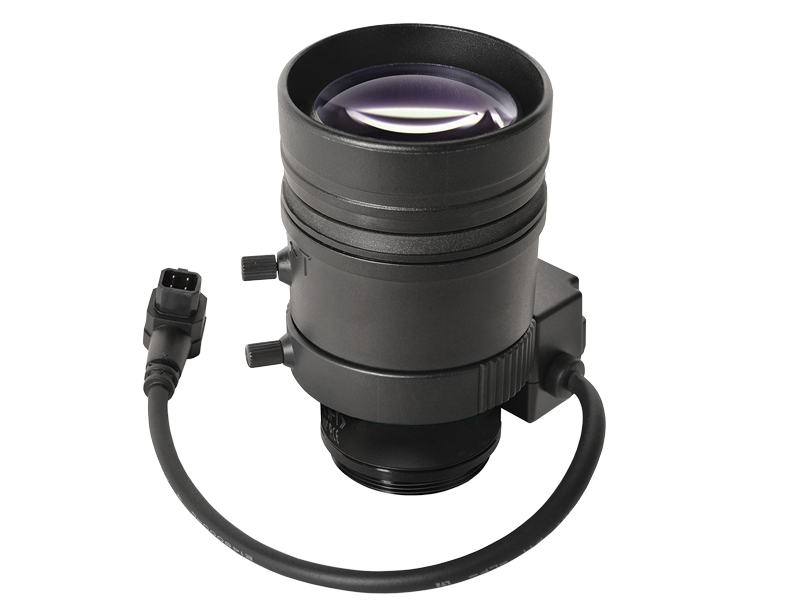

Hanwha - SLA-F-M1550DNL - 3 Megapixel Day/Night Varifocal 1/2.7"
Part number:
SLA-F-M1550DNL
Price:
High image-quality monitoring with optical performance supporting 3 megapixels. Advanced design engineering and special optic glass adopted, best suited for color, Black & White, and Day and Night cameras. SLA-F-M1550DN has an f15-50mm, 3.3x zooming application compatible lens. This lens is designed to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass. Built-in ND filter of T360, supporting high sensitivity cameras.
Key Features:
- f15-50mm / F1.5
- 3 Megapixel Resolution
- Auto Iris (DC type)
- Day & Night
- ND Filter
- Aspherical Lens
- RoHS Compliant
| Description | 3 Megapixel Resolution |
| Day & Night Lens | |
| Focal length | 15mm ~ 50mm |
| Zoom factor | 3.3 |
| Applicable lens | for 1/2.7" ~ 1/4" cameras |
| Iris range | F1.5~T360 (Equivalent to F360) |
| Operation iris | Auto (DC Type) |
| Operation zoom | Manual |
| Operation focus | Manual |
| Angle of view | 1/2.7" |
| Wide: 20° 01' x 15° 05' | |
| Tele: 06° 09' x 04° 39' | |
| 1/3" | |
| Wide: 18° 14' x 13° 43' | |
| Tele: 05° 37' x 04° 14' | |
| Minimum object distance (M.O.D. | 1 meter (3.28 feet) |
| Focusing range (from front lens) | infinity ~ 1 meter (3.28 feet) |
| Mount | CS |
| Mass in Weight | 65g (0.143 lbs) |
