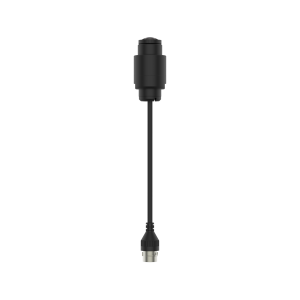

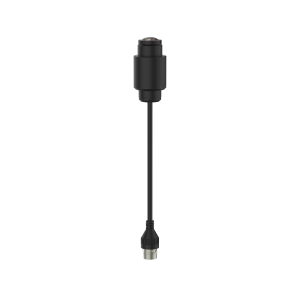

Hanwha - SLA-F1080FA - 5MP, 1.6mm Fixed Lens Module
Part number:
Price:
• Support 5MP resolution
• 1.6mm fisheye lens
• IP66, NEMA 4X
• 8m cable included
• Compatible with PNM-C20000QB/XNB-A8004B
| Video | |
|---|---|
| Imaging Device Size | 1/2.8" |
| Type | CMOS |
| Min. Illumination (Lux) Color(1/30sec, 30IRE) | 0.05 |
| BW(1/30sec, 30IRE) | 0.05 |
| Lens | |
| Focal Length (mm) | 1.6 |
| Max. Aperture Ratio (F number) | Wide: 1.6 Tele: 1.6 |
| Angular Field of View | Horizontal: 180° Vertical: 145° Diagonal: 180° |
| Min. Object Distance | 0.5m (1.64ft) |
| Mount Type | RJ12 connected with main unit |
| Focus Control | Fixed |
| Environmental & Electrical | |
| Operating Condition | Temperature: -10°C ~ +55°C (+14°F ~ +131°F) Humidity: 0~95% RH |
| Storage Condition | Temperature: -50°C~+60°C (-58°F~+140°F) Humidity: Less than 90% RH |
| Mechanical | |
| Color | Black |
| Material | Metal |
| Product Dimensions | ø35 x 68.9mm (ø1.38 x 2.71"), Cable: 8m (26.2ft) |
| Product Weight | 108g (0.24 lb), Cable: 350g (0.77lb) |
| Certification & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 |
| Environment | IEC 60529 IP66, NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
