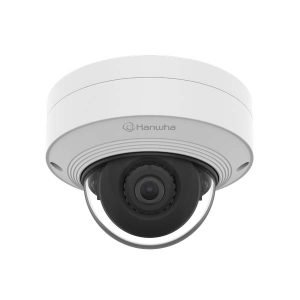

Hanwha - SLA-F2480WDA - 5MP, Outdoor Rated 2.4mm Fixed Lens Module
Part number:
Price:
• Support 5MP resolution
• 2.4mm fixed focal lens
• IP66, IK10, NEMA 4X
• 8m cable included
• Compatible with PNM-C20000QB/XNB-A8004B
| Video | |
|---|---|
| Imaging Device Size | 1/2.8" |
| Type | CMOS |
| Min. Illumination (Lux) Color(1/30sec, 30IRE) | 0.08 |
| BW(1/30sec, 30IRE) | 0.08 |
| Lens | |
| Focal Length (mm) | 2.45 |
| Max. Aperture Ratio (F number) | Wide: 2.0 Tele: 2.0 |
| Angular Field of View | Horizontal: 123° Vertical: 91° Diagonal: 159° |
| Mount Type | RJ12 connected with main unit |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Pan: 0°~350° Tilt: 0°~70° Rotate: 0°~355° |
| Environmental & Electrical | |
| Operating Condition | Temperature: -30°C~+55°C (-22°F~+131°F) Humidity: 0~95% RH Others: Start up should be done at above -30°C |
| Storage Condition | Temperature: -50°C~+60°C (-58°F~+140°F) Humidity: Less than 90% RH |
| Mechanical | |
| Color | White |
| Material | Metal |
| Product Dimensions | ø110.0 x 77.0mm (ø3.54 x 2.36"), Cable: 8m (26.2ft) |
| Product Weight | 455g (1.00lb), Cable: 350g (0.77lb) |
| Certification & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 |
| Environment | IEC 60529 IP66, NEMA 250 type 4X, IEC 62262 IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
Name
Description
Size
Downloads
File
Datasheet
0.6mb
accessories
