Hanwha - SLM-5M06 - 6mm Lens for Mono BCR Cameras
Part number:
Price:

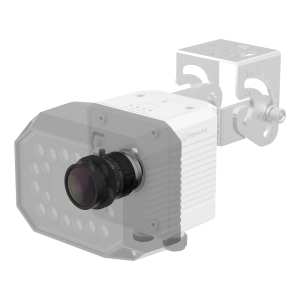

The Hanwha Vision SLM-5M06 is the widest-angle lens available for the TNS-7000M 3MP Mono BCR camera.
| Video | |
|---|---|
| Imaging Device Size | 1/3.1"~1/1.8" |
| Type | CMOS |
| Resolution | 3M~5M |
| Lens | |
| Focal Length (mm) | 6mm |
| Back Focal Length (mm) | 9.97mm |
| Flange Back Focal Length (mm) | 17.526mm |
| Max. Aperture Ratio (F number) | Wide: F6 |
| Angular Field of View | Horizontal: 42.0° ~ 58.4° Vertical: 32.1° ~ 50.1° Diagonal: 51.3° ~ 72.2° |
| Mount Type | C mount |
| Environmental & Electrical | |
| Operating Condition | Temperature: -20°C~+60°C (-4°F~+140°F) |
| Mechanical | |
| Product Dimensions | Ø29 x 51.41mm |
| Product Weight | 67.34g |
