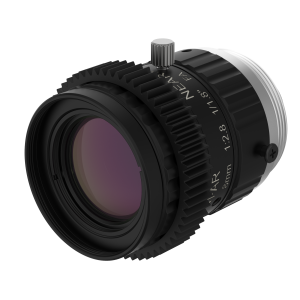

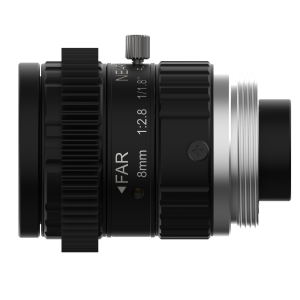

Hanwha - SLM-5M08 - 8mm Lens For Mono BCR Cameras
Part number:
Price:
The Hanwha Vision SLM-5M08 is a high-resolution, fixed-focal lens designed for the TNS-7000M 3MP Mono BCR camera.
| Video | |
|---|---|
| Imaging Device Size | 1/3.1"~1/1.8" |
| Type | CMOS |
| Resolution | 3M ~ 5M |
| Lens | |
| Focal Length (mm) | 8mm |
| Back Focal Length (mm) | 9.87mm |
| Flange Back Focal Length (mm) | 17.526mm |
| Max. Aperture Ratio (F number) | Wide: F6 |
| Angular Field of View | Horizontal: 32.1° ~ 45.5° Vertical: 24.4° ~ 38.7° Diagonal: 39.6° ~ 57.3° |
| Mount Type | C mount |
| Environmental & Electrical | |
| Operating Condition | Temperature: -20°C~+60°C (-4°F~+140°F) |
| Mechanical | |
| Product Dimensions | Ø29 x 45.94mm |
| Product Weight | 56.2g |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
