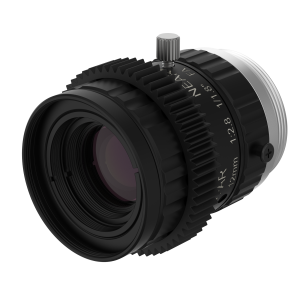

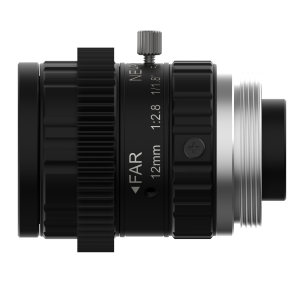

Hanwha - SLM-5M12 - 12mm Lens For Mono BCR Cameras
Part number:
Price:
The Hanwha Vision SLM-5M12 is a high-resolution, fixed-focal lens designed specifically for the TNS-7000M 3MP Mono BCR camera.
| Video | |
|---|---|
| Imaging Device Size | 1/3.1"~1/1.8" |
| Type | CMOS |
| Resolution | 3M ~ 5M |
| Lens | |
| Focal Length (mm) | 12mm |
| Back Focal Length (mm) | 11.51mm |
| Flange Back Focal Length (mm) | 17.526mm |
| Max. Aperture Ratio (F number) | Wide: F6 |
| Angular Field of View | Horizontal: 21.7° ~ 31.2° Vertical: 16.4° ~ 26.3° Diagonal: 27.0° ~ 40.0° |
| Mount Type | C mount |
| Environmental & Electrical | |
| Operating Condition | Temperature: -20°C~+60°C (-4°F~+140°F) |
| Mechanical | |
| Product Dimensions | Ø29 x 46.11mm |
| Product Weight | 54.22g |
