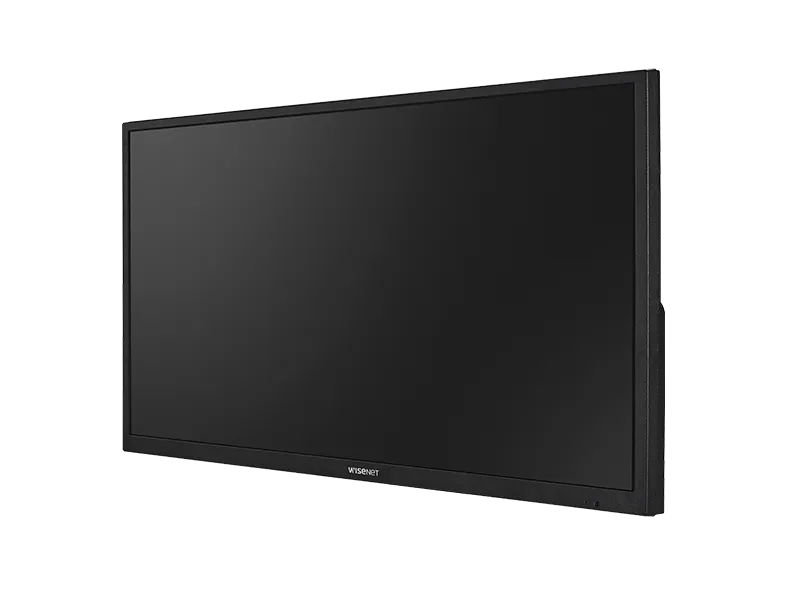

Hanwha - SMT-3234 - WiseNet 32" 1080p LED Monitor (Black)
Part number:
SMT-3234
Price:
Key features
- Support up to 1,920 x 1,080 resolution
- Contrast ratio 2250 :1（Typ）, 2000:1（Min）
- Fast response time 8ms
- Video input : HDMI, DVI, VGA, BNC
- Panel life 30,000 hours
- Weight : 6.2Kg
| Display | |
| Type | LED |
| Screen Size | 31.5" |
| Max. Resolution | 1,920 x 1,080 |
| Brightness | 300cd/㎡ |
| Contrast Ratio | 2250 :1（Typ）, 2000:1（Min） |
| Aspect Ratio | 0.672916667 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 million |
| Response Time | 8ms(G to G) |
| Video System | NTSC/PAL |
| Panel Life | 30,000 hours |
| Filter Type | 3D combfilter |
| Video | |
| Video > Connectors | VGA, DVI, HDMI, BNC |
| Composite Video | |
| Composite Video > Input | 1 port, BNC |
| VGA | |
| VGA > Connector | 1port Analog D-sub(15 pin), 1 port DVI-D |
| VGA > Available Format | 640 x 480@60Hz/66Hz/72Hz/75Hz (VGA), 800 x 600@56Hz/60Hz/72Hz/75Hz (SVGA), 1,024 x 768@60Hz/70Hz/75Hz (XGA), 1,152 x 864@75Hz, 1,280 x 720@60Hz, 1,280 x 800@60Hz, 1,280 x 1,024@60Hz/75Hz (SXGA), 1,360 x 768@60Hz,1,440 x 900@60Hz, 1,600 x 900@60Hz, 1,680 x 1,050@60Hz, 1,920 x 1,080@60Hz |
| HDMI | |
| HDMI > Connector | I port HDMI |
| HDMI > Available Format | 640 x 480p@60Hz, 720 x 480p@60Hz, 720 x 576p@50Hz, 1,280 x 720p@50Hz/60Hz, 1,920 x 1,080i@60Hz, 1,920 x 1,080p@60Hz |
| Audio | |
| Audio > Connector | 3.5mm Mini Phone Jack |
| Audio > Output Signal | Loop-through line level(PC only), Speakers : 2 x 2Watt |
| Application Support | Remote Controller |
| On Screen Display | |
| Functions | VESA™ DPM Compatible |
| Language | Chinese( Simplified), English, French, German, Spanish,Dutch,Russian,Arabic |
| Electrical | |
| Electrical > Input Voltage | AC 100 ~ 240V(50/60Hz) |
| Electrical > Power Consumption | <60W |
| Environmental | |
| Environmental > Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) |
| Environmental > Operating Humidity | 10% ~ 80% (non-condensing) |
| Mechanical | |
| Mechanical > Dimensions without Stand (WxHxD) | 728.8 x 433.1 x 51.4mm |
| Mechanical > Weight | 5.6kg |
| Mechanical > Cabinet Color | Black |
| Mechanical > VESA Mounts Interface | 100 x 100mm |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
