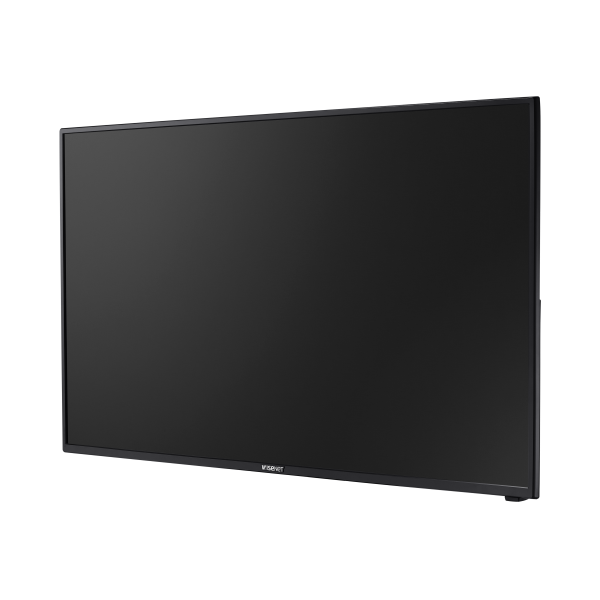

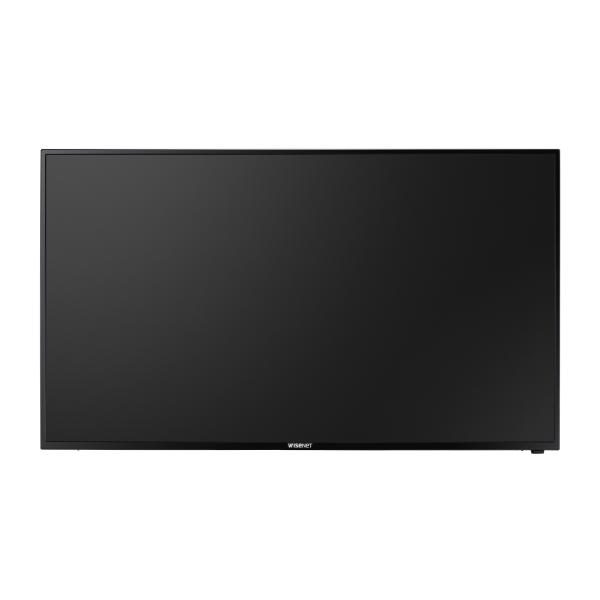

Hanwha - SMT-4343S - 43" Monitor Set (Monitor+Desktop Stand)
Part number:
SMT-4343S
Price:
43" Monitor Set (Monitor+Desktop Stand)
Features:
- Support up to 3840 x 2160 resolution
- Contrast ratio 800:1 (Min.), 1000:1 (Typ.)
- Fast response time 8ms (G to G)
- HDMI, DP, Audio connector
- Panel life 30,000 hours
| Display | ||||
| Screen Size | 42.5” | |||
| Max. Resolution | 3840x2160 | |||
| Brightness | 300 cd/m² | |||
| Contrast Ratio | 800:1(Min)1000:1(Typ) | |||
| Aspect Ratio | 16:09 | |||
| Viewing Angle (H/V) | 178°/178° | |||
| Display Color | 1.07G (8bits + FRC ) | |||
| Response Time | 8ms(G to G) | |||
| Panel Life | 30,000 hours | |||
| Interface | ||||
| HDMI | Connector | HDMI 1EA | ||
| Available Format | 640 x 480@60Hz/70Hz/72Hz/75Hz (VGA), 720 x 400@50Hz/60Hz/70Hz, | |||
| 720×576@50Hz, 800 x 600@56Hz/60Hz/72Hz/75Hz (SVGA), | ||||
| 832 x 624@75Hz, 1,024 x 768@60Hz/70Hz/75Hz (XGA), | ||||
| 1,152 x 864@60Hz/75Hz, 1,280 x 720@60Hz, 1,280 x 800@60Hz, | ||||
| 1,280 x 1,024@60Hz/75Hz (SXGA), 1,360 x 768@60Hz, | ||||
| 1,440 x 900@60Hz/75Hz, 1,600 x 900@60Hz, 1,680 x 1,050@60Hz, | ||||
| 1,920 x 1,080i@60Hz, 1,920 x 1,080p@60Hz,1920×1440@60Hz, 2560×1440@60Hz, 3840×2160p@30Hz/60Hz | ||||
| DP | Connector | DP 1EA | ||
| Available Format | 640 x 480@60Hz/70Hz/72Hz/75Hz (VGA), 720 x 400@50Hz/60Hz/70Hz, | |||
| 720×576@50Hz, 800 x 600@56Hz/60Hz/72Hz/75Hz (SVGA), | ||||
| 832 x 624@75Hz, 1,024 x 768@60Hz/70Hz/75Hz (XGA), | ||||
| 1,152 x 864@60Hz/75Hz, 1,280 x 720@60Hz, 1,280 x 800@60Hz, | ||||
| 1,280 x 1,024@60Hz/75Hz (SXGA), 1,360 x 768@60Hz, | ||||
| 1,440 x 900@60Hz/75Hz, 1,600 x 900@60Hz, 1,680 x 1,050@60Hz, | ||||
| 1,920 x 1,080i@60Hz, 1,920 x 1,080p@60Hz,1920×1440@60Hz, 2560×1440@60Hz,3840×2160p@30Hz/60Hz | ||||
| Audio | Connector | Audio Out | ||
| Output Signal | Loop-through line level(PC only), Speakers : 2x10W | |||
| Application Support | Remote Controller | |||
| On Screen Display (OSD) | ||||
| Functions | VESA™ DPM Compatible | |||
| Language | Korean, English, Pусский, Deutsch, Français, Españo, Italiano, Português, Chinese (Simplified,Traditional), Japanese, Arabic | |||
| General | ||||
| Electrical | Input Voltage | AC 100 ~ 240V(50/60Hz) | ||
| Power Consumption | <80W | |||
| Environmental | Operating Temperature | +32°F ~ +104°F (0 ~ +40°C) | ||
| Operating Humidity | 10% ~ 80% (non-condensing) | |||
| Mechanical | Dimensions without Stand | 38.07" x 22.04" x 2.89" (967.0 x 560.0 x 73.5mm) | ||
| Bezel Size | 8.6/16.4mm(Top/Bottom) | |||
| Weight without Stand | 16.75lb (7.6Kg) | |||
| Cabanet Color | Black | |||
| VESA Mounts Interface | 100*100mm /400*200mm | |||
| Accessory | Power cable, HDMI Cable, Remote Controller. Optional desktop stand SBM-4343. | |||
