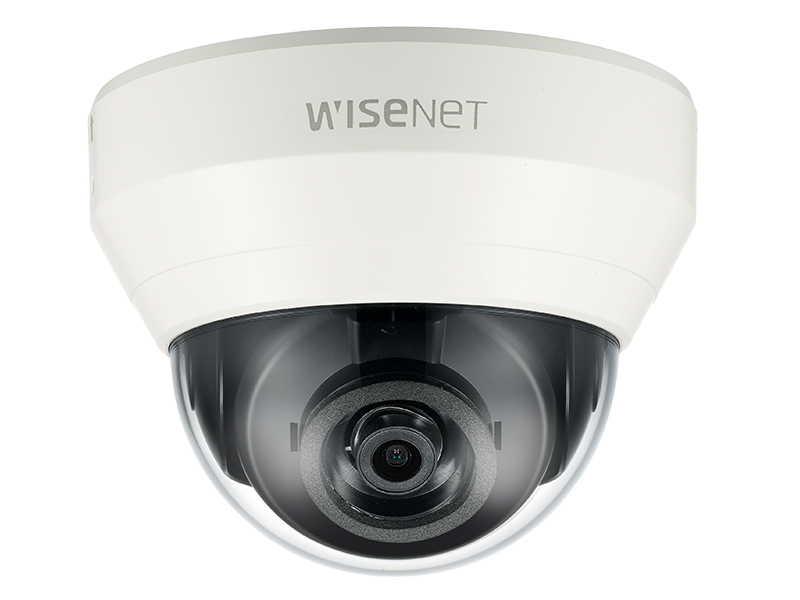

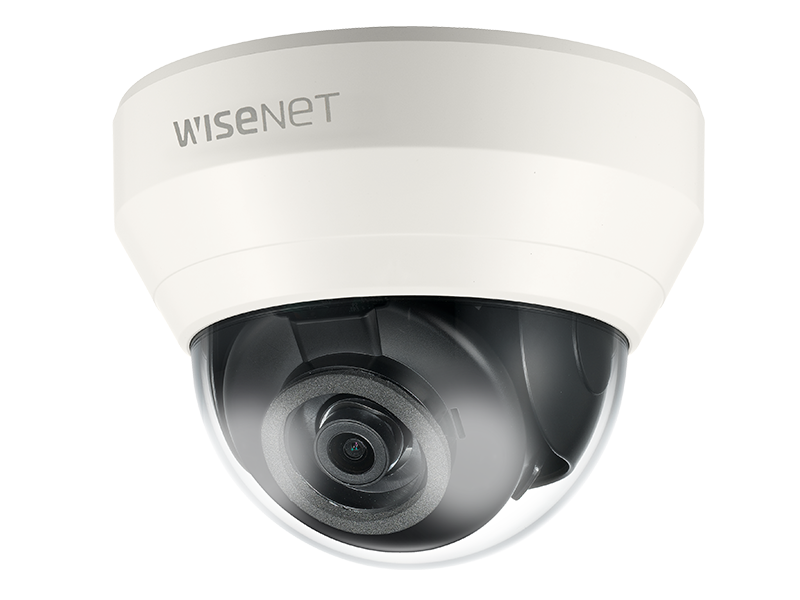

Samsung - SND-L6013 - 2MP Full HD Dome
Part number:
SND-L6013
Price:
The SND-L6013 indoor dome camera from Hanwha Techwin's Wisenet Lite series is perfect for high resolution Full HD monitoring. Featuring hallway view mode are ideal for hallways or retail stores. The wide angle 3.6mm lens captures an 86° horizontal field of view while the lens distortion correction provides a distortion-free image.
Features:
- 1080p @ 30fps
- Dual Codec H.264/MJPEG
- 3.6mm Fixed Lens
- Motion Detection, Tampering
- Hallway View, LDC
Video
| Imaging Device | 1/2.9" 2.19M CMOS |
| Effective Pixels | 1,984(H) x 1,105(V) |
| Minimum Illumination | Color : 0.15Lux (1/30sec, F1.8), 0.003Lux (2sec, F1.8) B/W : 0.15Lux (1/30sec, F1.8) |
Lens
| Focal Length (Zoom Ratio | 3.6mm xed |
| Max. Aperture Ratio | F1.8 |
| Angular Field ofView | H : 86.5˚ / V : 47.8˚ / D : 101.2˚ |
| Min. Object Distance | 0.5m (1.64ft) |
| Lens Type | Fixed |
| Mount Type | Board type |
Operational
| Camera Title | Off / On (Displayed up to 15 characters) |
| Day & Night | Electric Day & Night |
| Backlight Compensation | Off / BLC |
| Digital Noise Reduction | SSNR (Off / On) |
| Motion Detection | Off / On (4ea rectangular zones) |
| Privacy Masking | Off / On (6ea rectangular zones) |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC (Lens Distortion Correction) | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Flip / Mirror | Flip / Mirror/ Hallway view |
| Alarm Triggers | Motion detection, Tampering detection, SD card error, NAS error |
| Alarm events | File upload via FTP and E-mail, Localstorage recording at event, Notification via E-mail |
| Ethernet | RJ-45 (10/100BASE-T) |
| Resolution | 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 640 x 480, 320 x 240 |
