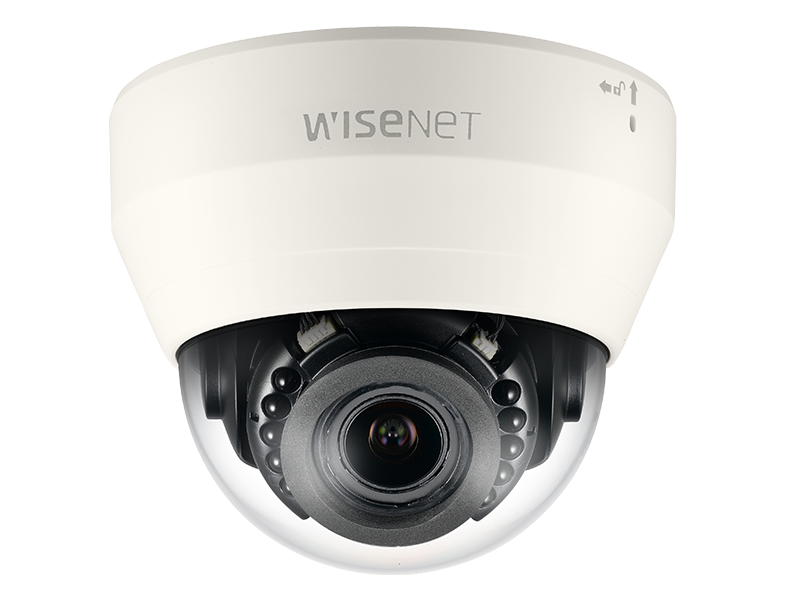

Samsung - SND-L6083R - 2MP Full HD IR Dome
Part number:
SND-L6083R
Price:
The SND-L6083R indoor dome camera from Hanwha Techwin's Wisenet Lite series is perfect for high resolution Full HD monitoring.The horizontal field of view can be adjusted from 32°-103° while the lens distortion correction ensures a natural, distortion-free image. The built-in IR LEDs provide illumination up to 49ft.
Features:
- 1080p @ 30fps
- Dual Codec H.264/MJPEG
- 4.3x Varifocal Lens
- Motion Detection, Tampering
- Built-in IR
- Hallway View, LDC
Video
| Imaging Device | 1/2.9" 2.19M CMOS |
| Effective Pixels | 1,984(H) x 1,105(V) |
| Minimum Illumination | Color : 0.095Lux (1/30sec, F1.4), 0.002Lux (2sec, F1.4) B/W : 0Lux (IR LED on) |
Lens
| Focal Length (Zoom Ratio | 2.8 ~ 12mm (4.3x) varifocal |
| Max. Aperture Ratio | F1.4 |
| Angular Field ofView | H : 103.8˚(Wide) ~ 32.4˚(Tele) / V : 53.7˚(Wide) ~ 18.4˚(Tele) / D : 121.9˚(Wide) ~ 37.1˚(Tele) |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Manual |
| Lens Type | DC auto iris |
| Mount Type | Board type |
Operational
| IRViewable Length | 15m (49.21ft) |
| Camera Title | Off / On (Displayed up to 15 characters) |
| Day & Night | True Day & Night |
| Backlight Compensation | Off / BLC |
| Digital Noise Reduction | SSNR (Off / On) |
| Motion Detection | Off / On (4ea rectangular zones) |
| Privacy Masking | Off / On (6ea rectangular zones) |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC (Lens Distortion Correction) | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Flip / Mirror | Flip / Mirror/ Hallway view |
| Alarm Triggers | Motion detection, Tampering detection, SD card error, NAS error |
| Alarm events | File upload via FTP and E-mail, Localstorage recording at event, Notification via E-mail |
| Ethernet | RJ-45 (10/100BASE-T) |
| Resolution | 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 640 x 480, 320 x 240 |
