Hanwha - SPE-110 - 1-Channel Network Video Encoder
Part number:
SPE-110
Price:
Encoder, 1CH H.264/MJPEG, 30fps @ 2MP or lower and 15 fps @ 4MP, AHD/CVI/TVI/CVBS compatible, RS-485/422 Interface, Pelco C when using CVBS or ACP up-coax protocol @ AHD, ONVIF protocol support, 12VDC/ PoE. Supports ECO. Stream. bandwidth reduction technology (Firmware v1.30+)
Features:
- Up to 4 MP resolution
- Max. 15fps@4MP, Max. 30fps@2MP
- Supports AHD, CVI, TVI, & CVBS video formats
- Motion detection, Video loss, Tampering
- H.264, MJPEG codec support
- ECO. Stream. bandwidth reduction technology per channel/profile (firmware v1.30+)
- Multiple streaming (Up to 3 profiles per channel)
- Coaxial control, 10/100 Base-T
| SPE-110N | SPE-110P | |
| VIDEO | ||
| Input Channel | 1CH BNC 1.0 Vp-p / 75Ω composite NTSC / PAL | |
| Input Signal & Resolution | CVBS, AHD (720p, 1080p, 4MP), CVI (720p, 2MP), TVI (720p, 2MP) - Auto / Manual detection | |
| OPERATIONAL | ||
| Motion Detection | Motion Detection | |
| Privacy Masking | Off / On (4ea rectangular zones) | |
| De-Interlacing | Support | |
| Alarm Trigger | Motion Detection, Video Loss, Tampering | |
| Alarm Events | File Upload Via FTP, E-mail | |
| Remote Control Interface | 1ea RS-485 / 422 | |
| RS-485 Protocol | SAMSUNG-T, PELCO-P / D | |
| Coaxial Control | NTSC / PAL : Pelco-C (Coaxitron) AHD : ACP (AHD Coax Protocol) | |
| NETWORK | ||
| Ethernet | 1 RJ-45 10/100 Base-T | |
| Video Compression Format | H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High MJPEG | |
| Resolution | 4M 1920x1080, 1280x720, 928x480, 704x480, 704x240, 352x240, 640x360 | 4M 1920x1080, 1280x720, 928x576, 704x576, 704x288, 640x360, 352x288 |
| Max. Framerate | - Main Stream 4MP : 15fps / CH, 1080p / 720p / WD1 / 4CIF / CIF : 30fps / CH(N), 25fps / CH(P) - Sub Stream WD1 / 4CIF : 12fps / CH, 2CIF / CIF / QVGA / QCIF : 30fps / CH(N), 25fps / CH(P) - JPEG : 2fps @ 1920x1080, 1280x720, 960H, D1 | |
| Bitrate Control Method | H.264 : CBR or VBR MJPEG : CBR | |
| Streaming Capability | Dual streaming (Up to 3 profiles per channel) | |
| IP | IPv4, IPv6 | |
| Protocol | TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL / TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, ONVIF, Bonjour | |
| Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) | |
| Streaming Method | Unicast / Multicast | |
| Max. User Access | 20 users at unicast mode | |
| Webpage Languages | 15 languages English, Korean, Chinese, Spanish, Portuguese, Russian, Japanese, French, German, Italian, Turkish, Polish, Dutch, Swedish, Czech | |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Supported Browser : Google Chrome 63, MS Edge 41, Mozilla Firefox 57 (Windows 64bit only), Apple Safari 11 (Mac OS X only), Microsoft IE11 | |
| Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API) | |
| Central Management Software & Recoder | SmartViewer, SSM, WiseNet Mobile Viewer, NVR (Hanwha Techwin P / X / Q series) | |
| ENVIRONMENTAL | ||
| Operating Temperature / Humidity | -10°C ~ +50°C (+14°F ~ +122°F) / 20% ~ 80% RH | |
| ELECTRICAL | ||

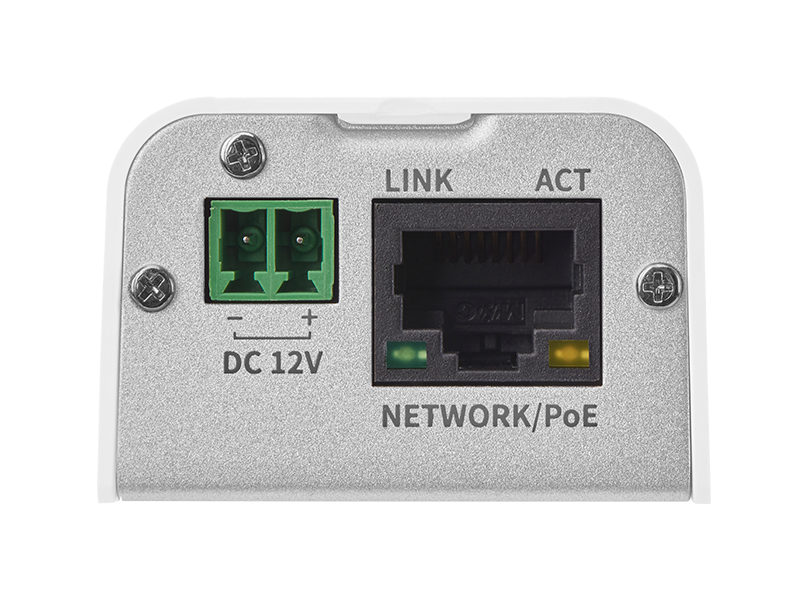

| Input Voltage / Current | DC12V, PoE(IEEE 802.3af ) | |
| Power Consumption | Max. 3.6 W (DC 12V), Max. 4.0W (PoE) | |
| MECHANICAL | ||
| Color / Material | White (Plastic), Silver (Metal) | |
| Dimension (WxHxD) | 43.0 x 29.2 x 94.15mm (1.693” x 1.150” x 3.706”) | |
| Weight | 104g (0.229 lb) | |
