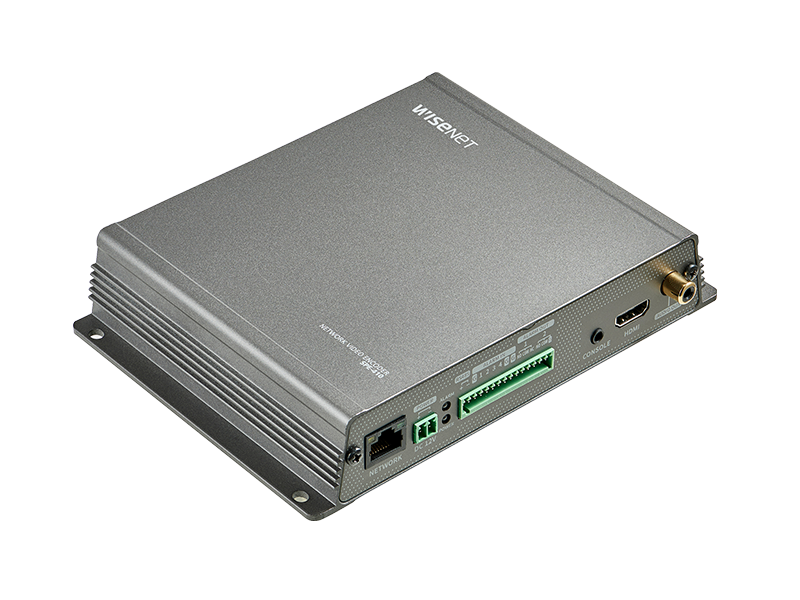

Hanwha - SPE-410 - WiseNet 4-Channel 4MP Network Video Encoder (NTSC)
Part number:
SPE-410
Price:
Encoder, 4CH H.264/MJPEG, 30fps @ 2MP or lower and 15 fps @ 4MP, AHD/CVI/TVI/CVBS compatible, RS-485/422 Interface, Pelco C when using CVBS or ACP up-coax protocol @ AHD, ONVIF protocol support, HDMI output, I/O 4/2, Audio in/out 4/1, 12VDC/ PoE. Supports ECO. Stream. bandwidth reduction technology (Firmware v1.30+ only).
Features:
- Supports AHD, CVI, TVI, & CVBS video formats
- Motion detection, Video loss, Tampering
- H.264, MJPEG codec support
- ECO. Stream. bandwidth reduction technology per channel/profile (firmware v1.30+)
- Multiple streaming (Up to 3 profiles per channel)
- Supports ACP/Pelco-C up-the-coax & RS-485/422 PTZ control interface
- HDMI Output
- Alarm & Audio I/O
| SPE-410N | SPE-410P | |
| VIDEO | ||

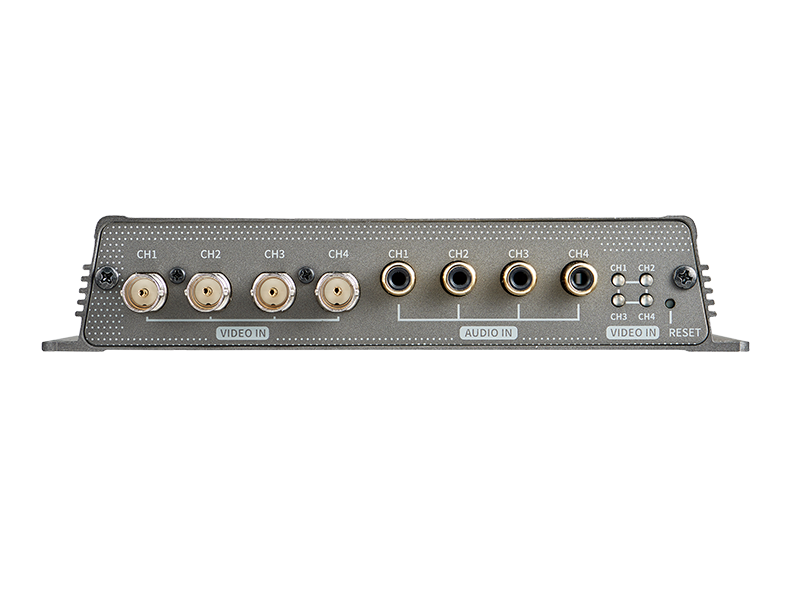

| Input Channel | 4CH BNC 1.0V pp / 75Ω composite NTSC | 4CH BNC, 1.0V pp / 75Ω composite PAL |
| Input Signal & Resolution | CVBS, AHD(2&4MP), CVI(2MP), TVI(2MP) Auto / Manual detection | |
| Video Out | 1 HDMI OUT (4 multi Image, 1920 x 1080) | |
| OPERATIONAL | ||
| Motion Detection | Off / On | |
| Privacy Masking | Off / On (4ea rectangular zones) | |
| Alarm I/O | 4 Input / 2 Output | |
| Alarm Trigger | Motion detection, Alarm input, Video loss, Tampering, Network disconnect | |
| Alarm Events | File upload via FTP, E-mail | |
| Audio I/O | 4 Line input / 1 Line output | |
| Remote Control Interface | 1ea RS-485 (Half duplex) | |
| RS-485 Protocol | SAMSUNG-T, PELCO-P/D | |
| Coaxial Control | NTSC/PAL : Pelco-C (Coaxitron), AHD : ACP (AHD Coax protocol) | |
| NETWORK | ||

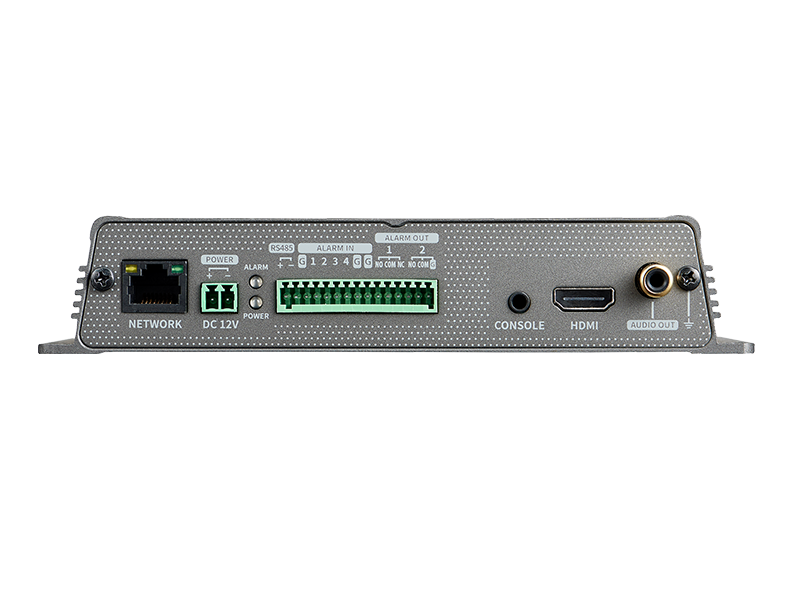

| Ethernet | 1 RJ-45 (10/100/1000 BASE-T) | |
| Video Compression Format | H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, JPEG | |
| Resolution | 4M, 1920x1080, 1280x720, 928x480, 928x240, 704x480, 704x240, 352x240 | 4M, 1920x1080, 1280x720, 928x576, 928x288, 704x576, 704x288, 352x288 |
| Max. Framerate | - Main Stream 4MP : 15fps/CH, 1080p/720p/WD1/4CIF/CIF : 30fps/CH - Sub Stream WD1/4CIF : 12fps/CH, 2CIF/CIF/QVGA/QCIF : 30fps/CH - MJPEG : 2fps @ 1920x1080, 1280x720,960H, D1 | - Main Stream 4MP : 15fps/CH, 1080p/720p/WD1/4CIF/CIF : 25fps/CH - Sub Stream WD1/4CIF : 12fps/CH, 2CIF/CIF/QVGA/QCIF : 25fps/CH - MJPEG : 2fps @ 1920x1080, 1280x720,960H, D1 |
| Video Quality Adjustment | H.264 : Target bitrate level control | |
| Bitrate Control Method | H.264 : CBR or VBR, MJPEG : CBR | |
| Streaming Capability | Dual streaming (Up to 3 Profiles per channel) | |
| Audio I/O | 4 Line Input / 1 Line Output | |
| Audio Compression Format | G.711 u-law | |
| IP | IPv4, IPv6 | |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, ONVIF, Bonjour | |
| Security | HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) | |
| Streaming Method | Unicast / Multicast | |
| Max. User Access | 10 users at Unicast Mode | |
| Webpage Languages | English, French, German, Spanish, Italian, Russian, Turkish, Polish, Dutch, Swedish, Portuguese, Czech, Chinese, Japanese | |
| Web Viewer | Supported OS : Windows 7, 8, 10, Mac OS X 10.10, 10.11, 10.12 - Non-plugin WebViewer Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Windows 64bit only), Apple Safari 9 (Mac OS X only) | |
| Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API) | |
| Central Management Software | Smart viewer, SSM, Wisenet mobile viewer, NVR (Hanwha Techwin, P / X / Q series) | |
| ENVIRONMENTAL | ||
| Operating Temperature / Humidity | -10°C ~ +50°C (+14°F ~ +122°F) / 20% ~ 80% RH | |
| ELECTRICAL | ||
| Input Voltage / Current | 12V DC, PoE(IEEE 802.3af ) | |
| Power Consumption | Max. 9.6W (12V, 0.8A) | |
| MECHANICAL | ||
| Color / Material | Dark Gray / Metal | |
| Dimensions (WxHxD) | 178.0x 34.0 x127.8.0mm (7.01" x 1.34" x 5.03") | |
| Weight | 2.25kg (4.96 lb) | |
