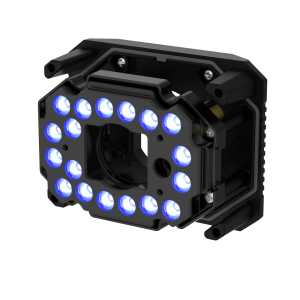

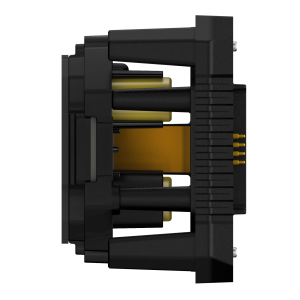

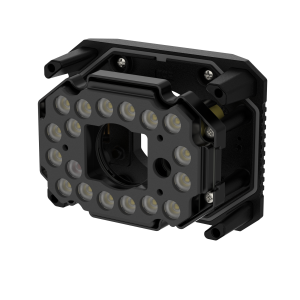

Hanwha - SPI-BBW0 - LED Module For 6mm Lens
Part number:
Price:
• Blue LED Module for 3MP BCR Camera
• Power Consumption: 6.9 W
• LED Quantity: 16EA
• IP66/IP67(camera and front cover must be assembled)
• Operating Temperature / Humidity: -40°C~+55°C / 0~95% RH
• Compatible Camera: TNS-7000M
• Compatible Lens: SLM-5M06
| Environmental | |
|---|---|
| Operating Temperature / Humidity | -40°C~+55°C / 0~95% RH |
| Storage Temperature / Humidity | -40°C ~ +60°C / Less than 95% RH |
| Certification | FCC, UL, CE, KC, IEC 62471, IP66/IP67 (camera and front cover must be assembled) |
| Electrical | |
| Input Voltage | 24 VDC ± 10% |
| Power Consumption | 6.9 W |
| Mechanical | |
| Product dimensions / weight | W101.2 x D53.8 x H78.2 / 200g |
| Supported products | TNS-7000M |
| LED | |
| Wavelength | 455nm |
| Quantity | 16EA |
| Angle | FWHM : 60° 10-% : 88° |
