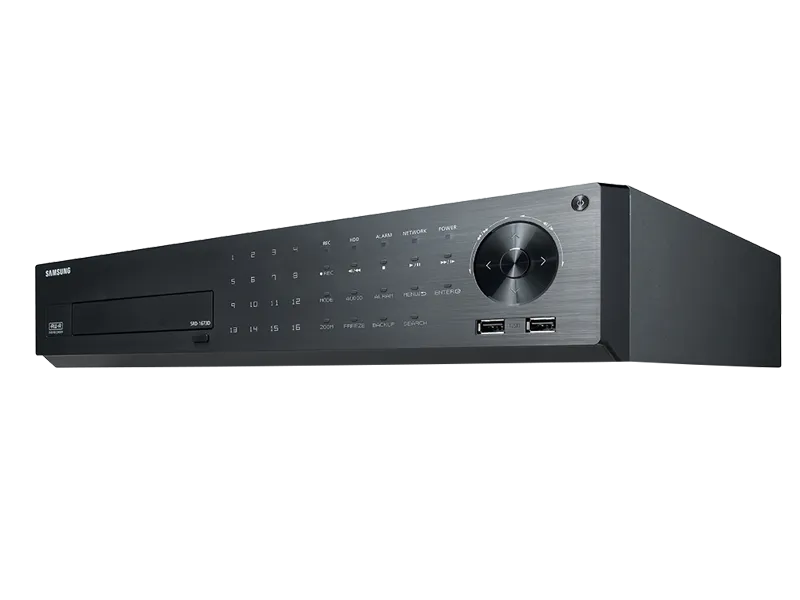

Hanwha - SRD-1673D-5TB - 16CH 4CIF Real-time H.264 Digital Video Recorder 5TB
Part number:
SRD-1673D-5TB
Price:
The next generation of Samsung’s legendary SRD DVR products add Full HD 1080p HDMI video out, support for 650TV lines analog cameras, and a sleek touch sensitive front panel, while retaining the familiar and easy to use graphical interface, smartphone support, coaxitron, tampering detection, and E-mail alerts. The SRD-1673D-5TB supports real-time, 30/25 frames per second recording and playback at 960 x 480 resolution over all channels. Network bandwidth has also been increased for robust remote viewing at high resolutions.
Features:
- 16CH Real-Time @ D1 and 960H resolution
- Max. resolution of 960 x 480
- Touch interface front panel
- Coaxitron support
- Smart phone support (Android/iOS)
- Full HD 1080p video out via HDMI
- 16CH audio inputs/1CH audio output
- Max. 4 internal HDDs
- Smart searching, Tampering detection
- Enhanced Network Bandwidth up to 32Mbps
| Video | |
| Inputs | 16 composite video 0.5–1 Vpp, 75 ohm automatic termination |
| Resolution | NTSC : 960 x 480, 720 x 480 / PAL : 960 x 576, 720 x 576 |
| Live | |
| Frame Rate | NTSC : 480fps / PAL : 400fps |
| Resolution | NTSC : 960 x 480, 720 x 480 / PAL : 960 x 576, 720 x 576 |
| Multi Screen Display | 1/4/7/9/13/16/16A/PIP/Sequence |
| Operating System | |
| Embedded | Linux |
| Compression | H.264 |
| Record Rate | NTSC : Up to 480fps @ 960x480 / PAL : Up to 400fps @ 960x576 NTSC : Up to 480fps @ 704x480 / PAL : Up to 400fps @ 704x576 NTSC : Up to 480fps @ 704x240 / PAL : Up to 400fps @ 704x288 NTSC : Up to 480fps @ 352x240 / PAL : Up to 400fps @ 352x288 |
| Recording | |
| Mode | NTSC : Manual, Schedule (Continuous/Event), Event (Pre/Post), Time lapse (1~30 fps) |
| Event | Video Loss, Motion (Level 1~10), Alarm, Tampering (Level 1~3) |
| Overwrite Modes | Continuous |
| Pre-alarm | Up to 30 sec (5,10,20,30 Sec) |
| Post-alarm | Up to 6 hour (5,10,20,30 sec,1,3,5,10,20 min,1,2,3,4,5,6 hour) |
| Search & Playback | |
| Search Modes | Date/time, Event, Back up, POS, Motion (* All search include preview function) |
| Playback Function | Fast Forward/Backward (x2,x4,x8,x16,x32,x64) * Backward Play with I-frame Only, Slow Forward/Backward (x1/2,x1/4,x1/8) Step Forward/Backward (x2, x4,x8,x16,x32,x64) * Backward Play with I-frame Only |
| Network (IPv4) | |
| Transmission Speed | 4CIF/2CIF/CIF(120/240/480fps NTSC, 100/200/400fps PAL) |
| Bandwidth | Up to 32Mbps |
| Bandwidth Control | Selectable |
| Stream | H.264(4CIF/2CIF/CIF Selectable) |
| Max. Remote Users | Search(3)/Live Unicast(10)/Live Multicast(20) |
| Protocol Support | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP |
| Monitoring | Net-I Viewer, Smart viewer, Webviewer |
| Storage | |
| Internal HDD | Up to 4 SATA HDDs |
| External (e-SATA Interface) | Up to 2 expansion bay (Model : SVS-5R/5E) |
| DVD Writer (Back up) | Yes |
| USB (Back up) | 2 USB Ports |
| File Format (Back up) | BU (DVR Player), EXE (Include Player) |
| Monitors | |
| VGA | 1 VGA (1280x720, 1280x1024, 1920x1080) |
| HDMI | 1 HDMI (1280x720, 1280x1024, 1920x1080) |
| Spot (Composite | Digital spot (2CH) * Incldued OSD on screen, Multi mode support (1CH) |
