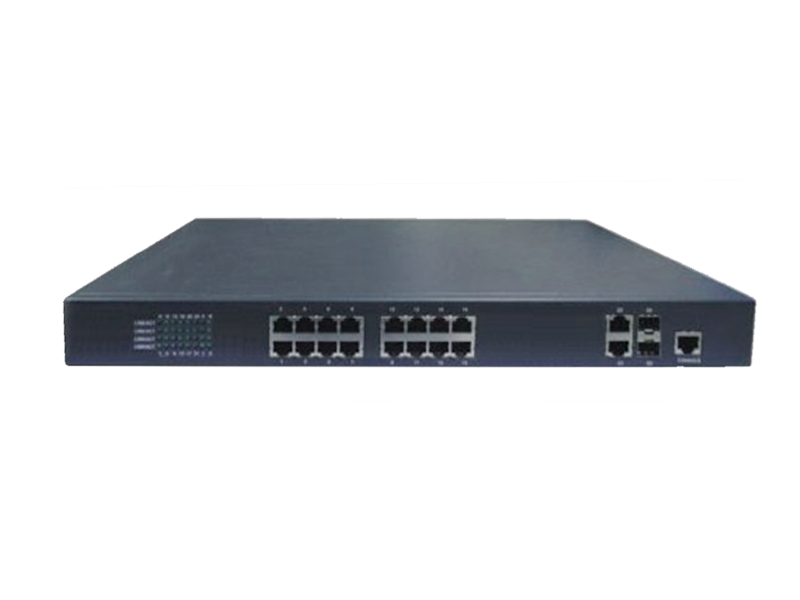

The SWT-P-162-240 is an unmanaged Power over Ethernet (PoE) switch designed for wiring LAN (WAN) access points, IPsecurity cameras, VoIP telephone and other low port density installations. The SWT-P-162-240 provides 15W POE power,full load on all ports. The SWT-P-162-240 is a case-shaped device with a chassis of 1U high. It provides (16) 10/100Base-TXports and 2 RJ45 and 2 SFP full gigabit ports (10/100/1000Base-T or 1000Base-X).
- Conforms to IEEE802.3, IEEE 802.3u
- Provides (16) 10/100Base-TX ports and 2 combo ports (10/100/1000Base-T or 1000Base-X)
- High back-plane bandwidth 5Gbps
- IEEE802.3x Flow control
- Plug and play operation
- Surge protection for power port and data ports
- EMI standards complies with FCC, CE class B
| Fixed Port | (16) 10/100Base-TX ports (2) Combo ports (10/100/1000Base-T or 1000Base-X) (2) Shared SFP port |
| LED Indicators | PWR, PoE, Link/Act VLAN LED. |
| Thermal Methods | Built-in Noiseless Fan |
| Switching Capacity | 7.2 G. |
| MAC Address Table | 8K |
| Traffic Control | IEEE 802.3x full-duplex flow control |
PoE
| PoE Port | (16) 10/100Base-TX ports |
| PoE Standard | IEEE802.3af, per port 15.3W |
ENVIRONMENTAL
| Operating Temperature | 0°C~40°C - 32°F~113°F |
| Storage Temperature | -10°C~70°C - 14°F~158°F |
| Operating Humidity | 10%~90% (non-condensing) |
ELECTRICAL
| Input Voltage | 100V~240V AC, 50/60Hz |
| Power Consumption | 250W |
MECHANICAL
| Dimensions (WxHxD) | 13.5” x 1.65” x 7.2” |
| Weight | 7.4 lbs |
