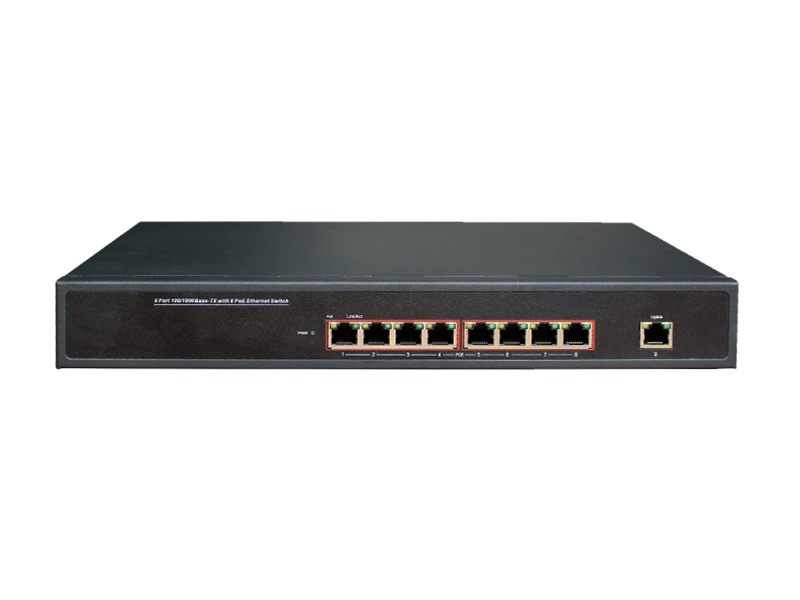

Hanwha - SWT-P-81-240 - 8 Port PoE+ Switch
Part number:
SWT-P-81-240
Price:
The SWT-P-81-240 is an unmanaged Power over Ethernet (PoE) switch designed for wiring LAN (WAN) access points, IPsecurity cameras, VoIP telephone and other low port density installations. The SWT-P-81-240 provides 30W POE power,full load on all ports. The SWT-P-81-240 is a case-shaped device with a chassis of 1U high. It provides (8) 10/100/1000Base-TX ports and (1) 10/100/1000 uplink port.
- Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at
- Provides (8) 10/100/1000Base-TX ports and (1) 10/100/1000 Uplink port
- High back-plane bandwidth 18Gbps
- IEEE802.3x Flow control
- Plug and play operation
- Surge protection for power port and data ports
- EMI standards complies with FCC, CE class B
| Fixed Port | (8) 10/100/1000 Base-TX ports – (1) 10/100/1000 Uplink port |
| LED Indicators | PWR, PoE, Link/Act VLAN LED |
| Thermal Methods | Built-in Noiseless Fan |
| Switching Capacity | 18G |
| MAC Address Table | 4K |
| Traffic Control | IEEE 802.3x full-duplex flow control |
PoE
| PoE Port | (8) 10/100/1000 Base-TX ports |
| PoE Standard | IEEE802.3af, IEEE802.3at, per port 30W |
ENVIRONMENTAL
| Operating Temperature | 0°C~40°C - 32°F~113°F |
| Storage Temperature | -10°C~70°C - 14°F~158°F |
| Operating Humidity | 10%~90% (non-condensing) |
ELECTRICAL
| Input Voltage | 100V~240V AC, 50/60Hz |
| Power Consumption | 250W |
MECHANICAL
| Dimensions (WxHxD) | 13.5” x 1.65” x 7.2” |
| Weight | 5.8 lbs |
