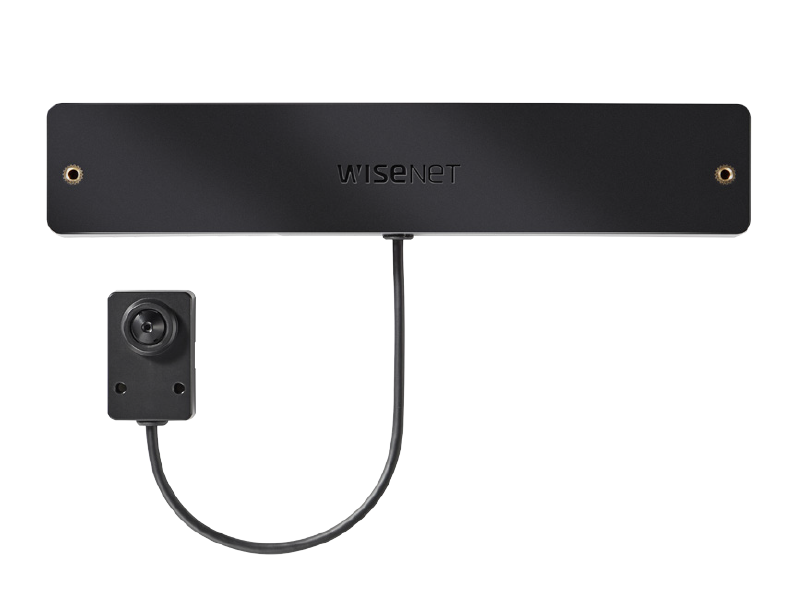

PVM camera powered by Wisenet 5, 1080p (1920x1080), micro HDMI output, 16:9 aspect ratio, face detection display for visual deterrent, customizable text overlay, 4.6mm fixed lens(73.8°H), 150dB WDR, H.265/H.264/MJPEG, WiseStream II compression technology, micro SD/SDHC/SDXC, bi-directional audio, hallway view mode. To be mounted with the SBP-300NM, not included
Features:
- 2 Megapixel (1920 x 1080) resolution
- HDMI Output (1080p Full HD)
- True WDR (150dB)
- Face detection overlay
- Text overlay and blinking "Recording in progress"
- Discreet design fot public view monitoring
- 60fps@all resolutions, 0.06 Lux@F2.5 (Color)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- SD/SDHC/SDXC memory slot (256GB)
- Hallway view, WiseStream II , LDC support
- Bi-directional audio support, Alarm I/O (1ea)
- PoE, 12V DC
- To be mounted with the SBP-300NM, not included
VIDEO
| Imaging Device | 1/2.8" 2M CMOS |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M pixels |
| E ective Pixels | 1,945(H) x 1,097(V) 2.13M pixels |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.06 Lux (1/30sec, F2.5) |
| S / N Ratio | 50dB |
| VideoOut | Micro HDMI (Max. 1920 x 1080 60fps) |
LENS
| Focal Length (Zoom Ratio) | 4.6mm |
| Max. Aperture Ratio | F2.5 |
| Angular Field of View | H : 73.8˚ / V : 39.6˚ / D : 86.8˚ |
| Min.Object Distance | 0.98ft (0.3m) |
| Lens/ Mount Type | Pinhole / Board-in type |
OPERATIONAL
| Camera Title | Off / On (Displayed up to 85 characters) - English / Numeric / Special characters - Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution - Text Blinking, Pre-configured Text "Recording in progress" |
| Day & Night | Auto (Electrical) / Color / B/W |
| Backlight Compensation | O / BLC / HLC (Masking / Dimming) / WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (O / On) |
| Digital Noise Reduction | SSNRV (2D+3D noise lter) (O / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto (input from fog detection) / Manual |
| Motion Detection | Off / On (8ea, 8point Polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal zones) - Color : Gray / Green / Red / Blue / Black / White - Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual/Indoor / Outdoor (included Mercury & Sodium) |
| Contrast | Level adjustment |
| LDC (Lens Distortion Correction) | O / On (5 Levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | O / On, Hallway view : 90˚/270˚ |
| Video & Audio Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter/Exit, (Dis) Appear, Face detection, Motion detection, Digital auto tracking |
| Face Detection | - Up to 6 faces detectable in real time - Detection distance : up to 50ft (15.24m) - Overlay color changeable : Blue / Red / Green / Orange / Black |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Motion detection, Video & audio analytics, Network disconnect |
| Alarm Events | File Upload Via FTP, E-mail, Noti cation via E-mail, Localstorage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| Pixel Counter | Support |
