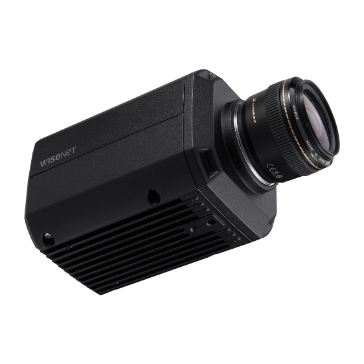

Hanwha - TNB-9000 - 8K Network Box Camera
Part number:
TNB-9000
Price:
Hanwha’s 8K UHD features a 43.3mm full-frame CMOS Image Sensor for 33 Megapixel output. High frame rate of 15fps@8K, 20fps@24MP, 30fps@15MP, 60fps@4K ensures you don't miss the action. Compatible with specific Canon EF mount Lenses. Features intelligent video & audio analytics based on AI (Object detection/classification, Attribute, BestShot). Micro HDMI (1080p 30fps) Video Output for installation or monitoring. Efficient video streaming with H.265/H.264 with WiseStreamⅡ support, as well as MJPEG. Single Micro SD slot (Up to 256GB) for edge recording. Network connectivity includes RJ-45 & SFP slot (100/1000Mbps), HPoE (IEEE802.3bt, Class5), 12VDC options. Integration capabilities include ONVIF, alarm I/O & RS-485 controls. Simple Focus & MicroUSB port (optional Wi-Fi dongle) allows easy and perfect focus control.
Features:
- 8K / 33MP (7680 x 4320) / 8M (3840 x 2160) resolution
- 15fps @ 8K / 20fps @ 24MP/ 30fps @ 15MP / 60fps @ 4K
- H.265 / H.264 / MJPEG Triple Codec encoding
- Simple focus, Day & Night (ICR)
- AI-based Intelligent video & audio analytics with object detection & classification for people, faces, vehicles & license plate
- micro SD/SDHC/SDXC memory slot
- Bi-directional audio support
- DPTZ channel for easy monitoring
- ONVIF Profile S/G/T
- HPoE (IEEE802.3bt, Class5), 12VDC power options
- Lens & outdoor housing are optional accessories
- Compatible lenses include:
- EF 24mm f/1.4L II USM
- EF 28mm f/1.8 USM
- EF 35mm f/1.4L II USM
- EF 40mm f/2.8 STM
- EF 50mm f/1.2L USM
- EF 50mm f/1.4 USM
- EF 50mm f/1.8 STM
- EF 85mm f/1.2L II USM
- EF 85mm f/1.8 USM
- EF 100mm f/2 USM
- EF 200mm f/2.8L II USM
- EF 16-35mm f/2.8L III USM
- EF 70–200mm f/2.8L USM (*Lens bracket must be used)
- EF f/4-5.6L IS USM
- EF f4.5-5.6L IS II USM
Video
| Imaging Device | 43.3mm Full-frame CMOS |
| Min. Illumination | Color : 0.015Lux(F1.4, 1/30sec) |
| B/W : 0.0015Lux(F1.4, 1/30sec) | |
| Video Out | HDMI: 1080p@30fps |
Lens
| Angular Field of View | Canon 24mm f1.4L, Auto-Iris (EF 24mm f/1.4L II USM) : Horizontal field of view: 8K 62.1° |
| Canon 35mm f1.4L, Auto-Iris (EF 35mm f/1.4L II USM) : Horizontal field of view: 8K 44.5° | |
| Canon 50mm f1.4, Auto-Iris (EF 50mm f/1.4 USM) : Horizontal field of view: 8K 31.6° | |
| Canon 85mm f1.2L, Auto-Iris (EF 85mm f/1.2L II USM) : Horizontal field of view: 8K 19.2° | |
| Canon 100mm f2.0, Auto-Iris (EF 100mm f/2 USM) : Horizontal field of view: 8K 16.1° | |
| Canon 70-200mm f2.8L, Auto-Iris, Vari Focal (EF 70-200mm f/2.8L USM) : Horizontal field of view: 8K 23.2° ~ 8.3° | |
| Focus Control | Autofocus |
| Lens Type | Canon EF mount Lens |
| Mount Type | Canon EF mount |
| Optional Lens | Canon 24mm f1.4L, Auto-Iris (EF 24mm f/1.4L II USM) |
| Canon 35mm f1.4L, Auto-Iris (EF 35mm f/1.4L II USM) | |
| Canon 50mm f1.4, Auto-Iris (EF 50mm f/1.4 USM) | |
| Canon 85mm f1.2L, Auto-Iris (EF 85mm f/1.2L II USM) | |
| Canon 100mm f2.0, Auto-Iris (EF 100mm f/2 USM) | |
| Canon 70-200mm f2.8L, Auto-Iris, Vari Focal (EF 70-200mm f/2.8L USM) |
Operational
| Camera Title | Displayed up to 75 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, DWDR |
| Digital Noise Reduction | SSNRⅤ |
| Motion Detection | 8ea, 8point polygonal zones (in 8K resolution only) |
| Privacy Masking | 6ea, Rectangular |
| - Color: Grey/Black/White | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5 ~ 1/12,000sec) |
| Analytics | - Classified object type : Person/Face/Vehicle/License plate with attributes, BestShot per object |
| - Analytics events based on AI engine : object detection, Directional detection, Enter/Exit, Loitering, Virtual line | |
| - Analytics events : Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification | |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| Handover | |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
Network
| Ethernet | RJ-45(10/100/1000 BASE-T), SFP slot(100/1000Mbps) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(10 users) / Multicast |
| Multiple streaming(Up to 3 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Device Certificate(Hanwha Techwin Root CA) | |
| Application Programming Interface | ONVIF Profile S/G/T |
| SUNAPI(HTTP API) |
Environmental & Electrical
| Operating Temperature / Humidity | 0°C ~ +45°C(32°F ~ +122°F) / Less than 90% RH |
| Storage Temperature / Humidity | -40°C ~ +65°C(-40°F ~ +149°F) / Less than 90% RH |
| Certification | EMC |
| EN 50130-4, EN 55032 Class A, EN 61000-6-3, EN 61000-3-2, | |
| EN 61000-3-3, EN 61000-6-1, FCC Part 15 Subpart B Class A, | |
| IC ICES-003 Class A, | |
| Safety | |
| UL 60950-1 |
Mechanical
| Color / Material | Black / Aluminum |
| Product dimensions / weight | 120(W)x118.1(H)x179(D)mm, 2.1Kg(4.55 lb) |
