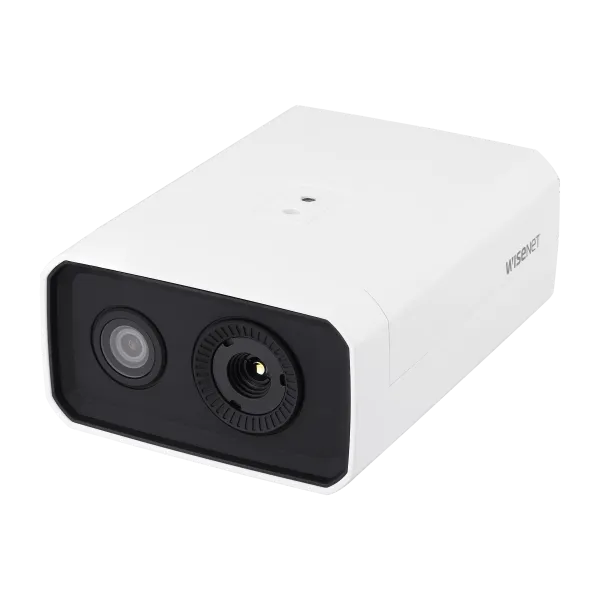

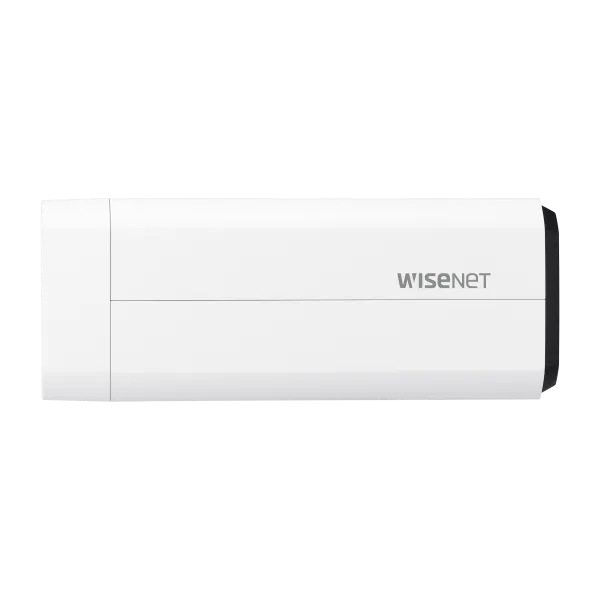

Wisenet T network indoor body temperature detection camera (uncooled), dual sensor camera with QVGA thermal (320x240) & 2MP (1920x1080) visible video outputs, built-in 4.7mm fixed lens (50°) (thermal), 4mm fixed lens (87.6°) (visible), AI Face & temperature detection, Estimated Body Temperature Mode: +30°C~+45°C (+86°F~+113°F), accuracy ±0.5°C (±0.9°F) / with blackbody ±0.3°C (±0.54°F), normal radiometric mode temperature detection range from (-4˚F~+266˚F), triple codec H.265/H.264/MJPEG with Wisestream II, 150dB WDR, USB and CVBS port for easy installation, advanced video analytics, micro SD, DIS, PoE+/12VDC
Features:
- FDA 510K registered medical device
- QVGA (320 x 240) radiometric thermal camera & 2MP visible camera
- Estimated Body Temperature Mode / Radiometric Thermal Camera Mode
- Built-in 4.7mm (thermal) & 4mm (visible) fixed fixed lenses
- 30fps@all resolutions(H.265, H.264, MJPEG)
- H.265, H.264, MJPEG triple codec support
- WiseStream II support
- Temperature Detection Range: Estimated body temperature mode : 30~45?C(86?F~113?F)
- Temperature Detection Range: Normal mode: -20~+130?C(-4?F~+266?F)
- Intelligent Analytics (Radiometric Mode Only) : Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Audio detection, Temperature detection
- Intelligent Analytics (EBT mode) : Temperature detection, Blackbody error
- 2-way bi-directional audio & Alarm I/O support
- SD / SDHC / SDXC memory slot (Maximum 256GB)
- Operating temperature:
- EBT mode: +10?C~+35?C(+50?F~+95?F) / Less than 95% RH
- Normal mode: -10?C~+55?C(+14?F~+131?F) / Less than 95% RH
- PoE+, 12V DC
| VIDEO | THERMAL | VISIBLE |
| Imaging Device | Uncooled micro bolometer | 1/2.8” 2MP CMOS |
| Effective Pixels | 320(H) x 240(V) | 1945(H) x 1109(V) |
| NETD | < 60mK | - |
| Pixel Size | 12㎛ | - |
| Minimum Illumination | - | Color : 0.05 lux (F1.6, 1/30sec) B/W : 0.005 lux (F1.6, 1/30sec) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480 for installation USB : Micro USB Type B, 1280 x 720 for installation | |
| LENS | ||
| Focal Length | 4.7mm fixed focal | 4mm fixed focal |
| Maximum Aperture Ratio | F1.0 | F1.6 |
| Angular Field of View | H : 50.0˚, V : 36.4˚, D : 65.3˚ | H : 87.6, V : 46.4°, D : 104.5° |
| Minimum Object Distance | 1m (3.28ft) | - |
| Focus Control | Fixed | Fixed |
| OPERATIONAL | ||
| Camera Title | Displayed up to 85 characters | |
| Day & Night | - | Auto (ICR) |
| Backlight Compensation | - | BLC, WDR, SSDR |
| Wide Dynamic Range | - | ExtremeWDR (150dB) |
| Digital Noise Reduction | - | SSNRV |
| Digital Image Stabilization | Support (built-in gyro sensor) | |
| Motion Detection | 8ea, 8point polygonal zones | |
| Privacy Masking | 32ea, polygonal zones / - Color: Grey/Green/Red/Blue/Black/ White / Mosaic | |
| Gain Control | - | Low / Middle / High |
| White Balance | - | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | - | Support |
| Electronic Shutter Speed | - | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, applied to both channels | |
| Analytics | Normal mode : Motion detection, Enter/Exit, Tampering, Virtual line, Audio detection, Temperature detection EBT mode : Temperature detection, Blackbody error | |
| Alarm I/O | Input 1ea / Output 2ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail / Notification via e-mail / SD/SDHC/ SDXC or NAS recording at event triggers / Alarm output / Handover (Normal mode only) / Audio playback / Beep alarm (EBT mode only) | |
| Audio In | Selectable (microphone in/line in) Supply voltage : 2.5VDC(4mA), Input impedance : 2K Ohm | |
| Audio Out | Line out, Maximum output level : 1Vrms | |
| Color Palettes | Estimated Body Temperature Mode - (Thermal Face detection) : Whitehot Estimated Body Temperature Mode (Visible Face detection) & Normal mode : Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom | |
| RADIOMETRY | ||
| Temperature detection range | Estimated Body Temperature Mode : 30°~45°C (86°F~113°F) Normal mode : -20°~+130°C (-4˚F~+266˚F) | - |
| Temperature accuracy | Estimated Body Temperature Mode : ±0.5°C (±0.9°F) / ±0.3°C (±0.54°F) with blackbody Normal mode : -20°C~130°C (-4˚F~266˚F) /±5˚C≤100˚C, ±20% >100˚C (±9˚F≤212˚F, ±20%>212˚F | |
| RADIOMETRY | THERMAL | VISIBLE |
| Temperature detection | 3ea rectangular (Normal Mode) | - |
| Additional | Hybrid palettes (Normal mode), Spot temperature reading (Normal mode) | - |
| NETWORK | ||
| Ethernet | Metal Shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265 / H.264 : Main / Baseline / High, MJPEG | |
| Resolution | Stretched: 1280x960, 640x480 Native: 320 x 240 | x 1080, 1280x1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, x 480, 640 x 480, 640 x 360, x 240 |
| Maximum Framerate | H.265/H.264: 30fps MJPEG : 30fps | H.265/H.264 : 60fps MJPEG : 30fps |
| Smart Codec | WiseStream Ⅱ Manual(5ea area), WiseStream Ⅱ | |
| Video Quality Adjustment | H.264/H.265 : Target bitrate level control, MJPEG : Target bitrate level control | |
| Bitrate Control | H.264/H.265 : CBR or VBR, MJPEG : VBR | |
| Streaming | Unicast (20 users) / Multicast Multiple streaming (Up to 6 profiles) | |
| Audio Compression | G.711 u-law /G.726 Selectable /G.726(ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps / AAC-LC : 48Kbps at 16KHz | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/ v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP | |
| Security | HTTPS(SSL) login authentication / Digest login authentication / IP address filtering User access log / 802.1X authentication (EAP-TLS, EAP-LEAP) Device certificate (Hanwha Techwin Root CA) | |
| Edge Storage | Micro SD/SDHC/SDXC slot, maximum 256GB, record 1 / 2 sensors | |
| Application Programming Interface | ONVIF Profile S/T, SUNAPI(HTTP API) | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Web Viewer | Supported OS: Windows 10, Mac OS X 10.13 or later Recommended Browser: Google Chrome Supported Browser: MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OS X only) | |
| Memory | 4608MB RAM, 512MB Flash | |
| ENVIRONMENTAL | ||
| Operating Temperature / Humidity | Estimated Body Temperature Mode : +10°C~+35°C(+50°F~+95°F) / Less than 95% RH Normal mode : -10°C~+55°C(+14°F~+131°F) / Less than 95% RH | |
| Storage Temperature / Humidity | -30°C~+60°C (-22°F~+140°F) / Less than 95% RH | |
| Certification | FDA 510K registered medical device | |
| ELECTRICAL | ||
| Input Voltage | PoE+ (IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE+ : Maximum 17.0W, typical 12.5W 12VDC: Maximum 14.5W, typical 11.0W | |
| MECHANICAL | ||
| Color / Material | White / Aluminum | |
| RAL Code | RAL9003 | |
| Product dimensions / Weight / Mounting | x 75 x 188.5mm (5.31” x 2.95” x 7.42”) 1.7kg (3.77lb) 1/4 - 20 UNC top & bottom | |
