In challenging weather (fog, smoke, rain) or lighting conditions (complete darkness, backlighting), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. Wisenet T series thermal cameras provide high contrast images based on temperature differences between the object and background, to easily detect incidents.
The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting.

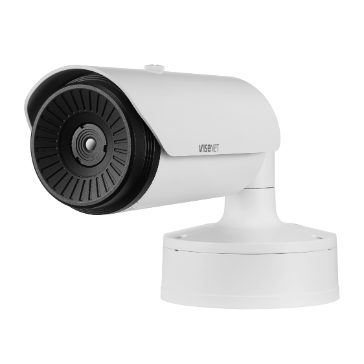

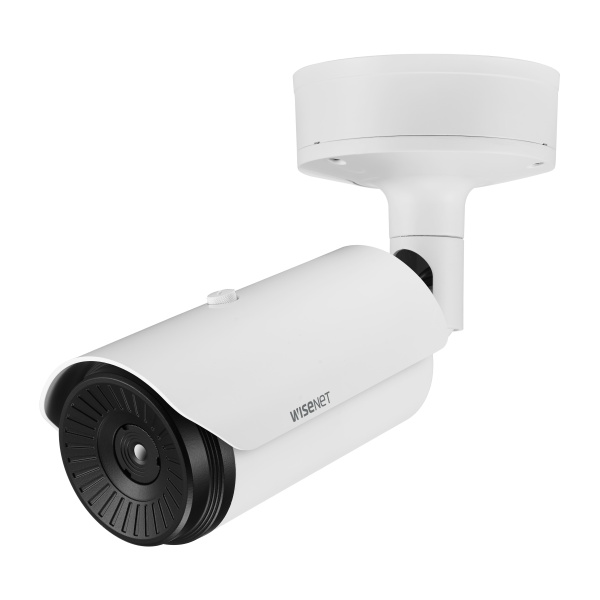

The TNO-3010T is a cost-effective QVGA thermal bullet network camera with a built-in 2.7mm lens providing human detection at up to 135m, and detection of vehicles at up to 345m. Additional specifications include H.265/H.264, WiseStream II, Intelligent Analytics, bi-directional audio, SDXC edge storage, PoE, 24VAC, 12DC, IP66, NEMA4X, IK10, and a wide operating temperature range.
※Please note: Wisenet Thermal Cameras are subject to the Export Administration Regulations (EAR), administered by the Department of Commerce (DOC), Bureau of Industry and Security (BIS). Please contact the BIS Office of Exporter Services for information on export regulations.
Please contact Hanwha Techwin for information on purchasing thermal cameras. Thermal cameras may not be available for purchase by all customers or shipped to all locations. Hanwha Techwin America restricts the purchase and shipment to Ultimate Consignee and Purchaser locations in the United States.
Features:
- Thermal QVGA (320 x 240) resolution
- Built-in 2.7mm fixed lens
- 30fps@ll resolutions(H.265, H.264, MJPEG)
- H.265, H.264, MJPEG triple codec support
- WiseStream II support
- 7 selectable color palettes
- Tampering, Loitering, Directional / Virtual Fence Line detection, Enter/ Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection
- 2-way bi-directional audio & Alarm I/O support
- SD / SDHC / SDXC memory slot (Maximum 256GB)
- Operating temperature -40°F ~ +140°F
- PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10
| VIDEO | |
| Imaging Device | Uncooled micro bolometer |
| NETD | < 60mK |
| Pixel Size | 12㎛ |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480 for installation USB : Micro USB Type B, 1280x720 for installation |
| LENS |
| Focal Length (Zoom Ratio) | 2.7mm fixed focal | 4.7mm fixed focal | 13.7mm fixed focal |
| Maximum Aperture Ratio | F1.0 | ||
| Angular Field of View | H :92.0˚, V :65.5˚, D :125.7˚ | H :50.0˚, V :36.4˚, D :65.3˚ | H :16.0˚, V :12.0˚, D :20.0˚ |
| Minimum Object Distance | 0.3m (0.98ft) | 1m (3.28ft) | 8m (26.25ft) |
| Focus Control | Fixed | ||
| OPERATIONAL |
| Camera Title | Displayed up to 85 characters |
| Digital Image Stabilization | Support (Built-in gyro sensor) |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones
|
| Color palettes | Whitehot, Blackhot, Rainbow, Rainbow 2, Sepia, Red, Iron, Custom Flip, Mirror, Hallway view (90˚/270˚) |
| Video Rotation | |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection Input 1ea / Output 2ea |
| Alarm I / O | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover |
| Audio In | Selectable (microphone in/line in) Supply voltage : 2.5VDC (4mA), Input impedance : 2K Ohm |
| Audio out | Line out, Maximum output level : 1Vrms |
| NETWORK |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/Baseline/High, MJPEG |
| Resolution | 320 x 240 |
| Maximum Framerate | H.265/H.264 : Maximum 30fps MJPEG : Maximum 30fps |
| Smart Codec | Manual (5ea area), WiseStream II |
| Bitrate Control | H.264/H.265 : CBR or VBR MJPEG : VBR |
| Streaming | Unicast (20 users) / Multicast Multiple streaming (Up to 10 profiles) |
| Audio Compression | G.711 u-law /G.726 Selectable
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC : 48Kbps at 16KHz |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication (EAP-TLS, EAP-LEAP), Device Certificate(Hanwha Techwin Root CA) |
| Security | |
| Edge Storage | Micro SD/SDHC/SDXC slot maximum capacity 256GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI (HTTP API) Wisenet open platform |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser : Google Chrome Supported Browser : MS Internet Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari(Mac OS X only) |
| Memory | 1024MB RAM, 256MB Flash |
| ENVIRONMENTAL |
| Operating Temperature / Humidity | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
| ELECTRICAL |
| Input Voltage | PoE (IEEE802.3af, Class3), 24VAC, 12VDC |
| Power Consumption | PoE : Maximum 8.7W, typical 7.5W 12VDC : Maximum 7.8W, typical 6.7W 24VAC : Maximum 9.2W, typical 8.0W |
| MECHANICAL |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø147.51x375.3mm(5.81x14.78") / 2512g(5.538lb) |
