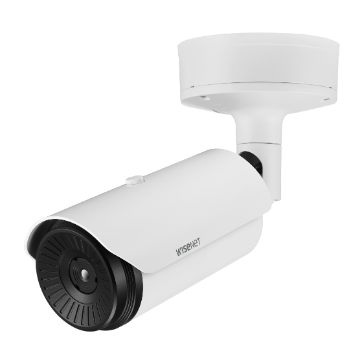

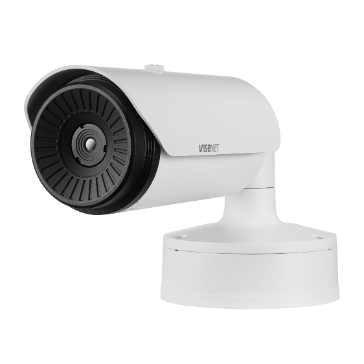

QVGA Thermal camera, Max. 320 x 240 resolution support, built-in 13.7mm fixed lens, H.265, H.264, MJPEG codec, Max. 30fps@all resolutions, full video and audio analytics, temperature detection, shock detection, micro SD Max. 256GB, Hallway View, WiseStreamII, PoE, 24VAC, 12VDC / IP66, NEMA4X, IK10 This product is subject to the Thermal agreement.
Features:
- Thermal QVGA (320 x 240) resolution
- Built-in 2.7mm fixed lens
- 30fps@ll resolutions(H.265, H.264, MJPEG)
- H.265, H.264, MJPEG triple codec support
- WiseStream II support
- 7 selectable color palettes
- Tampering, Loitering, Directional / Virtual Fence Line detection, Enter/ Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection
- 2-way bi-directional audio & Alarm I/O support
- SD / SDHC / SDXC memory slot (Maximum 256GB)
- Operating temperature -40°F ~ +140°F
- PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10
| VIDEO | |
| Imaging Device | Uncooled micro bolometer |
| NETD | < 60mK |
| Pixel Size | 12㎛ |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480 for installation USB : Micro USB Type B, 1280x720 for installation |
| LENS |
| Focal Length (Zoom Ratio) | 2.7mm fixed focal | 4.7mm fixed focal | 13.7mm fixed focal |
| Maximum Aperture Ratio | F1.0 | ||
| Angular Field of View | H :92.0˚, V :65.5˚, D :125.7˚ | H :50.0˚, V :36.4˚, D :65.3˚ | H :16.0˚, V :12.0˚, D :20.0˚ |
| Minimum Object Distance | 0.3m (0.98ft) | 1m (3.28ft) | 8m (26.25ft) |
| Focus Control | Fixed | ||
| OPERATIONAL |
| Camera Title | Displayed up to 85 characters |
| Digital Image Stabilization | Support (Built-in gyro sensor) |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones
|
| Color palettes | Whitehot, Blackhot, Rainbow, Rainbow 2, Sepia, Red, Iron, Custom Flip, Mirror, Hallway view (90˚/270˚) |
| Video Rotation | |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection Input 1ea / Output 2ea |
| Alarm I / O | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover |
| Audio In | Selectable (microphone in/line in) Supply voltage : 2.5VDC (4mA), Input impedance : 2K Ohm |
| Audio out | Line out, Maximum output level : 1Vrms |
| NETWORK |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/Baseline/High, MJPEG |
| Resolution | 320 x 240 |
| Maximum Framerate | H.265/H.264 : Maximum 30fps MJPEG : Maximum 30fps |
| Smart Codec | Manual (5ea area), WiseStream II |
| Bitrate Control | H.264/H.265 : CBR or VBR MJPEG : VBR |
| Streaming | Unicast (20 users) / Multicast Multiple streaming (Up to 10 profiles) |
| Audio Compression | G.711 u-law /G.726 Selectable
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC : 48Kbps at 16KHz |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication (EAP-TLS, EAP-LEAP), Device Certificate(Hanwha Techwin Root CA) |
| Security | |
| Edge Storage | Micro SD/SDHC/SDXC slot maximum capacity 256GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI (HTTP API) Wisenet open platform |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser : Google Chrome Supported Browser : MS Internet Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari(Mac OS X only) |
| Memory | 1024MB RAM, 256MB Flash |
| ENVIRONMENTAL |
| Operating Temperature / Humidity | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
| ELECTRICAL |
| Input Voltage | PoE (IEEE802.3af, Class3), 24VAC, 12VDC |
| Power Consumption | PoE : Maximum 8.7W, typical 7.5W 12VDC : Maximum 7.8W, typical 6.7W 24VAC : Maximum 9.2W, typical 8.0W |
| MECHANICAL |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø147.51x375.3mm(5.81x14.78") / 2512g(5.538lb) |
