In challenging weather (fog, smoke, rain) or lighting conditions (complete darkness, backlighting), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. Wisenet T series radiometric thermal cameras provide high contrast images based on temperature differences between the object and background, to easily detect incidents. The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting.

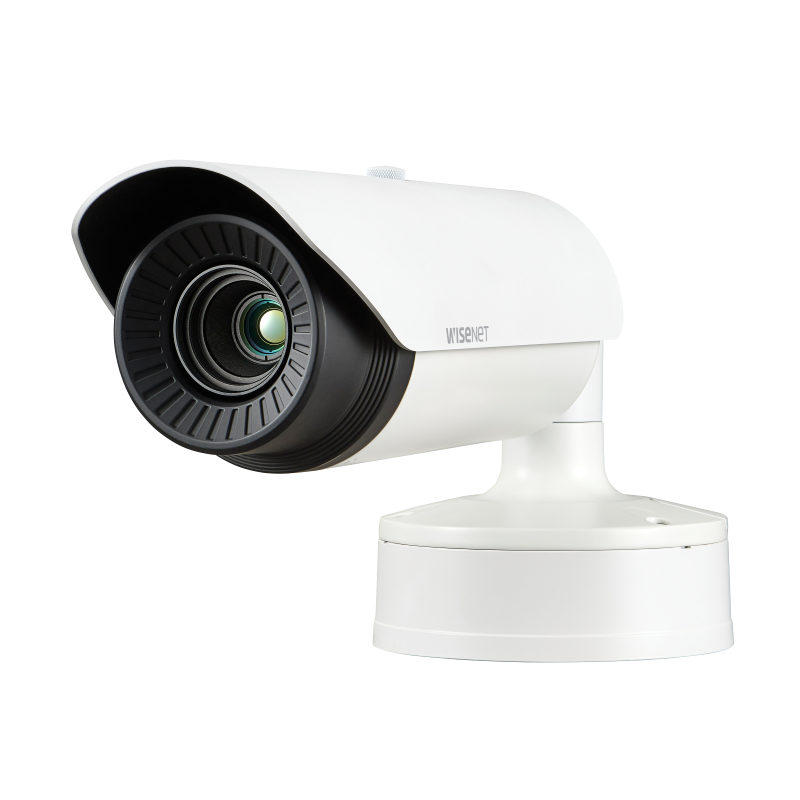

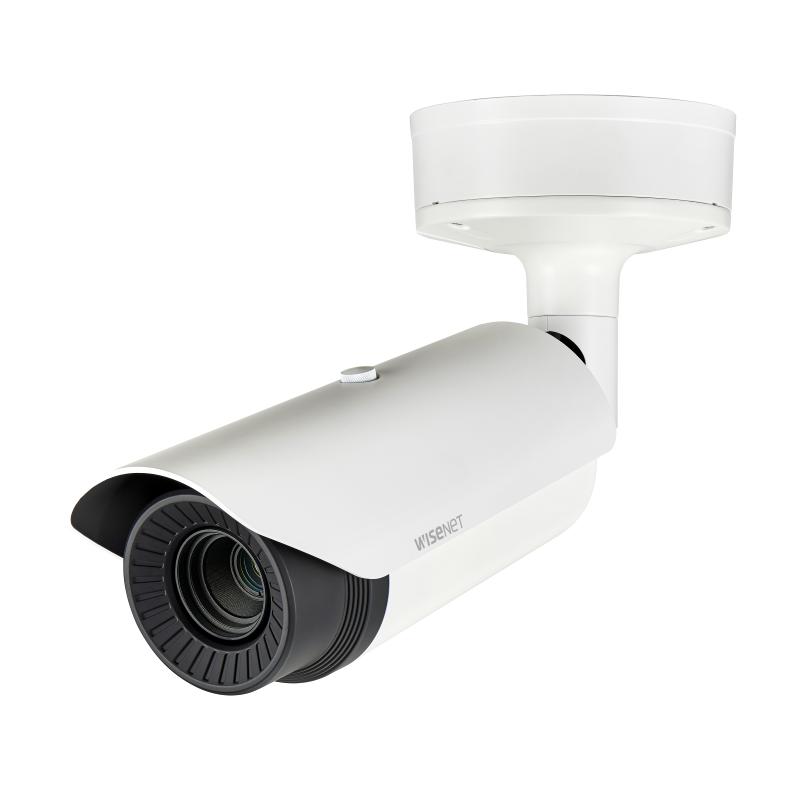

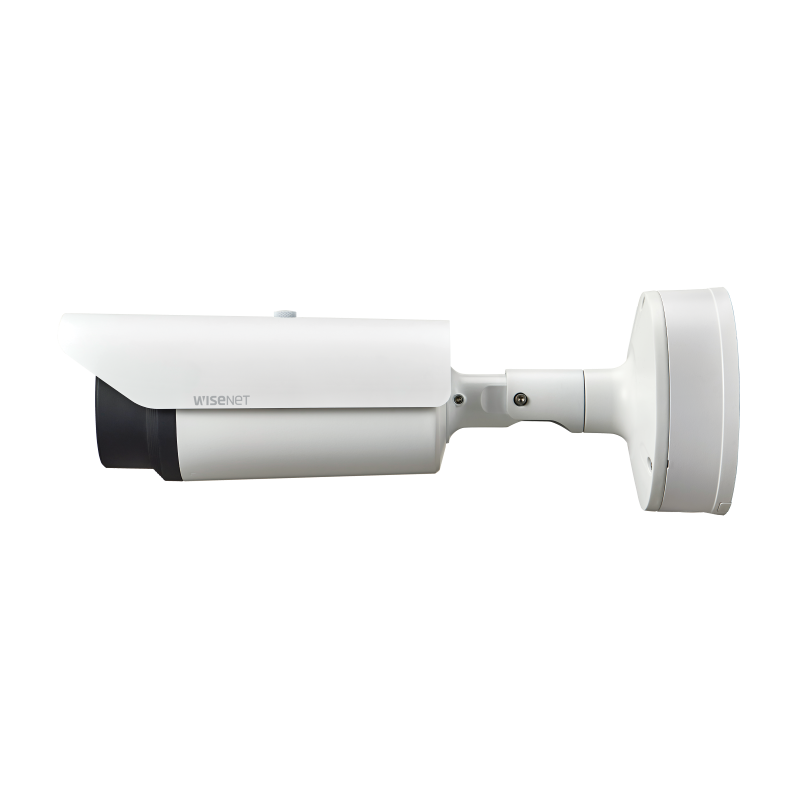

The TNO-4030TR is a VGA radiometric thermal bullet network camera with a built-in 13mm lens providing human detection at up to 459m, and detection of vehicles at up to 1,173m. Additional specifications include H.265/H.264, WiseStream II, Intelligent Analytics, bi-directional audio, SDXC edge storage, PoE, 24VAC, 12DC, IP66, NEMA4X, IK10, and a wide operating temperature range. The Wisenet thermal radiometric camera can detect temperatures within the range of -20˚C to +130˚C. Alarms are generated and sent to users in case the temperature of three user-defined areas in the monitoring screen is above or below a defined value or the temperature increases or decreases beyond the preset range. In addition, the screen displays average/minimum/maximum temperature of the three areas for more thorough temperature measurement. Spot temperature readings can also be performed. Using a hybrid color palette, the selected temperature range can be displayed in vivid colors, helping users observe monitoring areas with greater ease. Temperatures out of the defined range is expressed as a white hot color, ensuring the camera covers the entire monitoring areas.
Features:
- High resolution radiometric thermal VGA (640 x 480) resolution
- Built-in 13mm fixed lens
- 30fps@all resolutions(H.265, H.264, MJPEG)
- H.265, H.264, MJPEG triple codec support
- WiseStream II support
- 7 selectable color palettes
- User-defined area & spot temperature monitoring and alerting with average/minimum/maximum display
- Tampering, Loitering, Directional / Virtual Fence Line detection, Enter/ Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection
- 2-way bi-directional audio & Alarm I/O support
- SD / SDHC / SDXC memory slot (Maximum 256GB)
- Operating temperature -40°F ~ +140°F
- PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10
Video
| Imaging Device | Uncooled micro bolometer |
| NETD | ＜50mK |
| Pixel Size | 17㎛ |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| USB : Micro USB Type B, 1280x720 for installation |
Lens
| Focal Length (Zoom Ratio) | 13mm fixed focal |
| Max. Aperture Ratio | F1.0 |
| Angular Field of View | H: 48.6° / V: 36.4 / D: 61.6° |
| Min. Object Distance | 5m(16.40ft) |
| Focus Control | Fixed |
Operational
| Camera Title | Displayed up to 85 characters |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| - Mosaic | |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection |
| Alarm I/O | Input 1ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| Handover | |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
Radiometry
| Temperature detect range | -20˚C~130˚C(-4˚F~266˚F) |
| Temperature accuracy | ±5℃(≤100℃), ±20%(>100℃) |
| Temperature detection | 3ea rectanguler |
| Additional | Hybrid palettes, Spot temperature reading |
Network
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(20 users) / Multicast |
| Multiple streaming(Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G/T |
| SUNAPI(HTTP API) | |
| Wisenet open platform |
Environmental & Electrical
| Operating Temperature / Humidity | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
Mechanical
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions / weight | Φ101.97x401.8mm (4.01x15.82") / 3,124g (6.89lb) |
