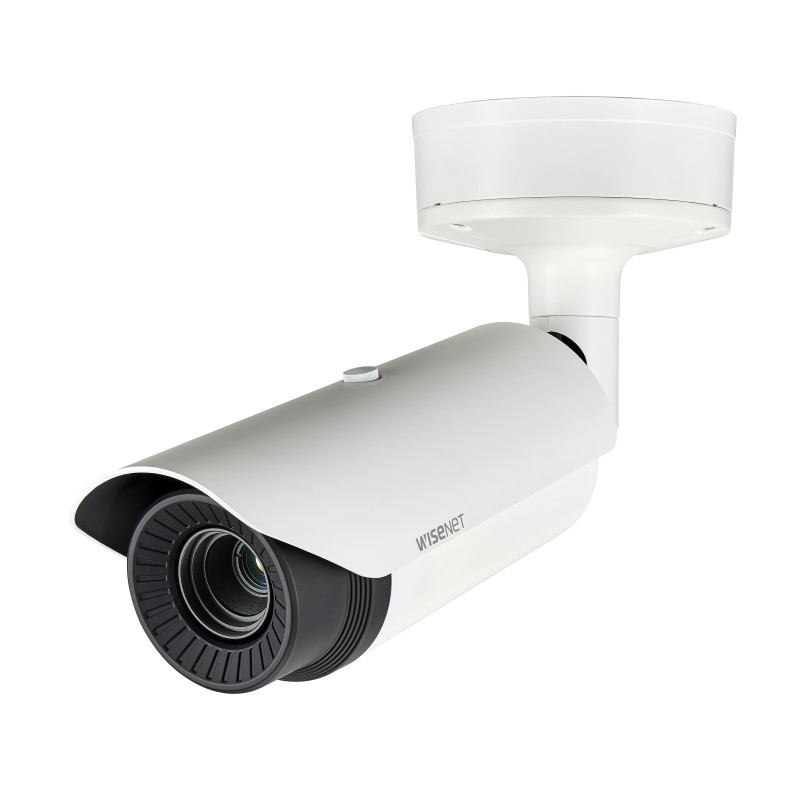

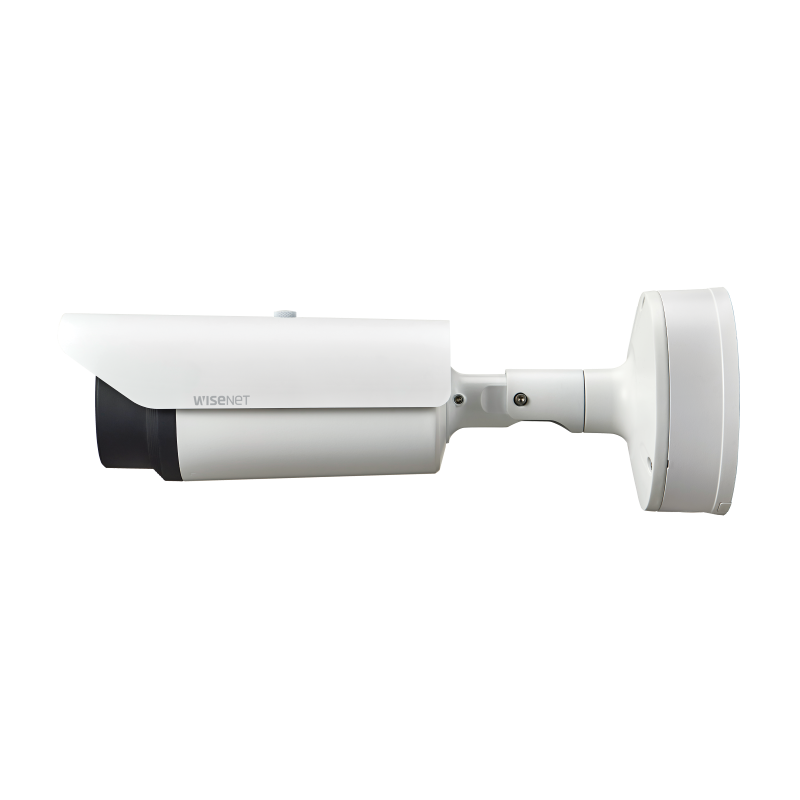

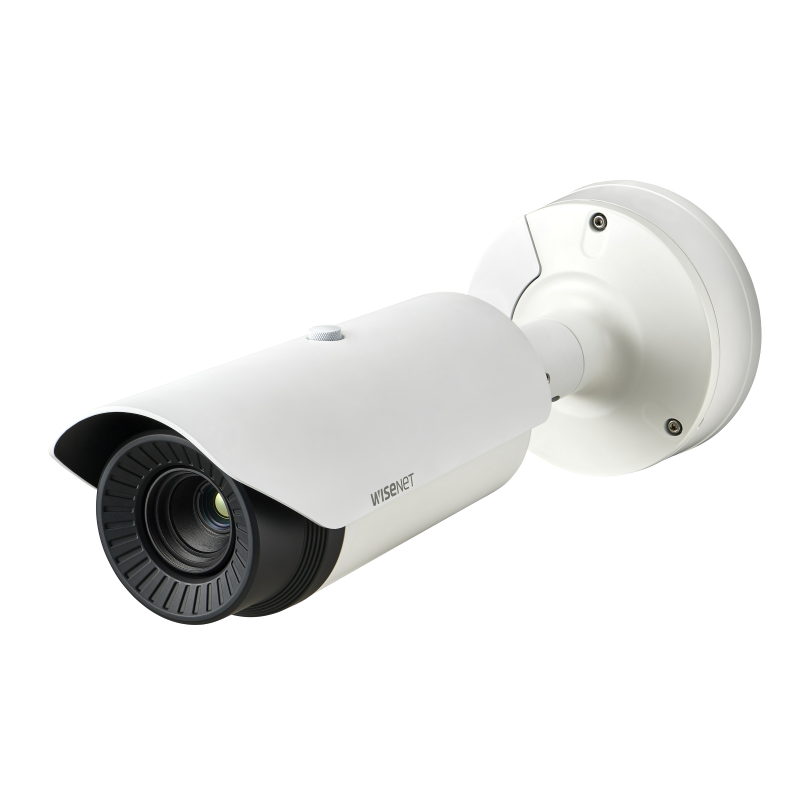

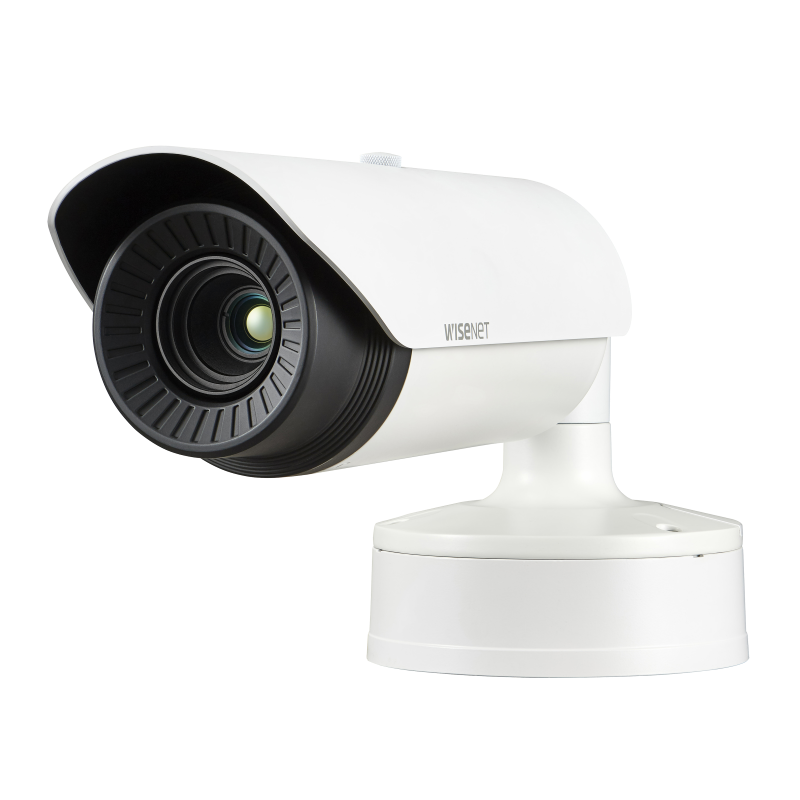

In challenging weather (fog, smoke, rain) or lighting conditions (complete darkness, backlighting), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. Wisenet T series thermal cameras provide high contrast images based on temperature differences between the object and background, to easily detect incidents. The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting. The TNO-4040T is a VGA thermal bullet network camera with a built-in 19mm lens providing human detection at up to 674m, and detection of vehicles at up to 1,714m. Additional specifications include H.265/H.264, WiseStream II, Intelligent Analytics, bi-directional audio, SDXC edge storage, PoE, 24VAC, 12DC, IP66, NEMA4X, IK10, and a wide operating temperature range.
Features:
- High resolution thermal VGA (640 x 480) resolution
- Built-in 19mm fixed lens
- 30fps@all resolutions(H.265, H.264, MJPEG)
- H.265, H.264, MJPEG triple codec support
- WiseStream II support
- Tampering, Loitering, Directional / Virtual Fence Line detection, Enter/ Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection
- 2-way bi-directional audio & Alarm I/O support
- SD / SDHC / SDXC memory slot (Maximum 256GB)
- Operating temperature -40°F ~ +140°F
- PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10
Video
| Imaging Device | Uncooled micro bolometer |
| NETD | ＜50mK |
| Pixel Size | 17㎛ |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| USB: Micro USB Type B, 1280x720 for installation |
Lens
| Focal Length (Zoom Ratio) | 19mm fixed focal |
| Max. Aperture Ratio | F1.0 |
| Angular Field of View | H: 32° / V: 24.3° / D: 39.2° |
| Min. Object Distance | 11m(36.09ft) |
| Focus Control | Fixed |
Operational
| Camera Title | Displayed up to 85 characters |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| - Mosaic | |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection |
| Alarm I/O | Input 1ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| Handover | |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
| Color Palettes | Whitehot, Blackhot, Rainbow, Sepia, Red, Iron, Wisenet |
Network
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(20 users) / Multicast |
| Multiple streaming(Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G/T |
| SUNAPI(HTTP API) | |
| Wisenet open platform |
Environmental & Electrical
| Operating Temperature / Humidity | -40°C ~ +60°C (-40°F ~ +140°F) / 90% RH 이하 |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / 90% RH 이하 |
| Certification | IP66, IK10, NEMA4X |
Mechanical
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions / weight | Φ101.97x401.8mm(4.01x15.82") / 3175g(7.01 lb) |
