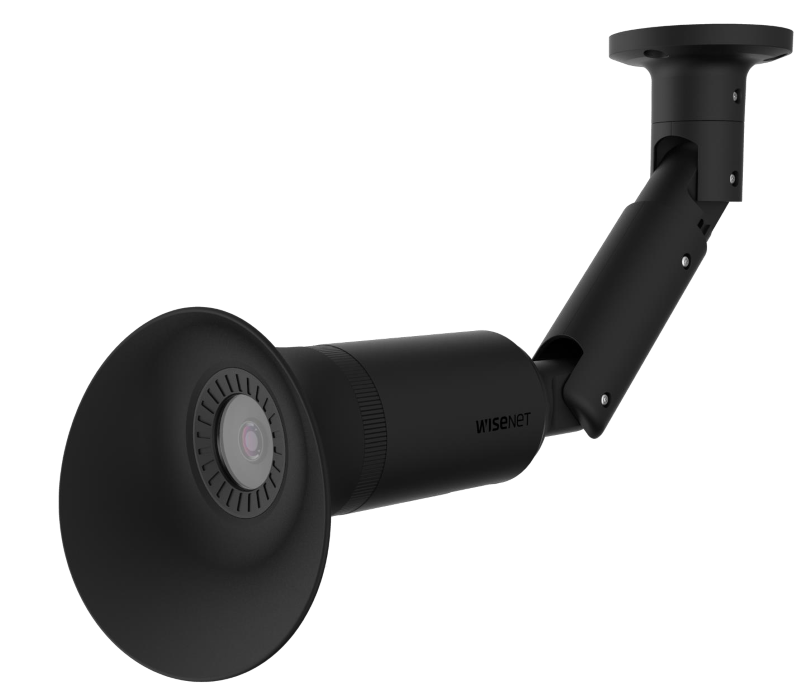

Hanwha - TNO-6010M - Front Facing Mobile Camera
Part number:
TNO-6010M
Price:

The TNO-6010M is a Wisenet T powered by Wisenet 5 network front-facing mobile camera designed for in-vehicle use. It features 2 MP resolution @60fps, 2.8mm fixed lens (113.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR/HLC, USB port & analog video out for easy installation, advanced video analytics and sound classification, True D/N, single SD card, fog detection, DIS, PoE, IP66, IK10 NEMA 4X, -30°C ~ +55°C (-22°F ~ +131°F)

This camera is designed to withstand being mounted inside a vehicle, with adjustable length & dual joint design to adapt to any vehicle.



Features:

  • Lens hood to prevent windshield glare
  • Adjustable length & dual joint design to adapt to vehicle
  • Serration and Nylock for release prevention
  • 2 Megapixel (1920 x 1080) resolution
  • 60fps@all resolutions (H.265 / H.264)
  • 0.04Lux@F2.0 (Color), 0.004Lux@F2.0 (B/W)
  • Built-in 2.8mm fixed lens
  • H.265, H.264, MJPEG codec supported, Multiple streaming, WiseStream II support
  • Day & Night, WDR (150dB)
  • Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Enter/Exit, (Dis)Appear, Audio detection, Shock detection, Face detection, Digital auto tracking, Sound classification
  • Motion detection, Handover
  • DIS with built-in gyro sensor
  • SD/SDHC/SDCX memory slot (Maximum 256GB)
  • IP66, IK10, NEMA4X
  • PoE, LDC, M12 connector

VIDEO

Imaging Device1/2.8" 2 MP CMOS
Total Pixels1,945(H) x 1,097(V) 2.16M
Effective Pixels1,945(H) x 1,097(V) 2.13M
Scanning SystemProgressive Scan
Minimum IlluminationColor : 0.04Lux (F2.0), B/W : 0.004Lux (F2.0)
S / N Ratio50dB
Video out, for installationUSB : Micro USB type B, 1280 x 720, for installation, CVBS 1.0Vpp/75Ω, 720 x 480

LENS

Focal Length (Zoom Ratio)2.8mm fixed
Maximum Aperture RatioF2.0
Angular Field of ViewH : 113.7˚ / V: 61.5˚ / D: 134.5˚
Focus ControlManual
Lens / Mount TypeFixed / Board-in type

PAN / TILT / ROTATE

Pan / Tilt / Rotate Range360˚ / 1st tilt adjustment 0˚ to 120˚, 2nd tilt adjustment -30˚ to 90˚ / ±90
