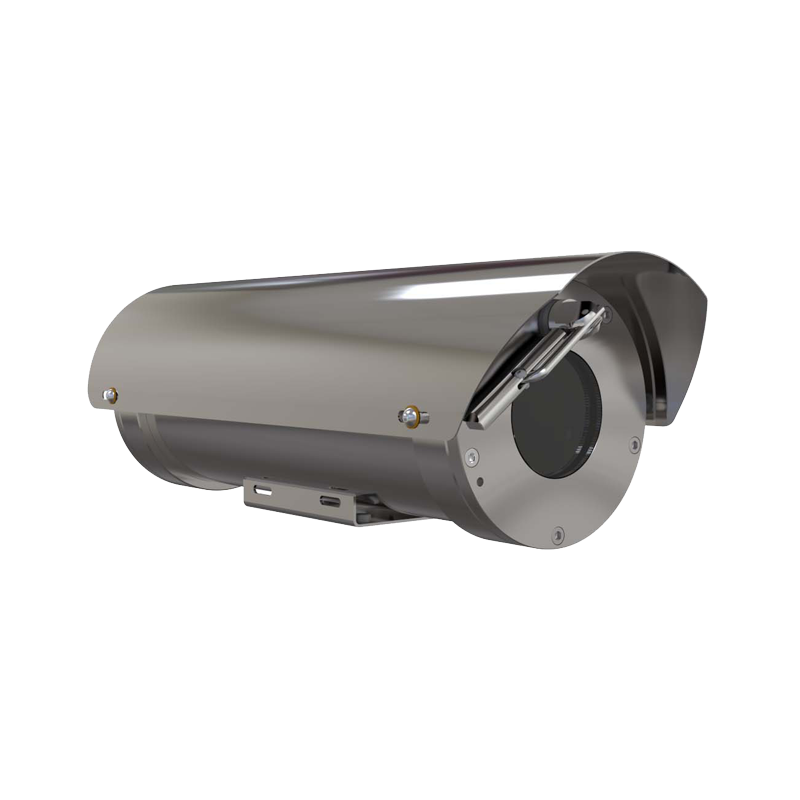

Hanwha - TNO-6070E2F-Z - Explosion Proof Fixed Camera
Part number:
TNO-6070E2F-Z
Price:
Explosion proof housing using the SNB-6004 + 2.8~9mm Lens 110VAC Only, Single Mode Fiber (No Wiper), cLCus C1/D1 certification, -40°C ~ +60°C (-40°F ~ +140°F), IP66/IP67, IP68.
Features:
- 2M (1920x1080) resolution, 1080p Full HD support
- 2.8mm ~ 9mm Lens
- 60fps @ 1080p Full HD
- Simple Focus, P-iris, Fiber
- True Day&Night (ICR), Enhanced DIS, Defog
- WDR (120dB, 30fps @ 2MP)
- Built-in SD/SDHC/SDXC memory slot
- 110VAC"
| Technical Specifications | |
| Video | |
| Image Sensor | 1/2.8” 2.38M CMOS |
| Resolution | 1920x1080 @60fpsto 320x180 |
| Lens | 1/2.8”, 3 MP, Vari-focal (2.8-9.0mm), auto DC iris, CS-mount |
| Min. Illumination | Color : 0.1Lux (F1.2, 50IRE), 0.03Lux (F1.2, 30IRE) B/W : 0.01Lux (F1.2, 50IRE), 0.002Lux (F1.2, 30IRE) |
| Streaming | H.264, MJPEG dual codec, multiple streaming, VBR/CBR |
| Features | Intelligent video analytics, motion detection, day & night (ICR), WDR (120dB), simple focus, auto iris, AGC, SSDR, ATW, SSNRIII, BLC, DIS, defog |
| Standards Protocols | ONVIF Profile S, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjou |
| Specifications | |
| Sun Shield | Standard stainless steel 316L mirror finish |
| Integrated Fiber | Built-in Fiber Module (Simplex single-mode 9/125 m) |
| Integral Wiper(Optional) | silicone wiper blades that are resistant and do not perish after long exposure to ozone, UV, ice,snow, heat or cold) |
| Ingress Protection Rating | IP66/67, IP68 (1.5m for 24 hours) |
| Temperature Rating | -40°C ~ +60°C (-40°F ~ +140°F) |
| Electrical | |
| Supply Voltage Options | 110 VAC |
| Power Consumption | 37W Maximum |
| Cable Entry | Three M20 entries located in housing rear flange |
| Body Material | Electro-polished 316L stainlesssteel on all welded assemblies |
| Fixings Material | A4 stainlesssteel |
| Camera Station Window | Toughened glass |
| Certifications | |
| Ex d IIC T4 (T5 On Request) Gb -60° C ≤Ta ≤+60°C Ex tb IIIC T135° C Db IP66/67. Certificate Number: TUV 12.1080X / TUV 12.1081X | |
| Class 1 Zone 1 A Ex d IIC T4 (T5 On Request) LC13A11396 Gb -60° C ≤Ta ≤+60° C. UL 60079-0:2009 & 60079-1:2009. Certificate Number: 11396-1S-UL | |
| ClassI, Division 1, Groups B,C,D, -60°C≤Ta≤60°C T4/ ClassII,Division 1, Groups E, F, G IP67 CSA-C22.2 No:30-M1986 No:25-1966(R2009) CSA-C22.2 No:60065- 03(R2012) & UL1203,UL60065(ED.7). Certificate Number: 11671-1S / 11677-1S | |
| Ex d IIC T4 (T5 On Request) LC1311396 -60°C≤Ta≤+60°C. CAN CSA-C22.2 No.60079-0:2011 & 60079-1-2011. Certificate Number: 11396- 1S-CSA | |
| Up to 21 Kg (46.3 lb) | |
