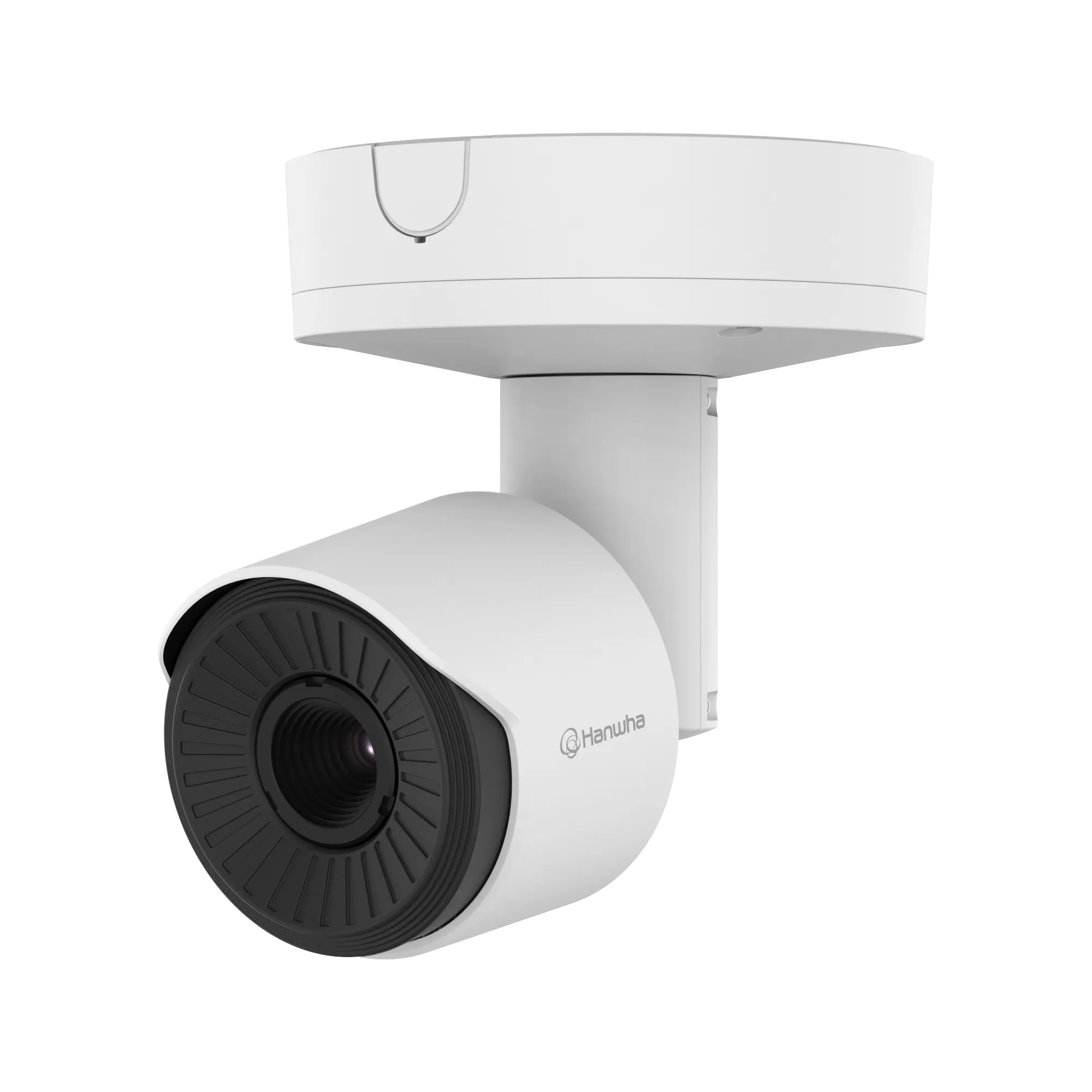

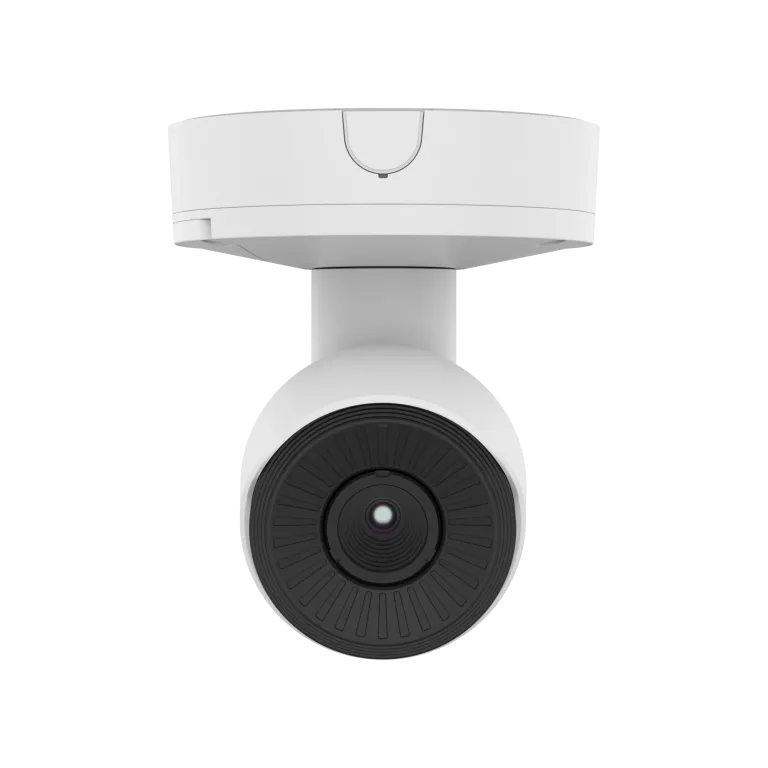

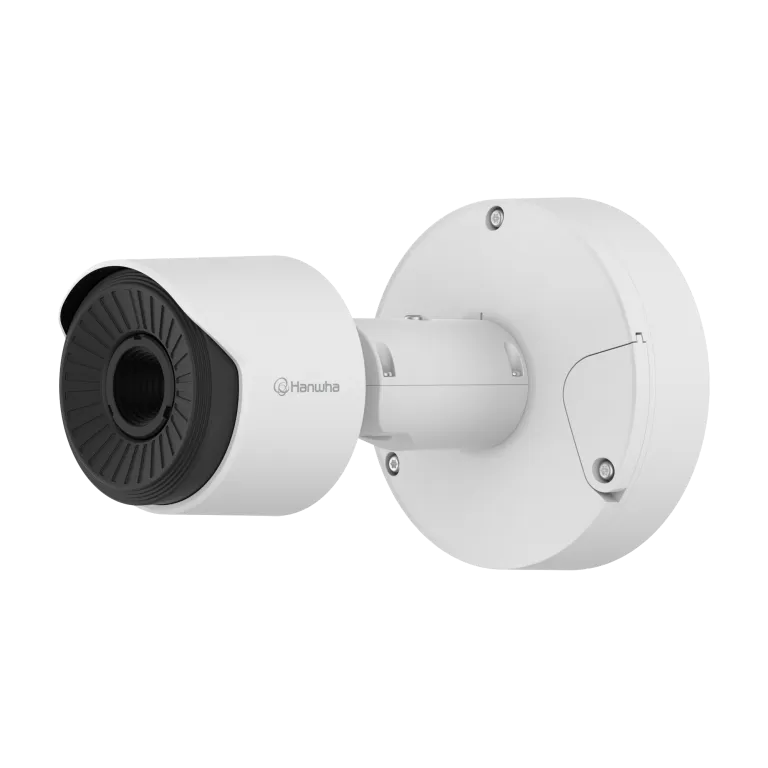

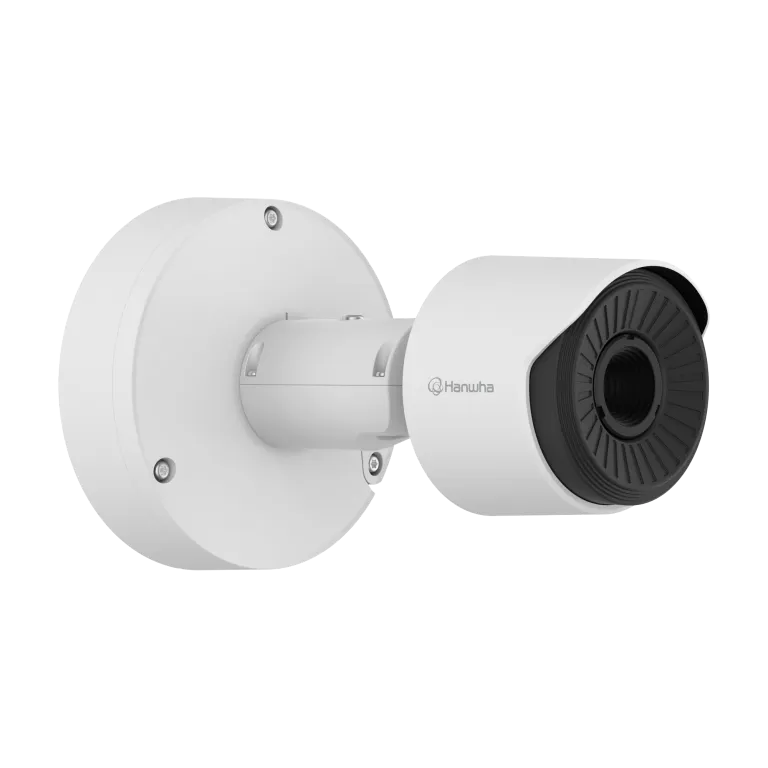

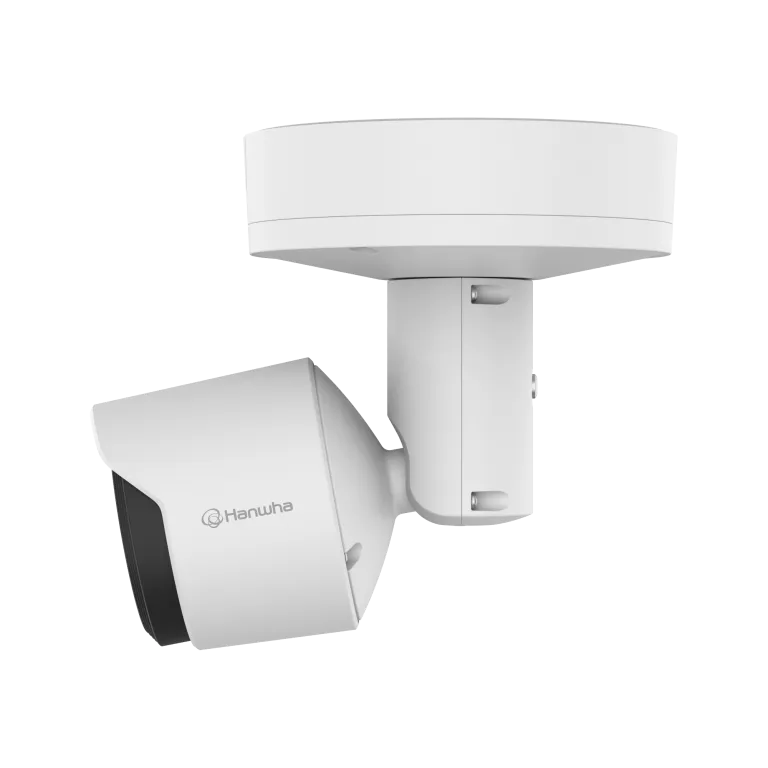

Wisenet T network AI Radiometric compact bullet camera (uncooled), 384 x 288 @ 8fps, ＜30mK (NETD), 9.7mm fixed focal lens (HFoV: 37.9°), Triple triple codec H.265/H.264/MJPEG with Wisestream II and WiseStream III (based on AI engine) support, Analytics events based on AI engine: Object detection (Person/Vehicle), Virtual line (Crossing/ Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Analytics events: Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear), PTZ handover, Radiometrics: whole FoV area or up 10 user programmable polygonal ROIs, temperature detection range from -40°C to 550°C (-40°F to 1022°F), built-in SD card slot (1x1TB), integrated back box, IP66, NEMA4X, IK10, PoE/12VDC, white color
Features:
- Wisenet T network Radiometric compact bullet camera (uncooled)
- 384 x 288 @ 8fps
- ＜30mK (NETD)
- 9.7mm fixed focal lens (HFoV: 37.9°),
- Triple triple codec H.265/H.264/MJPEG with Wisestream II and WiseStream III (based on AI engine) support
- Analytics events based on AI engine: Object detection (Person/Vehicle)
- Virtual line (Crossing/ Direction)
- Virtual area (Loitering/Intrusion/Enter/Exit)
- Analytics events: Motion detection
- Tampering
- Audio detection
- Sound classification
- Shock detection
- Virtual area(Appear/Disappear)
- PTZ handover
- Radiometrics: whole FoV area or up 10 user programmable polygonal ROIs
- temperature detection range from -40°C to 550°C (-40°F to 1022°F)
- SD card
- integrated back box
- IP66
- NEMA4X
- IK10
- PoE/12VDC
- white color
| Video | |
| Imaging Device | Uncooled micro bolometer (Spectral range: 8~14㎛) |
| Resolution | 768x576, 384x288(original) |
| Max. Framerate | H.265/H.264/MJPEG: Max. 8fps |
| NETD | ＜30mK |
| Pixel Size | 17㎛ |
| Video Out | USB: Micro USB Type B, 768x576 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 9.7mm fixed focal |
| Max. Aperture Ratio | F1.0 |
| Angular Field of View | H: 37.9° / V: 28.7° / D: 46.7° (iFoV: 1.8 mRad ) |
| Min. Object Distance | 2.8m |
| Focus Control | fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~90° / 0°~350° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 6ea, Rectangle zones - color : Grey, Black, White |
| Serial Interface | RS-485 |
| Alarm I/O | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset - MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Color Palettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom, Hybrid palettes |
| Radiometry | |
| Temperature Detect Range | -40°C~550°C(-40°F~1022°F) |
| Temperature Accuracy | below 150°C: up to ±2°C Above 150°C: up to ±15% * based on measurements in a room temperature environment. Auto Temperature mode |
| Temperature Detection | 10 Polygonal ROI zones, whole FoV area |
| Additional | Hybrid palettes, Spot temperature reading (ROI condition monitoring: Above/ Below/ Increase/ Decrease) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | TPM(Trusted platform module), SDcard partition encrypt |
| Security Certificate | TPM with FIPS 140-2 level 2 |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot Max. 1TB |
| Memory | 2GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+60°C(-40°F~+140°F) / 0~95% RH(non-condensing) |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / Less than 95% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 10.8W, typical 9W 12VDC: Max 9.4W, typical 7.7W |
| Mechanical | |
| Color / Material | White / Aluminum + PC |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø93.8x233.5mm(ø3.69x/9.19"), 1700g(3.75 lb) |
| Compatible Conduit hole / Gangbox | Conduit hole : SBP-060BA(Sold seperately) Gangbox : single, double, 4" octagon, 4" square |
| Backbox | Included |
| Pole Mount | SBD-180PMW, SBP-300PMW2 |
| Corner Mount | SBP-300KMW1 |
| Cabinet | SBP-300NBW |
| Conduit Adaptor | SBP-060BA |
