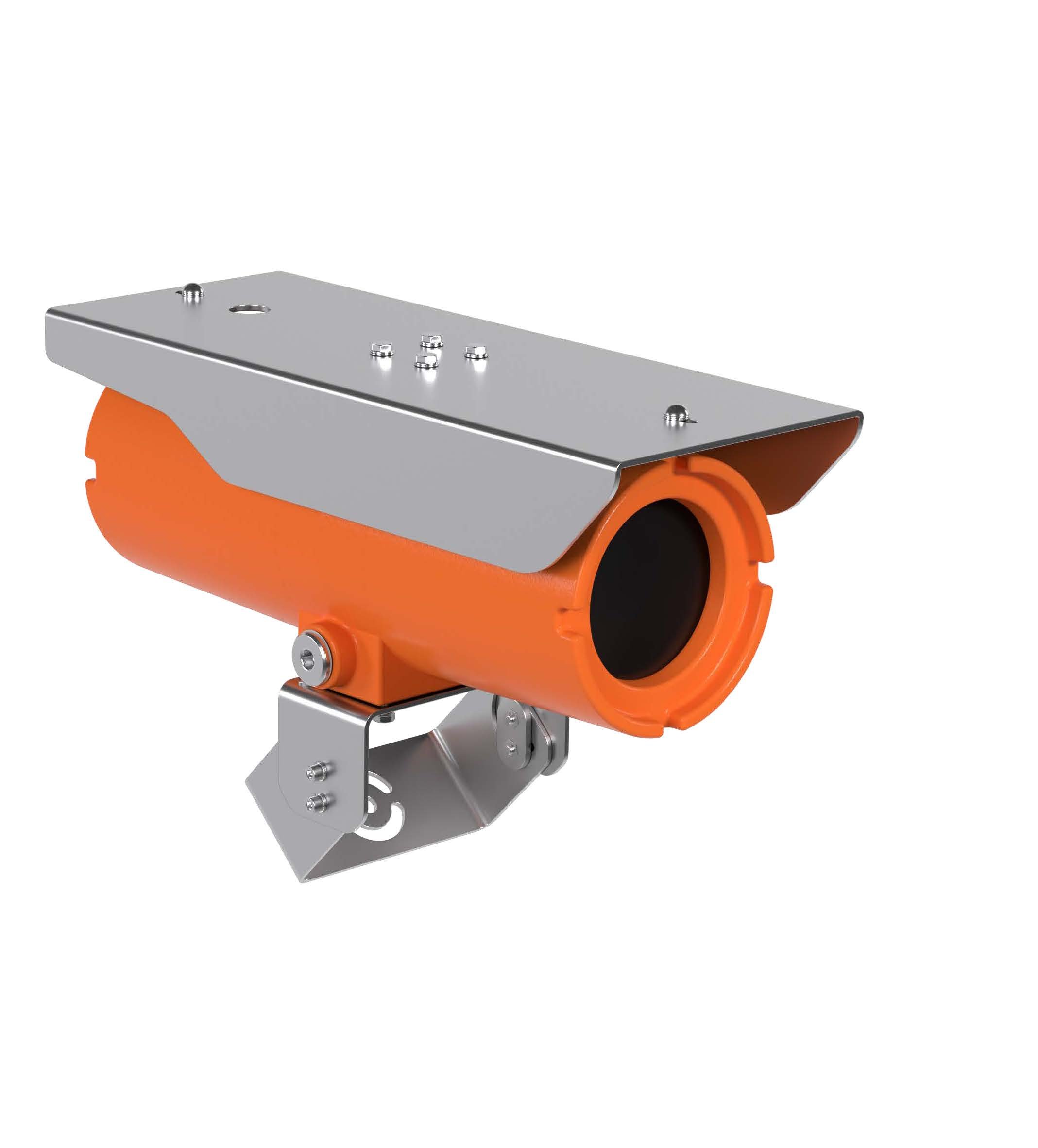

Hanwha - TNO-P9082EPT1-Z - Explosion Proof Fixed Camera
• Maximum 8MP resolution (1/1.2” sensor)
• 5.9~13.3mm (2.25x) motorized varifocal
• Analytics events based on AI engine: Object detection(Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Slip&Fall detection, Face mask detection, Social distancing detection
• Business intelligence based on an AI engine: People/Vehicle/Crowd counting, Queue management, Heatmap
• Support BestShot and full attributes
• Support Dynamic Privacy Masking
• AI-based Image enhancement
• extremeWDR, WiseNRII (Based on AI engine), WiseStream (Based on AI engine)
• Support Wisepower (Power monitoring)
• Device certificate (Hanwha Vision Root CA),
• Secure storage (Secure element with FIPS 140-3 level3/CC EAL6+ certified), SBOM
• 2 SD slots edge storage
| Video | |
|---|---|
| Imaging Device Size | 1/1.2" |
| Type | CMOS |
| Resolution | 3840x2160, 3328x1872, 3072x1728, 2688x1512, 2592x1944, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate | H.265/H.264: 30fps/25fps (60Hz/50Hz) MJPEG: 30fps (@8MP Max. 5fps) |
| Min. Illumination (Lux) | Color (1/30sec, 30IRE): 0.015 BW (1/30sec, 30IRE): 0.0015 |
| Video Out | USB: Micro USB Type C |
| Lens | |
| Focal Length (mm) | 5.9~13.3 |
| Zoom Ratio | Optical 2.25x |
| Max Aperture Ratio (F number) | Wide: 1.5 / Tele: 2.9 |
| Angular Field of View | Horizontal: 109°~49° Vertical: 59°~27° Diagonal: 128°~56° |
| Min. Object Distance | 0.8m (2.62ft) |
| Focus Control | Simple focus |
| Lens Type | P iris (IR corrected) |
| Operational | |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ (Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | Quantity: 8ea, Shape: 8point Polygonal zones |
| Privacy Masking | Quantity: 32ea, Shape: 8point Polygonal zones Color: Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Dynamic Privacy Masking Color | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support (Fill/stretch mode) |
| Electronic Shutter | Mode: Minimum, Maximum, Anti flicker, Prefer shutter control (Based on AI engine) Speed Range: 2~1/30,000 sec |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Serial Interface | RS-485 (Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm Interface | In/Out: 2 configurable I/O ports 12VDC output |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption |
| Alarm Events | File upload (image): e-mail/FTP/SFTP, File upload (video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable (mic in/line in), Built-in mic |
| Audio Out | Line out |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes | Person: Upper/Lower clothes color, Gender, Bag Vehicle: Type (car, bus, truck, motorcycle, bicycle), Color Face: Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events (Based on AI Engine) | Object detection, Virtual line (Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area (Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Normal Analytics Events | Defocus detection, Tampering, Audio detection, Shock detection, Virtual area (Appear/Disappear) |
| Business Intelligence (Based on AI Engine) | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps) |
| Smart Codec | WiseStream (Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming | Unicast: Up to 20 users, Multicast: Support |
| Multiple Streaming | Up to 5 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog |
| Application Programming Interface | |
| API | ONVIF S, G, T, M, SUNAPI (HTTP API), Hanwha Vision Open Platform, Direct Cloud Connection Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt (AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element (FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
| General | |
| Memory | RAM: 4GB, Flash: 8GB |
| Edge Storage | Micro SD/SDHC/SDXC Max. 1TB x 2 slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition | Temperature: -50°C~+55°C (-58°F~+131°F) Humidity: 0~95% RH (non-condensing) |
| Storage Condition | Temperature: -50°C~+60°C (-58°F~+140°F) Humidity: 0~90% RH (non-condensing) |
| EPA (Effective Projected Area) | 0.0153㎡ |
| Input Voltage | Camera Only: PoE+ (IEEE802.3at, Class 4) Camera & Heaters: PoE++ (IEEE802.3bt) |
| Power Consumption | Camera Only: 13.6W Max. Camera & Heaters: 90W Max. |
| WisePower | Power monitoring |
| Power Redundance | Failover Support |
| Mechanical | |
| Color | Yellow Orange |
| Material | Powder Coated Aluminum |
| RAL Code | RAL2000 |
| Product Dimensions | 7.2" x 5.97" x 13.85" (191mm x 151.6mm x 351.8mm) |
| Product Weight | 14 lbs (6.35 kgs) |
| Certifications & Standards | |
| EMC | EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| Ingress Protection | Type 4x / IP66 |
| Certified Model Number | F203-PNB-A9082-01-01 |
The Hanwha Vision TNO-P9082EPT1-Z is an 8MP (4K) explosion-proof fixed AI camera powered by the Wisenet 9 platform, featuring a 1/1.2" CMOS sensor delivering 3840x2160 resolution at 30fps. It includes a 5.9~13.3mm 2.25x motorized lens with a 109° to 49° horizontal FOV. Low light sensitivity reaches 0.0015 Lux B/W. Video enhancements include WiseNR II, 120dB WDR, DIS, and defog. AI analytics include object detection of person, face, vehicle, license plate, virtual line and area, face mask, and social distancing detection; slip & fall; plus business intelligence for people, vehicles, crowd counting, queue management, and heatmaps. The camera is rated Type 4X and IP66 with explosion-proof certification, operating from -50°C to +55°C. It features dual microSD slots up to 2TB total, a FIPS 140-3 Level 3 secure element, and is powered by PoE+ max 13.6W with optional PoE++ for heaters.
