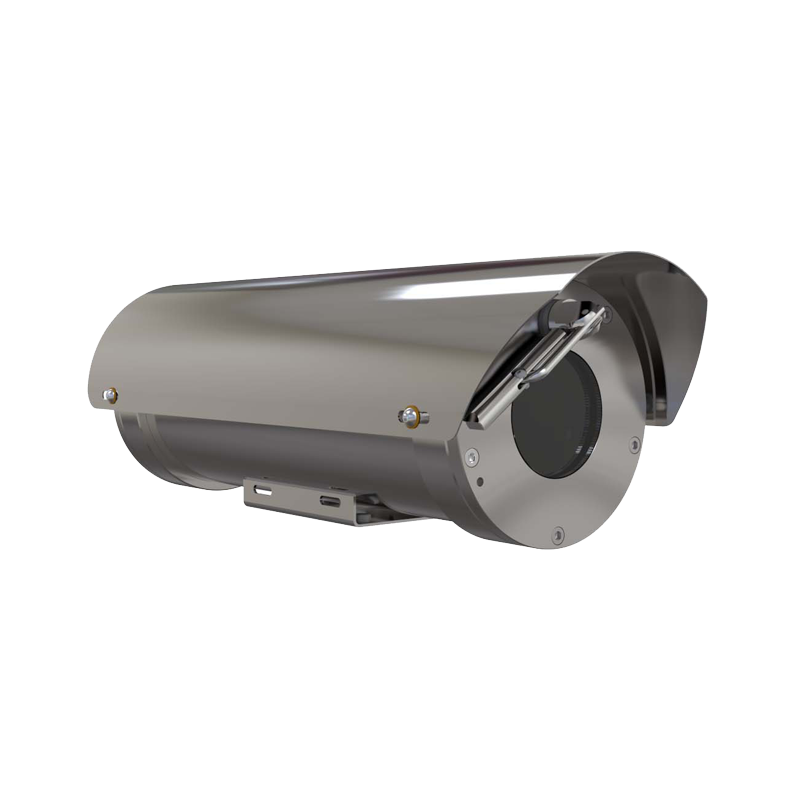

Hanwha - TNO-X6320E1WT1-C - Explosion Proof Fixed Camera
Part number:
TNO-X6320E1WT1-C
Price:
Explosion proof housing using the XNZ-6320 24VAC Only with wiper, cLCus C1/D1 certification, -40°C ~ +60°C (-40°F ~ +140°F), IP66/IP67,IP68, "-C" for cLC CSA
Features:
- 1080p @ 60fps
- 32x optical zoom with auto focus
- Multiple streaming
- Intelligent video analytics, Wiper
- Wide Dynamic Range (150dB)
- Built-in dual micro SD/SDHC/SDXC memory slots
- 24VAC Power
VIDEO
| Image Sensor | 1/2.8" 2.4 MP CMOS |
| Resolution | Resolution: 1920x1080 to 320x180; 60fps at all resolutions (H.265/H.264) |
| Lens | 32x optical 16x digital zoom 4.44-142.6 mm F1.6 to F4.4, horizontal angle of view 62.8° - 2.23° |
| Minimum Illumination | Color : 0.05Lux (1/30sec, F1.6, 50IRE) B/W : 0.005Lux (1/30sec, F1.6, 50IRE) |
| Streaming | H.265, H.264, MJPEG triple codec, multiple streaming, VBR/CBR, WiseStream II |
| Features | Intelligent video analytics, motion detection, day & night (ICR), WDR (150dB), HLC, auto focus, auto iris, AGC, SSDR, SSNRIII, BLC, Gyro DIS, Defog |
| Standards Protocols | ONVIF Profile S/G, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/ v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
SPECIFICATIONS
| Sun Shield | Standard stainless steel 316L mirror nish |
| Integral Wiper | Silicone wiper blades that are resistant and do not perish after long exposure to ozone, UV, ice, snow, heat or cold |
| Ingress Protection Rating | IP66/67, IP68 (1.5m for 24 hours) |
| Temperature Rating | T1: -40°C ~ +60°C (-40°F ~ +140°F); T2: -60°C ~ +60°C (-76°F ~ +140°F) |
ELECTRICAL
| Input Voltage | 24 VAC |
| Power Consumption | 37W Maximum |
| Cable Entry | Three M20 entries located in housing rear flange; 1 entry for PoE models |
| Body Material | Electro-polished 316L stainless steel on all welded assemblies |
| Fixings Material | A4 stainless steel |
| Camera Window | Toughened glass |
