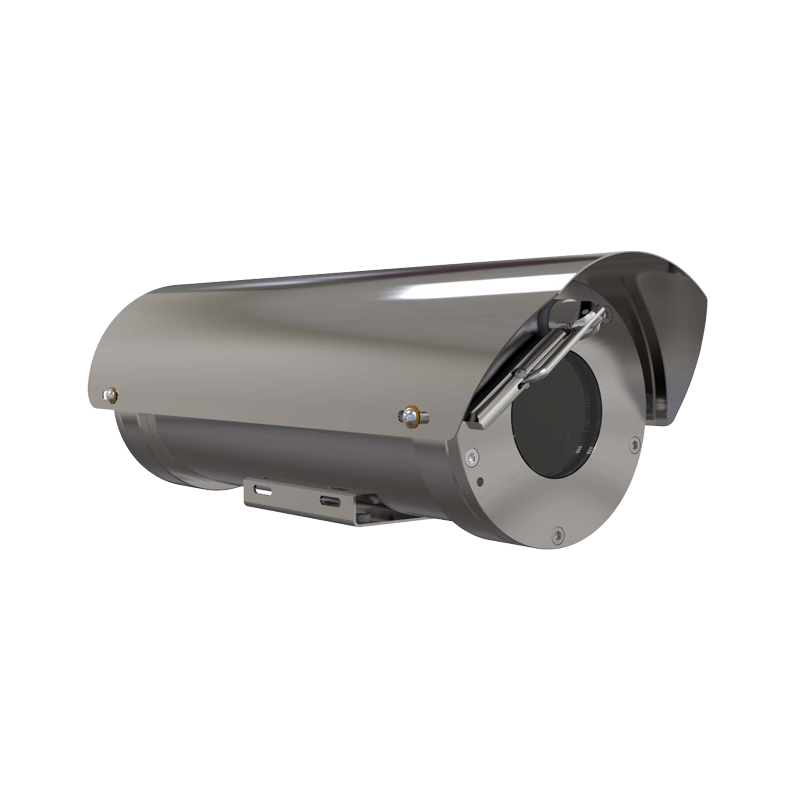

Explosion proof housing using the XNZ-6320 110VAC Only, Single Mode Fiber (No Wiper), cLCus C1/D1 certification, -40°C ~ +60°C (-40°F ~ +140°F), IP66/IP67,IP68, "-Z" for cLCus C1/D1
Features:
- 1080p @ 60fps
- 32x optical zoom with auto focus
- Multiple streaming
- Intelligent video analytics, wiper, fiber
- Wide Dynamic Range (125dB)
- Built-in dual micro SD/SDHC/SDXC memory slots
- 110VAC Power
| VIDEO | |
| Imaging Device | 1/2.8" 2.4 MP CMOS |
| Total Pixels | 1981(H) x 1288(V), 2.55 MP |
| Eff ective Pixels | 1944(H) x 1212(V), 2.35 MP |
| Scanning System | Progressive scan |
| Minimum Illumination | Color : 0.05 Lux (1/30 sec, F1.6) B/W : 0.005 Lux (1/30 sec, F1.6) |
| S / N Ratio | 50dB |
| LENS |
| Focal Length (Zoom Ratio) | 4.44 ~ 142.6mm (Optical 32x) |
| Maximum Aperture Ratio | F1.6 (Wide) / F4.4 (Tele) |
| Angular Field of View | H : 61.8˚(Wide) ~ 2.19˚(Tele) / V : 36.2˚(Wide) ~ 1.24˚(Tele) |
| Minimim Object Distance | Wide 1.5m (4.92ft), Tele 2m (6.56ft) |
| Focus Control | Auto / Manual / One shot AF |
| Lens Type | DC auto iris |
| Mount Type | Board-in type |
| OPERATIONAL |
| Camera Title | Off / On (Displayed up to 85 characters)
|
| Day & Night | Auto (ICR) / Color / B/W / Schedule |
| Backlight Compensation | Off / WDR / BLC / HLC |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (On / Off) |
| Digital Noise Reduction | SSNR5 (2D+3D noise filter) (On / Off) |
| Digital Image Stabilization | On / Off (Built-in gyro sensor) |
| Defog | Off / Manual / Auto |
| Motion Detection | On / Off (8ea, Polygonal) |
| Privacy Masking | On / Off (24 Zones of rectangle zone)
|
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1 ~ 1 / 12,000sec) |
| Digital Zoom | 32x |
| Flip / Mirror | On / Off |
| Video & Audio Analytics | Tampering, Loitering, Directional/Virtual Line detection, Fog detection, Enter/Exit, Appear/ Disappear, Audio detection, Face detection, Motion detection, Sound classification, Shock detection |
| Serial Interface | RS-485/RS-422 Supported protocols - Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell |
| Alarm I/O | Input 1ea / Output 2ea (Relay) |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm events | File upload via FTP and E-Mail, Notifi cation via E-Mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) or NAS recording at alarm triggers, External output, Preset |
| Audio In | Selectable (Mic In/Line In) Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm |
| Audio out | Line out (3.5mm), Maximum output level: 1 Vrms |
| Pixel counter | Support |
| NETWORK |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.264 (MPEG-4 Part 10/AVC), H.265, Motion JPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Maximum Framerate | H.264 / H.265 : Maximum 60fps at all resolutions Motion JPEG : Maximum 30fps at all resolutions |
| Smart Codec | Manual mode (Area-based : 5ea) |
| WiseStreamⅡ | Support |
| Video Quality Adjustment | H.264 / H.265 / MJPEG : Target bitrate level control |
| Bitrate Control Method | H.264 / H.265 : CBR or VBR Motion JPEG : VBR |
| Streaming Capability | Multiple streaming (Up to 10 profi les) |
| Audio Compression Format | G.711 u-law / G.726 selectable G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC : 48Kbps at 16KHz |
| Audio Communication | Bi-directional (2-Way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS (SSL) login authentication, Digest login authentication, IP address fi ltering, User access log, 802.1X Authentication (EAP-TLS, EAP-LEAP) |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 20 users at Unicast mode |
| Edge Storage | Micro SD/SDHC/SDXC 2 slots (up to 512 GB total capacity)
Local PC for instant recording |
| Application Programming Interface | ONVIF Profi le S/G, SUNAPI 2.0 (HTTP API), Wisenet Open Plarform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Plug-in Free Webviewer supported browser : Google Chrome, Microsoft Edge, Microsoft Internet Explorer, Mozilla Firefox (Windows 64-bit only) , Apple Safari 10 (Mac OS X only) |
| Central Management Software | Wisenet WAVE, SmartViewer, SSM |
