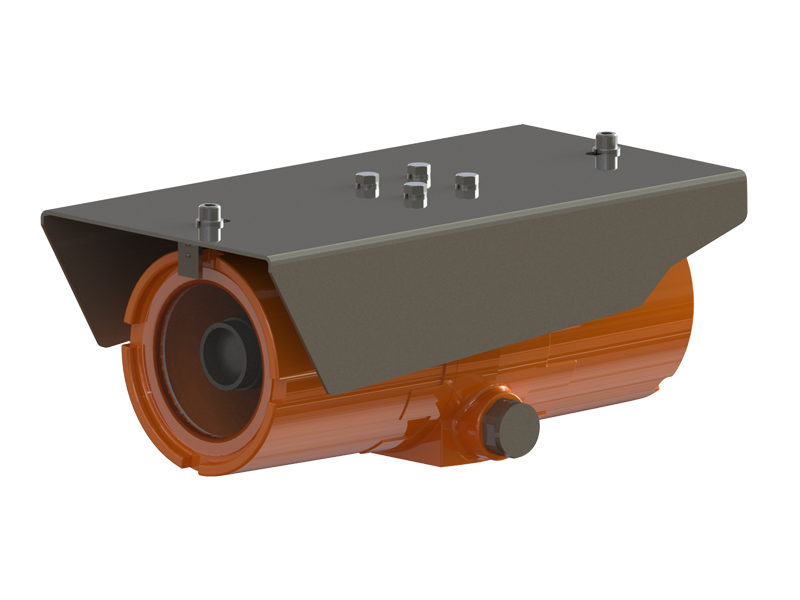

Explosion proof camera using the XNB-8000 (5MP @ 30fps) + 4.1~9mm Lens, PoE powered, -40°C ~ +55°C (-40°F ~ +131°F), type 4x, IP66, FM (Factory Mutual) C1/D1 certification
Features:
- 5 MP@ 30fps
- 4.1-9mm lens
- H. 265, H.264, MJPEG codec support, Multiple streaming
- Intelligent video analytics
- WiseStream II
- Wide Dynamic Range (120dB)
- DIS with Built-in Gyro sensor
- Built-in dual micro SD/SDHC/SDXC memory slots
- PoE Power
- Hazardous Rated for Class I II III Division 1 Groups B, C, D, E, F, G cFMus Approved and II 2 G Ex db IIB+H2 II 2 D Ex tb IIIC IECEX ATEX certified
- Power-coated aluminum housing
VIDEO
| Imaging Device | 1/1.8" 6 MP CMOS |
| Total Pixels | 3,096(H) x 2,094(V) 6.48 MP |
| Effective Pixels | 2,616(H) x 1,976(V) 5.16 MP |
| Scanning System | Progressive Scan |
| Minimum Illumination | Color : 0.07Lux (F1.2, 1/30sec), B/W : 0.007Lux (F1.2, 1/30sec) |
| S / N Ratio | 50dB |
| Video Out | CVBS : 1.0 Vpp / 75Ω composite, 720 x 480, for installation USB : micro USB type B, 1280 x 720 for installation |
LENS
| Focus Control | Simple focus / Manual, Remote control via network, Button control (Manual, Simple focus) |
| Lens Type | Manual / DC auto iris, P-Iris, C/CS lens mount |
| Focal Length/ Angular FoV | 4.1-9mm / 82° (Wide) ~ 43° (Tele) |
OPERATIONAL
| Camera Title | Off / On (Displayed up to 85 characters) - English / Numeric / International characters / Special characters - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On (Built-in Gyro sensor) |
| Defog | Off / Auto (Input from fog detection) / Manual |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Gain Control | Off / Low / Middle / High / Manual |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
| Contrast | Level adjusment |
| LDC (Lens Distortion Correction) | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On, Hallway view : 90°/270° |
| Video & Audio Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classiÿcation |
| Alarm I/O | Input 1ea / Output 1ea |
| Remote Control Interface | RS-485 |
| RS-485 Protocol | Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, GE, Bosch |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events | File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| Pixel Counter | Support |
NETWORK
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Resolution | 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265 / H.264 : Maximum 30fps at all resolutions, MJPEG : Maximum 30fps |
| Smart Codec | Manual mode (Area-based : 5ea) |
| WiseStream II | Support |
| Video Quality Adjustment | H.265 / H.264 : Target bitrate level control, MJPEG : Target bitrate level control |
| Bitrate Control Method | H.265 / H.264 : CBR or VBR, MJPEG : VBR |
| Streaming Capability | Multiple streaming (Up to 10 proÿles) |
| Audio In | Selectable (Mic in / Line in), Max output level : 1Vrms Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm |
| Audio Out | Line out, Maximum output level : 1Vrms |
| Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8/16/32/48KHz |
| Audio Communication | Bi-directional (2-way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) login authentication, Digest login authentication IP address ÿltering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 20 users at unicast mode |
| Edge Storage | SD/SDHC/SDXC 2 slots (Up to 512GB) - Continuous recording (1st slot to 2nd slot NAS (Network Attached Storage), Local PC for instant recording |
| Application Programming Interface | ONVIF proÿle S/G, SUNAPI (HTTP API), Wisenet Open Platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Plugin-Free Webviewer - Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox( 49Window 64bit only), MS Internet Explorer 11, Apple Safari 9 * Mac OS X only |
| Central Management Software | Wisenet WAVE, SmartViewer, SSM |
ENVIRONMENTAL
| Operating Temperature with heater | -40°C ~ +60°C (-40°F ~ +140°F) USA; -50°C ~ +60°C (-58°F ~ +140°F) Canada |
| Operating Temperature PoE only | -10°C ~ +55°C (+14°F ~ +131°F) |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Ingress Protection | Type 4x / IP66 |
ELECTRICAL
| Input Voltage | Camera: PoE (IEEE802.3af) / Heater: 12-24v DC |
| Power Consumption | Camera: Maximum 7.5W (PoE) / Heater: 25W |
MECHANICAL
| Color / Material | RAL2000-Yellow Orange / Powder-coated Aluminum |
| Dimensions (WxHxD) | 7.2" x 5.97" x 13.85" |
| Weight | 14 lb (6.35kg) |
