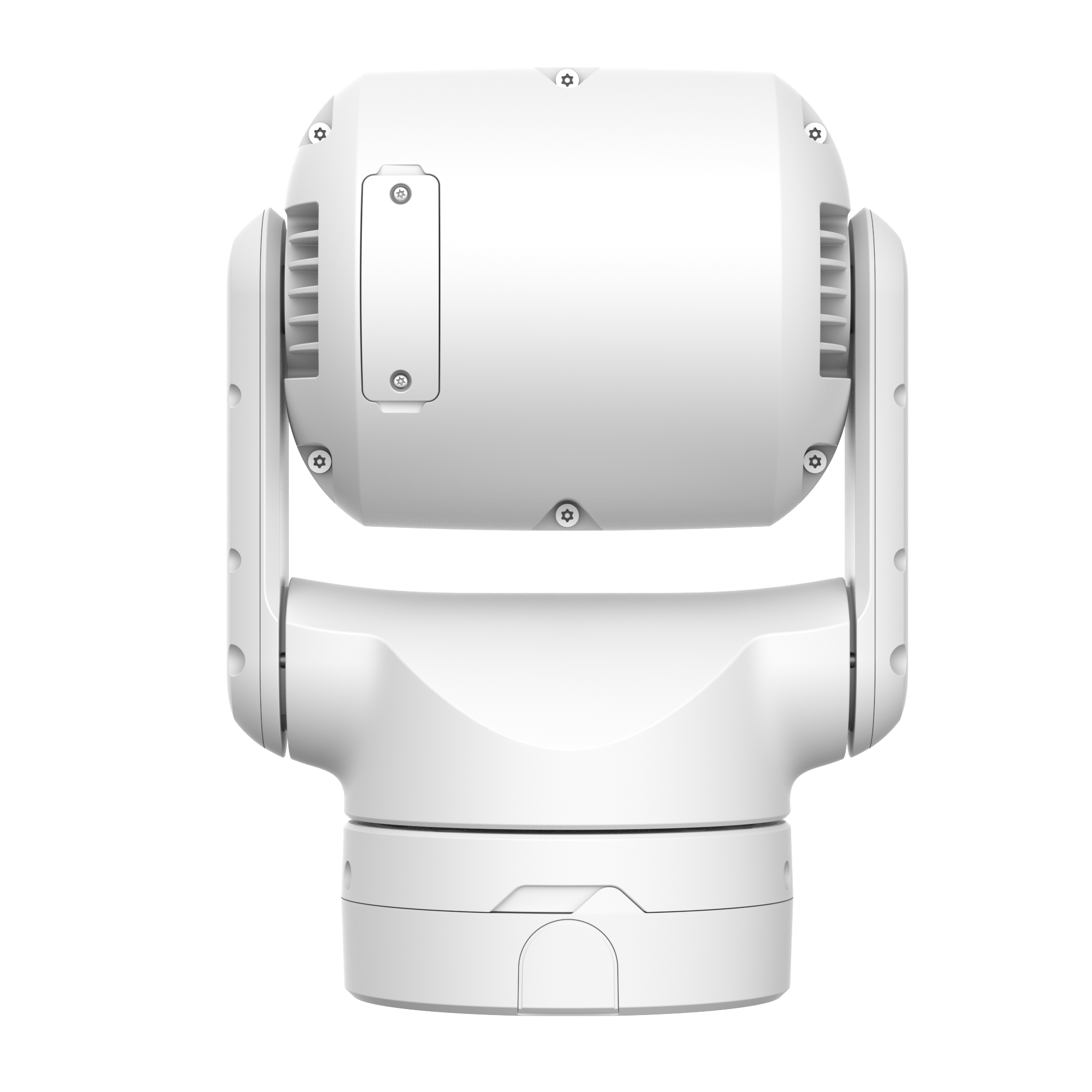

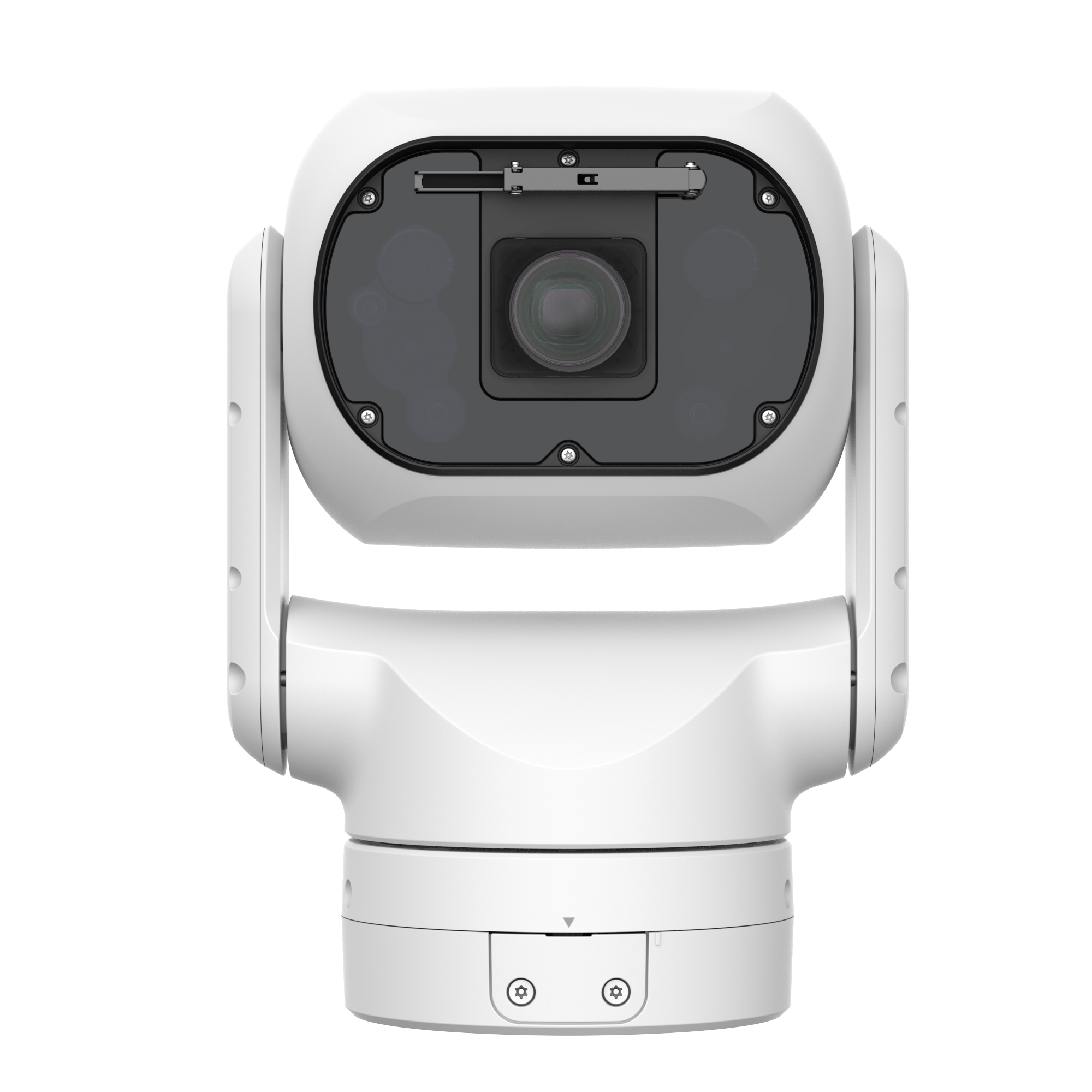

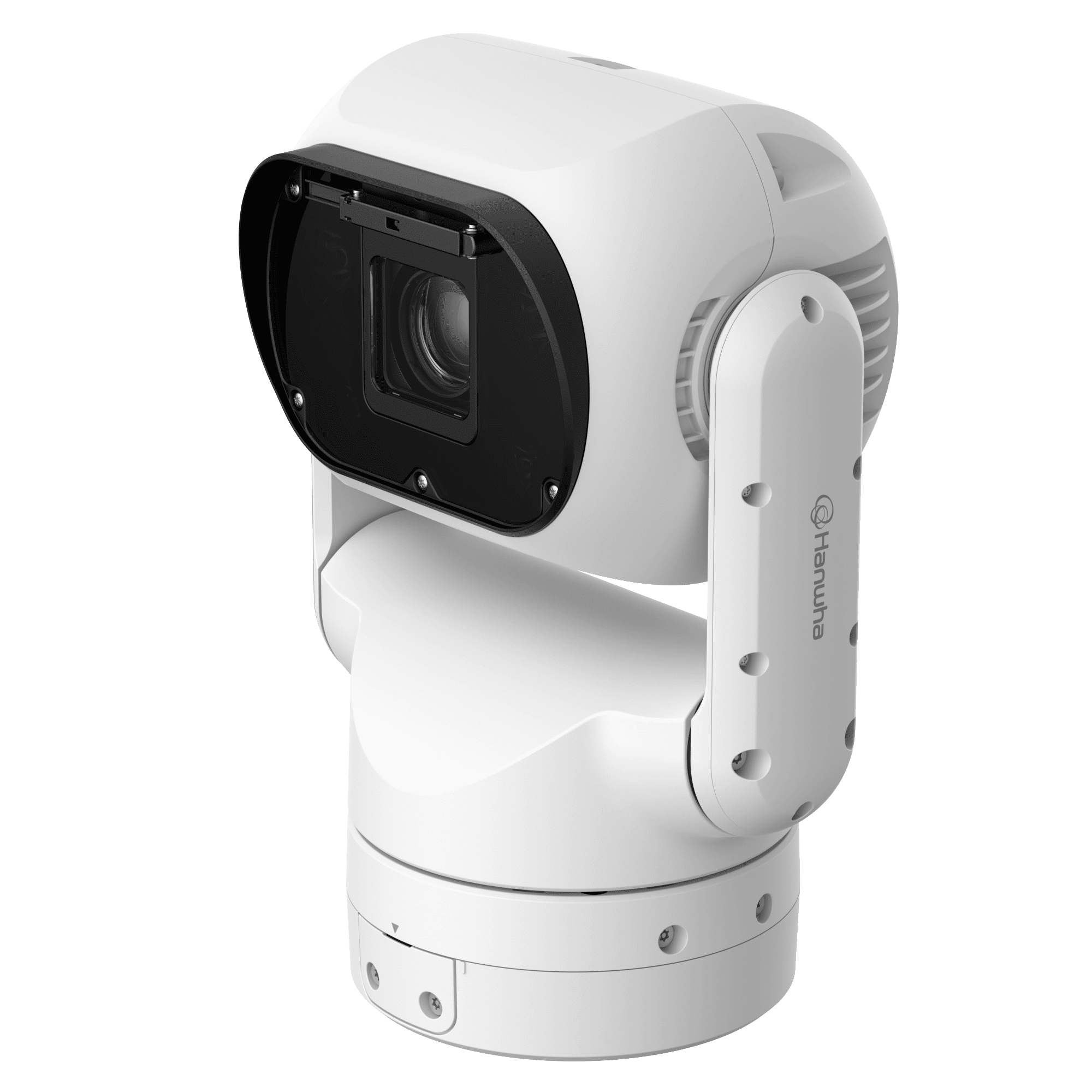

Hanwha - TNP-A6550RW - 2MP AI IR, Ruggedized PTZ Positioning Camera
Part number:
Price:
• Max 2MP 55x
• IP66, IP68, NEMA4X
• IR viewable length 600m
• NEMA TS-2 (2.2.7.2-8, 2.2.8, 2.2.9)
• Wind load max.160 mph
• Operating temperature: -50 ~60°C
• Analytics events based on an AI engine: Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Slip&Fall detection, Motion detection
• Support BestShot and full attributes
• Support Dynamic Privacy Masking
• extremeWDR, WiseNRⅡ and WiseStream (Based on AI engine)
• Support Wisepower (Power monitoring, ECO mode)
• Device certificate(Hanwha Vision Root CA), Secure storage (Secure element with FIPS 140-3 level3/CC EAL6+ certified), SBOM
| Video | |
|---|---|
| Imaging Device Size | 1/2.8" |
| Type | CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: 60fps/50fps (60Hz/50Hz) (WDR off) / 30fps/25fps (60Hz/50Hz) (WDR on) MJPEG: 30fps |
| Min. Illumination (Lux) | Color (1/30sec, 30IRE): 0.02Lux (F1.6, 1/30sec) BW (1/30sec, 30IRE): 0.002 lux (1/30sec, F1.6), 0Lux (IR LED On) |
| Lens | |
| Focal Length (mm) | 4.75~261.4 |
| Zoom Ratio | Optical: 55x, Digital: 1760x |
| Max Aperture Ratio (F number) | Wide: F1.6 / Tele: F6.5 |
| Angular Field of View | Horizontal: 58.6° (Wide) ~ 1.23° (Tele) Vertical: 34.8° (Wide) ~ 0.71° (Tele) Diagonal: 65.5° (Wide) ~ 1.39° (Tele) |
| Min. Object Distance | 5m (16.4ft) |
| Focus Control | Auto, Manual, Oneshot AF, Focus save |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Pan: 360° Endless Tilt Upright: 140° (50°~-90°), Canted: 165° (75°~-90°), Inverted: 140° (90°~-50°) |
| Pan Speed | Preset: Max. 160°/sec, Manual: 0.024°/sec ~ 160°/sec |
| Tilt Speed | Preset: Max. 160°/sec, Manual: 0.024°/sec ~ 160°/sec |
| Sequence | Preset (300ea), Swing, Group (6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.07° |
| Operational | |
| Direction Indicator | Support |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ (Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support (built-in gyro sensor) |
| Defog | Support |
| Motion Detection | Quantity: 8ea, Shape: 8point Polygonal zones |
| Privacy Masking | Quantity: 32ea, Shape: 4point Quadrangle zones Color: Gray, Green, Red, Blue, Black, White, Mosaic |
| Dynamic Privacy Masking Color | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium |
| Electronic Shutter | Mode: Minimum, Maximum, Anti flicker, Prefer shutter control (Based on AI engine) Speed Range: 2~1/30,000 sec |
| Video Rotation | Flip & Mirror |
| Installation Direction | Upright, Inverted, Canted |
| Alarm Interface | Support alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription |
| Alarm Events | File upload (image): e-mail/FTP, File upload (video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Support via optional I/O box |
| Audio Out | Support via optional I/O box |
| Light Type | IR LED |
| Light Viewable Length | IR: 600m (1,968.50ft) |
| IR Wavelength | 850nm |
| Water Removal | Support (with Wiper) |
| Ice Removal | Window, Pan |
| Auto Tracking | Support, Object auto tracking (Person/Vehicle), Target lock tracking |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes | Person: Upper/Lower clothes color, Gender, Bag Vehicle: Type (car, bus, truck, motorcycle, bicycle), Color Face: Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events (Based on AI Engine) | Object detection, Virtual line (Crossing/Direction), Motion detection, Slip & fall detection, Virtual area (Loitering/Intrusion/Enter/Exit/Appear/Disappear), Auto tracking |
| Normal Analytics Events | Tampering, Audio detection, Shock detection |
| Network | |
| Ethernet | RJ-45 Push-pull Connector (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | WiseStream (Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming | Unicast: Up to 20 users, Multicast: Support |
| Multiple Streaming | Up to 10 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, NTCIP 1205, Syslog |
| Application Programming Interface | |
| API | ONVIF S, G, T, M, SUNAPI (HTTP API), Hanwha Vision Open Platform, Direct Cloud Connection Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt (AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element (FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
| General | |
| SoC Type | Wisenet 9 (Dual NPU Support) |
| Memory | RAM: 4GB, Flash: 8GB eMMC |
| Edge Storage | Micro SD/SDHC/SDXC Max. 1TB x 1 slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition | Temperature: -50°C~+60°C (-58°F~+140°F) Humidity: 0~100% RH (condensing) +74°C (+165°F) (Max) based on NEMA-TS 2(2.2.7) Start up should be done at above -30°C Humidity control with AIR vent |
| Storage Condition | Temperature: -50°C~+60°C (-58°F~+140°F) Humidity: 0~90% RH (non-condensing) |
| Wind Load | Sustained 257km/h (160mph) |
| EPA (Effective Projected Area) | 0.095㎡ |
| Input Voltage | PoE++ (IEEE802.3bt type4, Class8) |
| Power Consumption | PoE: Max. 71W, typical 28.3W |
| WisePower | Power mode, Power monitoring, Eco mode |
| Mechanical | |
| Color | White, Black |
| Material | Aluminum, PC (Polycarbonate), ITO Glass |
| Material Management Declaration | RoHS (EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH (Regulation (EC) No. 1907/2006), Conflict mineral policy (Section 1502 of US Dodd Frank Act) |
| RAL Code | RAL9003, RAL9005 |
| Product Dimensions | Upright Normal/Inverted: 293.4(W) x 205.6(D) x 399.9(H) mm (11.55 x 8.09 x 15.74") Upright Canted: 293.4(W) x 301.9(D) x 363.6(H) mm (11.55 x 11.89 x 14.31") |
| Product Weight | 10.4kg (9.4kg excluding installation part) |
| Certifications & Standards | |
| EMC | EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, EN 55035 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471, IEC/EN/UL 62368-1 GS UL cUL CE FCC VCCI CB |
| Environment | IEC 60529 IP66, IEC 60529 IP68, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, MIL-STD-810H 501.7, MIL-STD-810H 502.7, MIL-STD-810H 503.7, MIL-STD-810H 505.7, MIL-STD-810H 506.6, MIL-STD-810H 507.6, MIL-STD-810H 509.7, MIL-STD-810H 510.7, MIL-STD-810H 521.4, IEC 60068-2-52:2017, NEMA TS2 (2.1.9, 2.1.10, 2.2.4), NEMA 250 5.6, ASTM B117 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM / 8PPF) | Wide: 68.4m (224.5ft) / Tele: 3577.4m (11736.7ft) |
| Observe (63PPM / 19PPF) | Wide: 27.4m (89.8ft) / Tele: 1430.9m (4694.7ft) |
| Recognize (125PPM / 38PPF) | Wide: 13.7m (44.9ft) / Tele: 715.5m (2347.3ft) |
| Identify (250PPM / 76PPF) | Wide: 6.8m (22.5ft) / Tele: 357.7m (1173.7ft) |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
The Hanwha Vision TNP-A6550RW is a 2MP AI ruggedized PTZ camera powered by the Wisenet 9 platform, featuring a 1/2.8" CMOS sensor delivering 1920x1080 resolution at up to 60fps. It includes a 4.75~261.4mm 55x optical zoom lens with a 58.6° to 1.23° horizontal FOV. WiseIR provides 600m night vision with 0.002 Lux B/W sensitivity. The camera features 360° endless pan and tilt, digital image stabilization, 120dB WDR, WiseNR II, defog, and a built-in wiper. AI analytics include object detection for people, faces, vehicles, licence plates, virtual lines and areas, slips and falls, and automatic tracking of people and vehicles with target locking. Attributes include clothing, gender, bags, vehicle type and colour, and face age, gender, mask and glasses. The camera is rated IP66, IP68, IK10, NEMA 4X, and NEMA TS-2, operating from -50°C to +60°C. It features a microSD slot up to 1TB, a FIPS 140-3 Level 3 secure element, and is powered by PoE++ max 71W.
