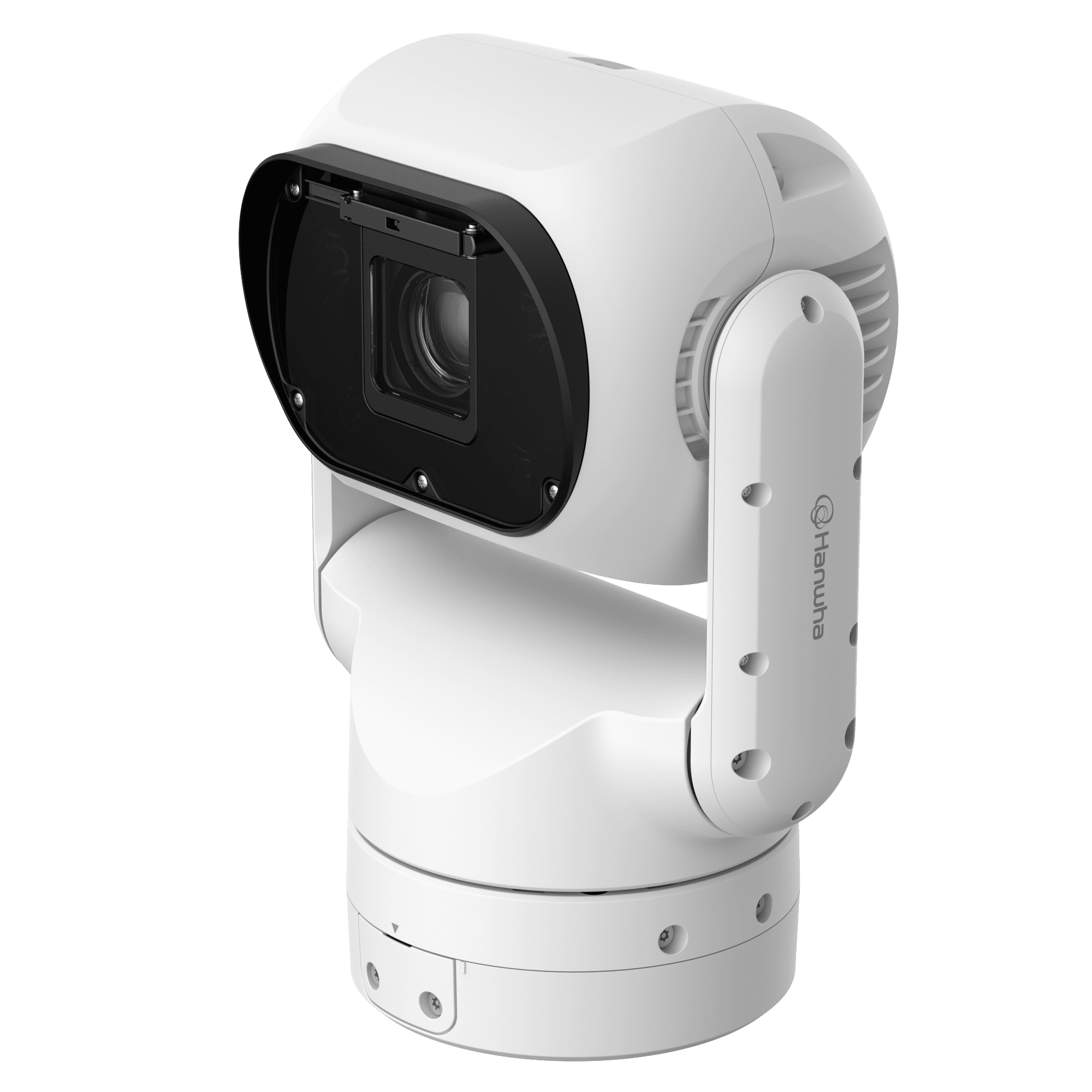

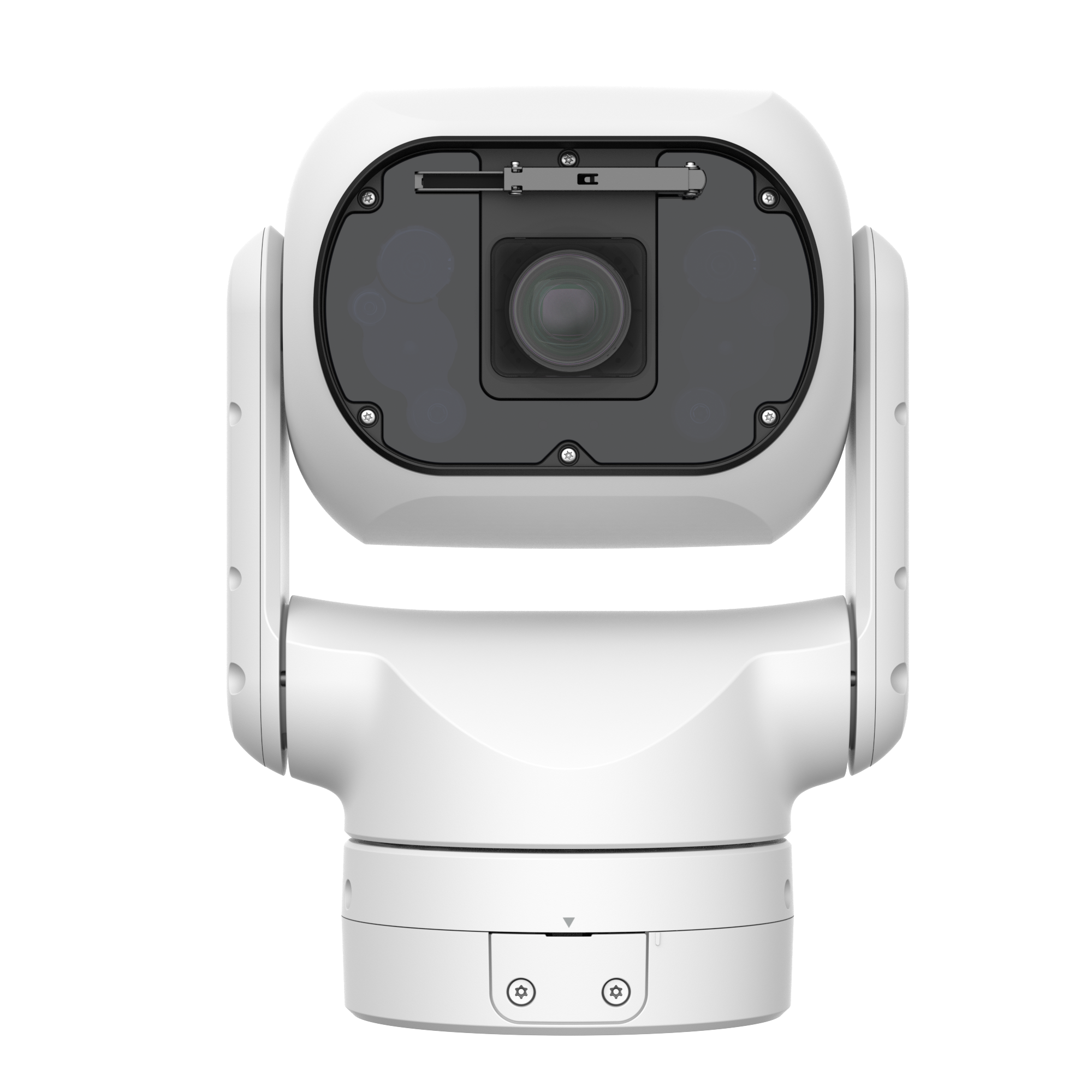

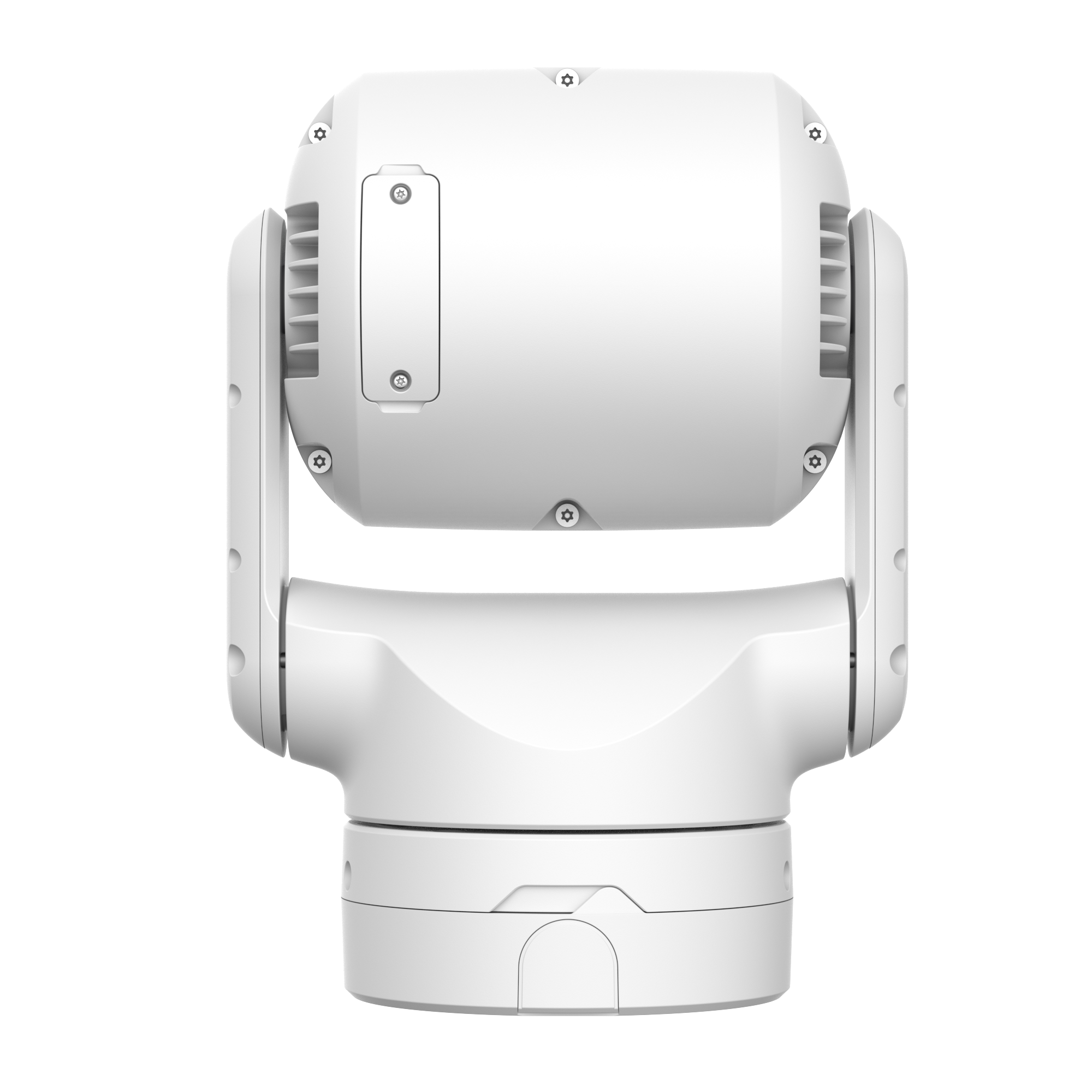

Hanwha - TNP-A9430RW - 4K AI IR, Ruggedized PTZ Positioning Camera
Part number:
Price:
• Max 8MP 43x
• Support Optical Image Stabilization
• IP66, IP68, NEMA4X
• NEMA TS-2 (2.2.7.2-8, 2.2.8, 2.2.9)
• IR viewable length 500 m
• Wind load max.160 mph
• Operating temperature : -50 ~60°C
• Analytics events based on an AI engine :
• Object detection (Person/Face/Vehicle/License plate),
• IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Slip&Fall detection, Motion detection
• Support BestShot and full attributes
• Support Dynamic Privacy Masking
• extremeWDR, WiseNRⅡ(Based on AI engine), WiseStream(Based on AI engine)
• Support Wisepower(Power monitoring, ECO mode)
• Device certificate(Hanwha Vision Root CA), Secure storage(Secure element with FIPS 140-3 level3/CC EAL6+ certified), SBOM
| Video | |
|---|---|
| Imaging Device Size | 1/1.8" |
| Type | CMOS |
| Resolution | 3840x2160, 2592x1944, 2592x1464, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@8MP Max. 5fps) |
| Min. Illumination (Lux) Color(1/30sec, 30IRE) | 0.06 Lux(F1.69, 1/30sec, 30 IRE) |
| BW(1/30sec, 30IRE) | 0.006 Lux(F1.69, IR LED Off), 0Lux (IR LED On) |
| Lens | |
| Focal Length (mm) | 6.1~262.4 |
| Zoom Ratio | Optical: 43 Digital: 1367 |
| Max Aperture Ratio (F number) | Wide: F1.69 Tele: F4.92 |
| Angular Field of View | Horizontal: 63.62°(Wide)~1.77°(Tele) Vertical: 37.69°(Wide)~0.99°(Tele) Diagonal: 70.9°(Wide)~2.05°(Tele) |
| Min. Object Distance | 5m(16.4ft) |
| Focus Control | Auto, Manual, Oneshot AF, Focus save |
| Lens Type | P iris(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Pan: 360° Endless Tilt Upright: 140°(50°~-90°), Canted: 165°(75°~-90°), Inverted: 140°(90°~-50°) |
| Pan Speed | Preset Max: 160°/sec Manual: 0.024°/sec~160°/sec |
| Tilt Speed | Preset Max: 160°/sec Manual: 0.024°/sec~160°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.07° |
| Operational | |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Optical Image Stabilization | Support |
| Defog | Support |
| Motion Detection Quantity | 8ea |
| Shape | 8point Polygonal zones |
| Privacy Masking Quantity | 32ea |
| Shape | 4point Quadrangle zones |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic |
| Dynamic Privacy Masking: Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium |
| Electronic Shutter Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 2~1/30,000sec |
| Video Rotation | Flip&Mirror |
| Installation Direction | Upright, Inverted, Canted |
| Alarm Interface | Others: Support alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription |
| Alarm Events | When Alarm Trigger Occurred File upload(image): e-mail/FTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Support via optional I/O box |
| Audio Out | Support via optional I/O box |
| Light Type | IR LED |
| Light Viewable Length | IR 500m(1,640.42ft) |
| IR Wavelength | 850nm |
| Water Removal | Support(with Wiper) |
| Ice Removal | Window, Pan |
| Auto Tracking | Support, Object auto tracking(Person/Vehicle), Target lock tracking |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes | Person: Upper/Lower clothes color, Gender, Bag Vehicle: Type(car, bus, truck, motorcycle, bicycle), Color Face: Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events | Based on AI Engine: Object detection, Virtual line(Crossing/Direction), Motion detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Auto tracking Normal: Tampering, Audio detection, Shock detection |
| Network | |
| Ethernet | RJ-45 Push-pull Connector(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming Unicast | Up to 20 users, Multicast Support, Multiple Streaming Up to 10 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, NTCIP 1205, Syslog |
| Application Programming Interface | ONVIF S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
| General | |
| SoC Type | Wisenet 9 |
| Dual NPU | Support |
| Memory RAM | 4GB |
| Flash | 8GB eMMC |
| Edge Storage | Micro SD/SDHC/SDXC Max. 1TB x 1slot |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition | Temperature: -50°C~+60°C(-58°F~+140°F) Humidity: 0~100% RH(condensing) Others: +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent |
| Storage Condition | Temperature: -50°C~+60°C(-58°F~+140°F) Humidity: 0~90% RH(non-condensing) |
| Wind Load | Sustained 257km/h (160mph) |
| EPA(Effective Projected Area) | 0.095㎡ |
| Input Voltage | PoE++(IEEE802.3bt type4, Class8) |
| Power Consumption | PoE: Max 71W, Typical 33.2W |
| WisePower | Power mode, Power monitoring, Eco mode |
| Mechanical | |
| Color | White, Black |
| Material | Aluminum, PC(Polycarbonate), ITO Glass |
| Material Management Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| RAL Code | RAL9003, RAL9005 |
| Product Dimensions | Upright Normal/Inverted : 293.4(W)x205.6(D)x399.9(H)mm (11.55x8.09x15.74") Upright Canted : 293.4(W)x301.9(D)x363.6.9(H)mm (11.55x11.89x14.31") |
| Product Weight | 10.5kg(9.5kg: Excluding installation part) |
| Certifications & Standards | |
| EMC | EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, EN 55035 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471, IEC/EN/UL 62368-1 GS UL cUL CE FCC VCCI CB |
| Environment | IEC 60529 IP66, IEC 60529 IP68, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, MIL-STD-810H 501.7, MIL-STD-810H 502.7, MIL-STD-810H 503.7, MIL-STD-810H 505.7, MIL-STD-810H 506.6, MIL-STD-810H 507.6, MIL-STD-810H 509.7, MIL-STD-810H 510.7, MIL-STD-810H 521.4, IEC 60068-2-52:2017, NEMA TS2, 2.1.9, NEMA TS2, 2.1.10, NEMA TS2, 2.2.4, NEMA 250, 5.6, ASTM B117 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/8PPF) | Wide: 123.8m(406.23ft) Tele: 4972m(16311ft) |
| Observe (63PPM/19PPF) | Wide: 49.5m(162.49ft) Tele: 1989m(6525ft) |
| Recognize (125PPM/38PPF) | Wide: 24.8m(81.25ft) Tele: 994.3m(3262ft) |
| Identify (250PPM/76PPF) | Wide: 12.4m(40.62ft) Tele: 497.2m(1631ft) |
Name
Description
Size
Downloads
File
Datasheet
1mb
This 4K AI ruggedized PTZ positioning camera is powered by the Wisenet 9 platform, delivering 3840 x 2160 resolution at 30fps. It features a 6.1mm to 262.4mm autofocus lens with Adaptive Wide IR up to 500 meters, Extreme WDR, Day & Night, optical image stabilization, handover support, AI-based WiseStream, WiseNR II, and a dynamic privacy mask. AI engine-based IVA events include motion detection, object detection, line crossing, IVA area and slip & fall detection. Classified object types include person, face, vehicle, and license plate with attributes for person, face, and vehicle supported by BestShot. Additional features include AI object auto-tracking with target lock, tampering, shock and audio detection. The camera is rated IP66/IP68, IK10, NEMA 4X, NEMA-TS 2, MIL-STD-810H, and ASTM B117 compliant, operating from -50°C to +60°C with wind load resistance up to 257 km/h. It includes a FIPS 140-3 Level 3 secure element, a microSD slot up to 1TB, and is powered by HPoE with a metal shielded RJ-45 connector.
