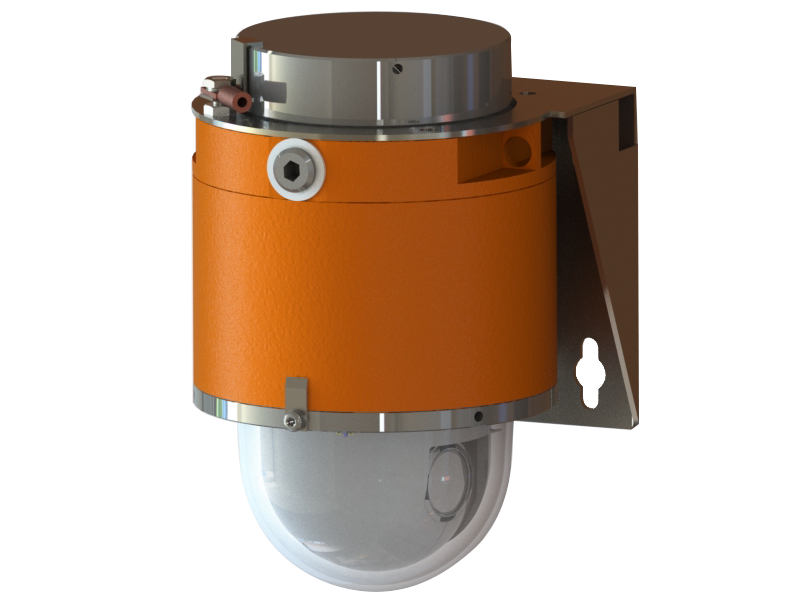

Explosion proof PTZ using the QNP-6230 (2MP @ 60fps), with 23x optical zoom. PoE+ powered, -20°C ~ +55°C (-4°F ~ +131°F), type 4x, IP66/IP67, FM (Factory Mutual) C1/D1 certification
Features:
- 2 MP (1920 x 1080) resolution, 23x optical zoom
- H.265, H.264, MJPEG codec support
- Multiple streaming, WiseStream II support
- Day & Night (ICR), WDR (120dB)
- DIS with Built-in Gyro sensor
- SD Memory slot (Maximum 256GB)
- Hazardous Rated for Class I II III Division 1 Groups B, C, D, E, F, G cFMus Approved and II 2 G Ex db IIB+H2 II 2 D Ex tb IIIC IECEX ATEX certified Patented design which includes a uniform constructed enclosure consisting of an integrated termination box manufactured directly into the camera housing
- Anodized aluminum housing
VIDEO
| Imaging Device | 1/2.8" 2.4 MP CMOS |
| Total / Effective Pixels | 1,981(H) x 1,288(V), 2.55 MP / 1,944(H) x 1,212(V), 2.35 MP |
| Scanning System | Progressive |
| Minimum Illumination | Color : 0.2 Lux (F1.6), B/W : 0.01 Lux (F1.6) |
| S / N Ratio | 50dB |
LENS
| Focal Length (Zoom Ratio) | 4.44 ~ 102.2mm (Optical 23x) |
| Maximum Aperture Ratio | F1.6 (Wide) / F3.6 (Tele) |
| Angular Field of View | H : 61.8˚ (Wide) ~ 3.08˚ (Tele) / V : 36.2˚ (Wide) ~ 1.73˚ (Tele) |
| Minimum Object Distance | Wide : 1.5m (4.92ft), Tele : 2m (6.56ft) |
| Focus Control | Auto / Manual / One shot AF |
| Lens / Mount Type | DC Auto Iris / Board-in type |
PAN / TILT / ROTATE
| Pan / Tilt Range | 360˚ Endless / 210˚ (-15˚ ~ 195˚) |
| Pan / Tilt Speed | Preset : 500˚/sec, Manual : 0.024˚/sec ~ 200˚/sec |
| Sequence | Preset (300ea), Swing, Group (6ea), Trace, Tour (1ea), Auto run, Schedule |
| Preset Accuracy / Azimuth | ±0.2˚ / Yes (E / W / S / N / NE / NW / SE / SW) |
OPERATIONAL
| Camera Title | Off / On (Displayed up to 85 characters) - English / Numeric / International characters / Special characters - Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) / Color / B/W / Schedule |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On (Built-in Gyro sensor) |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (8ea, Polygonal) |
| Privacy Masking | Off / On (24 rectangular zones) - Color : Gray / Green / Red / Blue / Black / White / Mosaic - Zoom ratio option for mask mode |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (including mercury & Sodium) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec) |
| Digital Zoom | 32x |
| Flip / Mirror | Off / On |
| Intelligent video analytics | Tampering detection, Motion detection |
| Input 4ea / Output 2ea (Relay) | |
| RS-485- Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell | |
| Alarm Triggers | Motion detection, Tampering detection, Network disconnect |
| Alarm Events | File upload Via FTP and E-mail, Notification Via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) or NAS recording at alarm triggers, Preset |
| Pixel counter | Support |
NETWORK
| Ethernet | RJ-45 (10/100 BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC), MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Maximum Framerate | H.265 / H.264 : 30fps at all resolutions, MJPEG : 30fps at all resolutions |
| Smart Codec | Manual mode (Area-based : 5ea) |
| WiseStreamII | Support |
| Video Quality Adjustment | H.265 / H.264 / MJPEG : Target bitrate level control |
| Bitrate Control Method | H.265 / H.264 : CBR or VBR, MJPEG : VBR |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Security | HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP) Unicast / Multicast |
| Streaming Method | |
| Maximum User Access | 20 users at Unicast mode |
| Edge Storage | Micro SD/SDHC/SDXC 2 slots (up to 512 GB) - Continuous recording (1st slot to 2nd slot) Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage), Local PC for instant recording |
| Application Programming Interface | ONVIF Profile S/G, SUNAPI 2.0 (HTTP API), Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Plug-in Free Webviewer - Supported Browser : Google Chrome, MS Edge, Mozilla Firefox (Window 64bit only), MS Explorer 11, Apple Safari 10 (Mac OS X only) |
| Central Management Software | Wisenet WAVE, SmartViewer, SSM |
ENVIRONMENTAL
| Operating Temperature / Humidity | -20°C ~ +55°C (-4°F ~ +131°F) /Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Ingress Protection | Type 4x / IP66 |
ELECTRICAL
| Input Voltage / Current | PoE+ (IEEE802.3at, Class4) |
| Power Consumption | Maximum 24W |
MECHANICAL
| Color / Material | RAL2000-Yellow Orange / Anodized Aluminum |
| Dimensions (WxH) | Ø8.6" x 15.82") |
| Weight | 28 lb (12.7Kg) |
