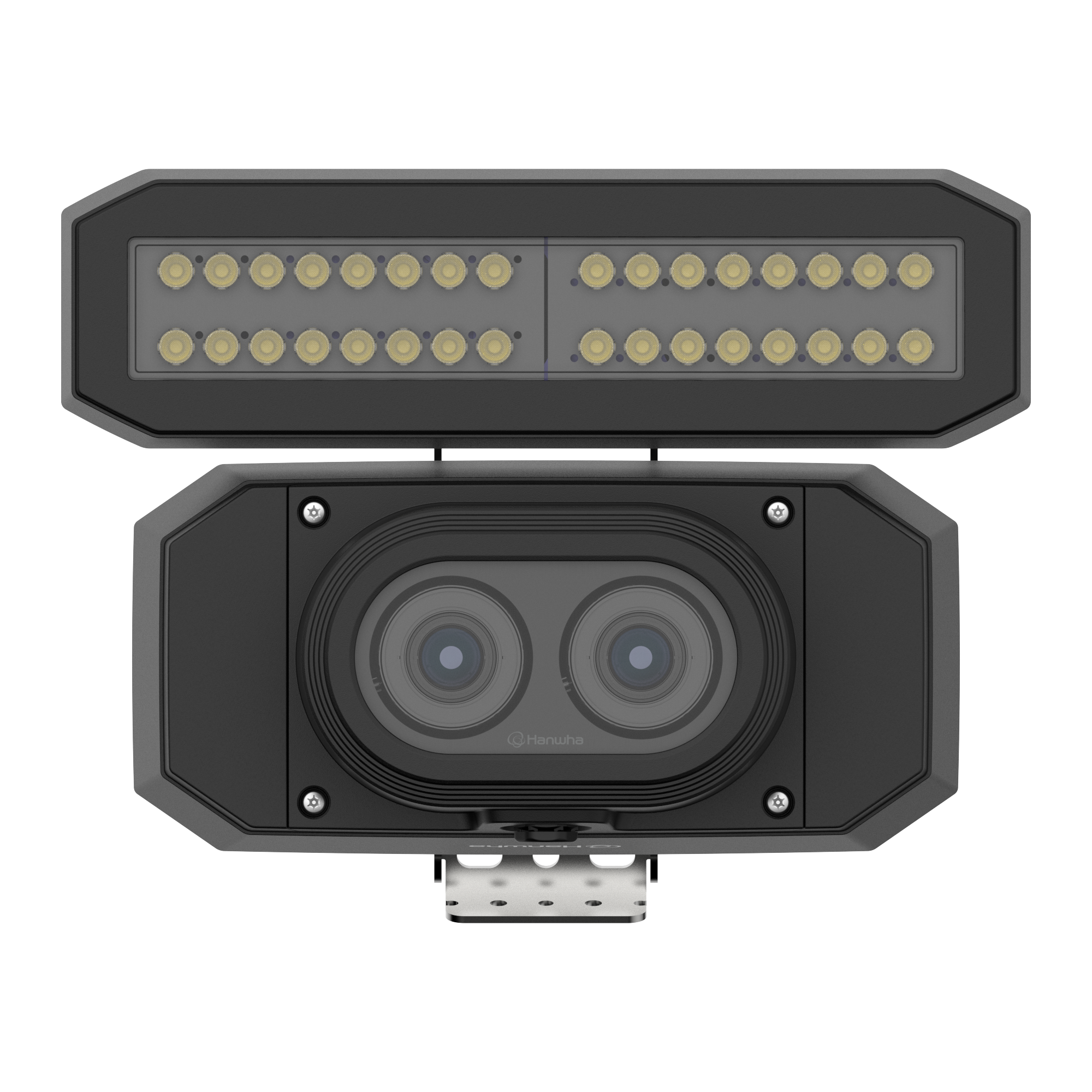

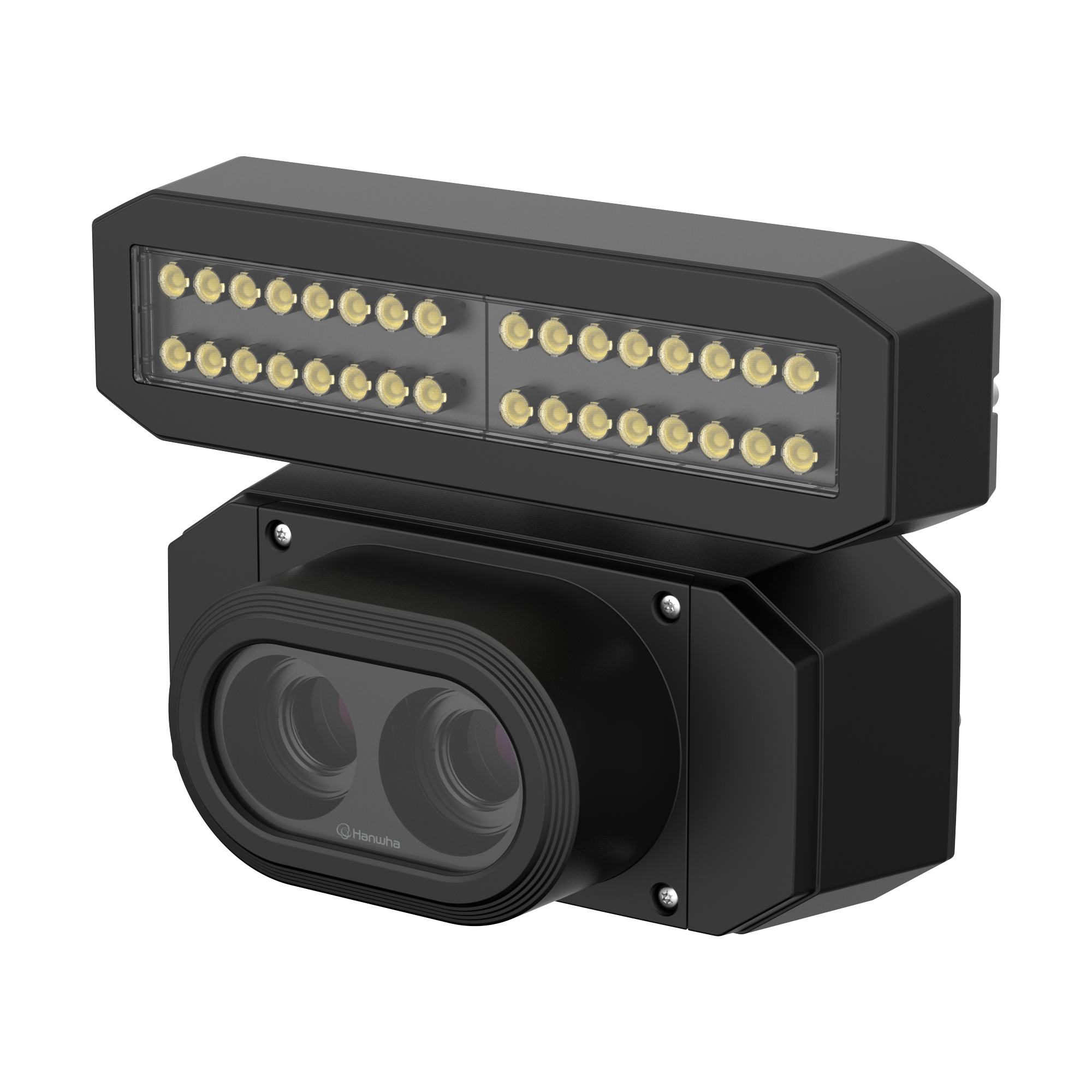

Hanwha - TNS-9040IBC - 4K Dual Sensor BCR Camera
• Dual Global Sensor for Barcode Reading and Video Monitoring
• 16mm Fixed (Ultra-Wide FoV)
• AI barcode location search
• 1D Code is available
• Reinforced durability
• IP66, IP67, IK10, NEMA TS-2 2.2.9, M12 8pin Ethernet connect
• Humidity control with AIR vent, EN 60068-2-6(vibration resistance)
• EN 60068-2-27 (shock resistance)
• Operating temperature -40°C ~ + 55°C
| Video | |
|---|---|
| Imaging Device | Global Shutter Mono 1" CMOS Global Shutter Color 1" CMOS |
| Resolution | Mono: Max 4096x2160 Color: Max 4096x2160 |
| Max. Framerate | Mono: Max 20fps Color: Max 20fps |
| Pixel Size | 3.45μm(H)×3.45μm(V) |
| Lens | |
| Focal Length (Zoom Ratio) | 16mm |
| Max. Aperture Ratio | Mono: F8.0 Color: F8.0 |
| Angular Field of View | Mono: H47.5° / V26.9° / D53.2° Color: H47.5° / V26.9° / D53.2° |
| Min. Object Distance | 0.15m (0.49ft) |
| Focus Control | Manual |
| Lens Type | Manual |
| Mount Type | C Mount |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Digital Noise Reduction | SSNRⅤ |
| Gain Control | Manual, 0~48dB |
| White Balance | AWC / Manual |
| Electronic Shutter Speed | Manual 1/10,000~1/30s (100us ~ 33.33ms) |
| Video Rotation | Flip, Mirror |
| Analytics | Barcode recognition - 1D Code: Code128 / CODE39 / CODE93 / Codabar / ITF(Interleaved 2 of 5) / UPC / EAN - 2D Code: QR code / DataMatrix / Maxicode / PDF417 |
| Alarm I/O | Out 1EA |
| Light Type | White LED, M12 5pin connector |
| Network | |
| Ethernet | M12 8pin connector (10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Mono: (1) 4096x2160 @ 15/18/20fps all codec Color: (1) 4096x2160 @ 15/18/20fps all codec, (2) 640x360 @ 15/18/20fps all codec |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP (TCP, UDP Unicast), MQTT |
| Application Programming Interface | SUNAPI(HTTP API) Wisenet Open Platform ONVIF Profile M |
| Security | |
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | IP address filtering |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log |
| Device ID | Device Certificate(Hanwha Techwin Root CA, pre-installed) |
| Secure Storage | HTPM (Hanwha Trusted Platform Module) |
| Security Certificate | Secure by default |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Support |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / 0~95% RH * Start up should be done at above -30°C NEMA TS-2: 74°C / 0~95% RH |
| Storage Temperature / Humidity | -40°C ~ +60°C(-40°F ~ +140°F) / Less than 95% RH |
| Certification | IP67, IP66, IK10(Exclude Window), NEMA 4X |
| Input Voltage | 24VDC, M12 12pin connector |
| Power Consumption | Max 28.6W, Typical 13.7W * Max: LED On, Typical: LED Off |
| Mechanical | |
| Color / Material | Black / Aluminum |
| RAL Code | RAL9005 |
| Product Dimensions / Weight | Camera: 218x104.1x127.1mm, 1897g LED: 255.8x73.8x49.8mm, 996g Total: 255.8x181x127.1mm, 3438g(with install bracket) |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | EN 60068-2-6 (variation resistance) EN 60068-2-27 (shock resistance) NEMA TS-2 2.2.9 (shock resistance) IEC/EN 60529 IP67, IP66 IEC/EN 62262 IK10 |
This 4K dual sensor barcode recognition camera features global shutter 1" CMOS sensors for both mono and color channels, delivering 4096x2160 resolution at up to 20fps with 3.45μm pixel size. It includes a manual 16mm lens with F8.0 aperture, providing a 47.5° horizontal field of view, and supports H.265/H.264/MJPEG compression. Video enhancements include SSNR V noise reduction, manual gain control (0-48dB), AWC/manual white balance, and electronic shutter speeds from 1/10,000 to 1/30 seconds. A white LED light with M12 5-pin connector is included for illumination.
AI analytics include barcode recognition supporting 1D codes (Code128, CODE39, CODE93, Codabar, ITF, UPC, EAN) and 2D codes (QR code, DataMatrix, Maxicode, PDF417). The camera features secure boot, signed firmware, firmware encryption, digest authentication, 802.1X authentication, HTTPS, SRTP, IP address filtering, and HTTP Secure Storage. It is rated IP66, IP67, IK10 (excluding window), and NEMA 4X, operating from -40°C to +55°C (startup above -30°C). The camera includes 4GB RAM, 512MB flash, one alarm output, and is powered by 24VDC (M12 12-pin connector) with typical power consumption of 13.7W (28.6W with LED on).
