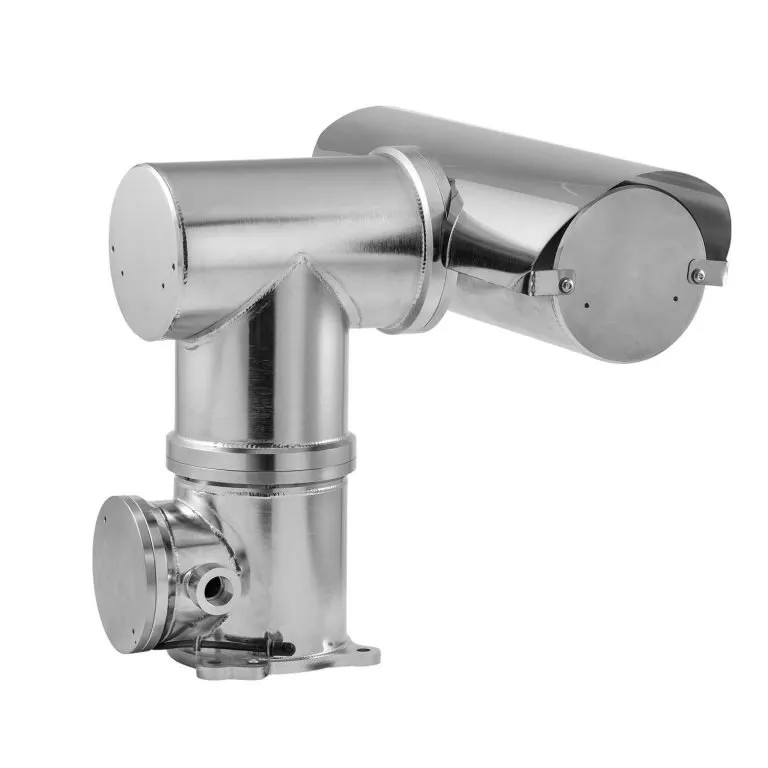

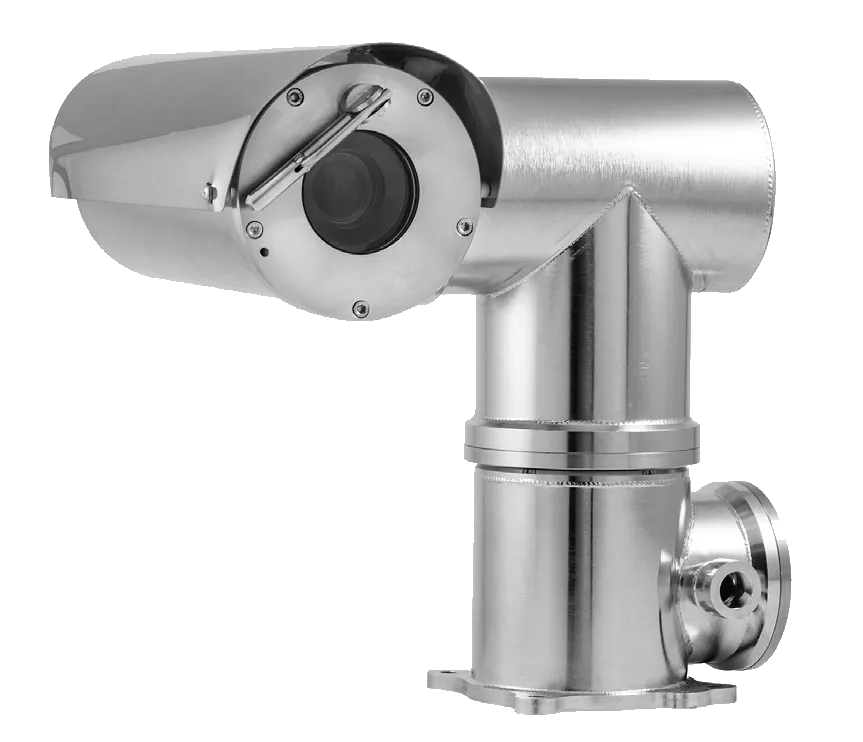

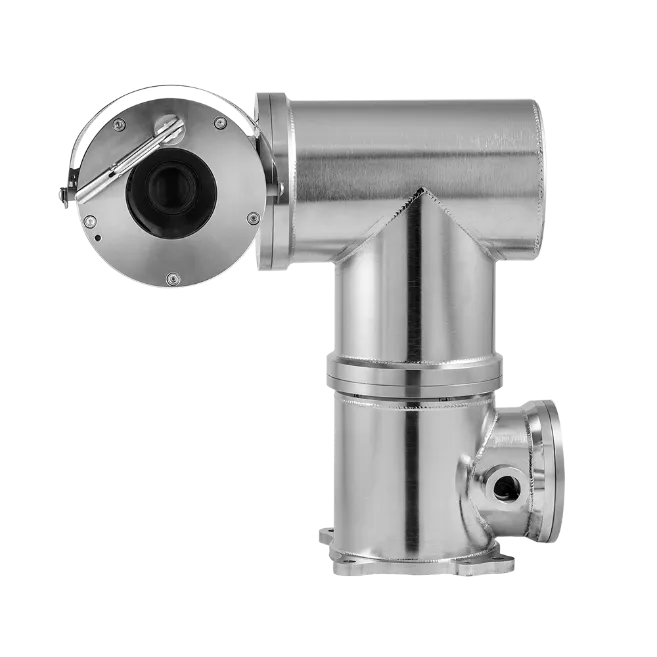

The TNU-X6320A series is an explosion-protected PTZ camera station for use in hazardous areas in onshore, offshore, marine, and heavy industrial environments. The base unit carries dual NPT cable entries with easy access for cable termination during installation as standard, maximizing compatibility and ease of use with existing fixed conduit installations.
Features:
- 2MP (1920 x 1080) resolution
- 4.44-142.6mm (32x) optical zoom, 16x digital zoom
- H.265, H.264, MJPEG triple codec, WiseStream II
- DIS with built-in Gyro sensor
- Day & Night (ICR), WDR (120dB)
- Video Analytics, dual SDXC memory slots
- cLCus C1/D1 certified, INMETRO certified
- Electro-polished 316L stainless steel on all welded assemblies
- Camera station window in toughened glass
- Integrated Wiper
- 24VAC Supply voltage
- -40°C ~ +60°C (-40°F ~ +140°F) Operating temperature
- IP66/IP67 rated
| TNU-X6320A* series | |
| VIDEO | - |
| Image Sensor | 1/2.8" 2.4 MP CMOS |
| Resolution | Resolution: 1920x1080 to 320x180; 60fps at all resolutions (H.265/H.264) |
| Lens | 32x optical 16x digital zoom 4.44-142.6 mm F1.6 to F4.4, horizontal angle of view 62.8° - 2.23° |
| Pan / Tilt Range | 360° Endless / 180° |
| Pan / Tilt Speed | 45° per second / 24° per second |
| Minimum Illumination | Color : 0.05Lux (1/30sec, F1.6, 50IRE) B/W : 0.005Lux (1/30sec, F1.6, 50IRE) |
| Streaming | H.265, H.264, MJPEG triple codec, multiple streaming, VBR/CBR, WiseStream II |
| Features | Intelligent video analytics, motion detection, day & night (ICR), WDR (150dB), HLC, auto focus, auto iris, AGC, SSDR, SSNRIII, BLC, Gyro DIS, Defog |
| Standards Protocols | ONVIF Profile S, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Sun Shield | Standard stainless steel 316L mirror finish |
| Integral Wiper | Silicone wiper blades that are resistant and do not perish after long exposure to ozone, UV, ice, snow, heat or cold |
| Integral Fiber (Optional) | Built-in fiber module (Duplex single-mode 9/125μm) (F2 Models only) |
| Ingress Protection Rating | IP66/67 |
| Temperature Rating | T1: -40°C ~ +60°C (-40°F ~ +140°F); T2: -60°C ~ +60°C (-76°F ~ +140°F) |
| Input Voltage | 24 VAC or 110 VAC depending on model |
| Power Consumption | Up to 80W Maximum, depending on model |
| Cable Entry | 2 x M25 entries located in base |
| Body Material | Electro-polished 316L stainless steel on all welded assemblies |
| Fixings Material | A4 stainless steel |
| Camera Station Window | Toughened glass |
| INMETRO | Ex d IIC T4 (T5 On Request) Gb -60° C ≤Ta ≤+60°C Ex tb IIIC T135° C Db IP66/67. Certificate Number: TUV 12.1080X / TUV 12.1081X |
| cLCus C1/D1 | Class I, Division 1, Groups B,C,D, -60°C≤Ta≤60°C T4/ Class II,Division 1, Groups E, F, G IP67 CSA-C22.2 No:30-M1986 No:25-1966(R2009) CSA-C22.2 No:6006503(R2012) & UL1203,UL60065(ED.7). Certificate Number: 11671-1S / 11677-1S |
| cLC CSA | Ex d IIC T4 (T5 On Request) LC1311396 -60°C≤Ta≤+60°C. CAN CSA-C22.2 No.60079-0:2011 & 60079-1-2011. Certificate Number: 11396- 1S-CSA |
| Weight | Up to 33Kg (73lb) |
