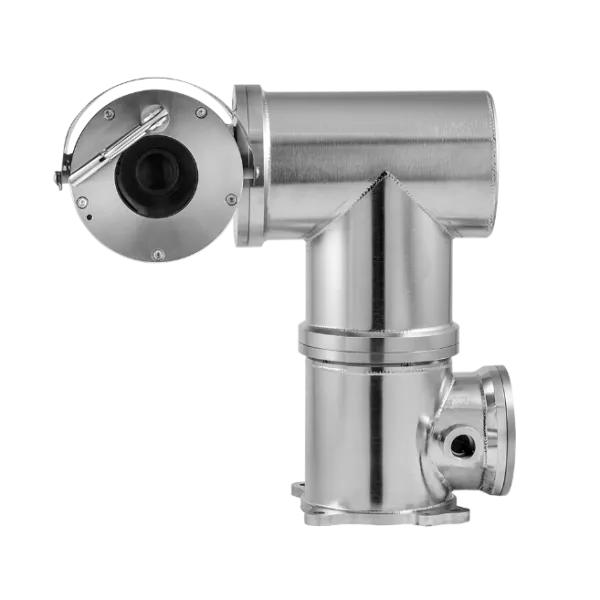

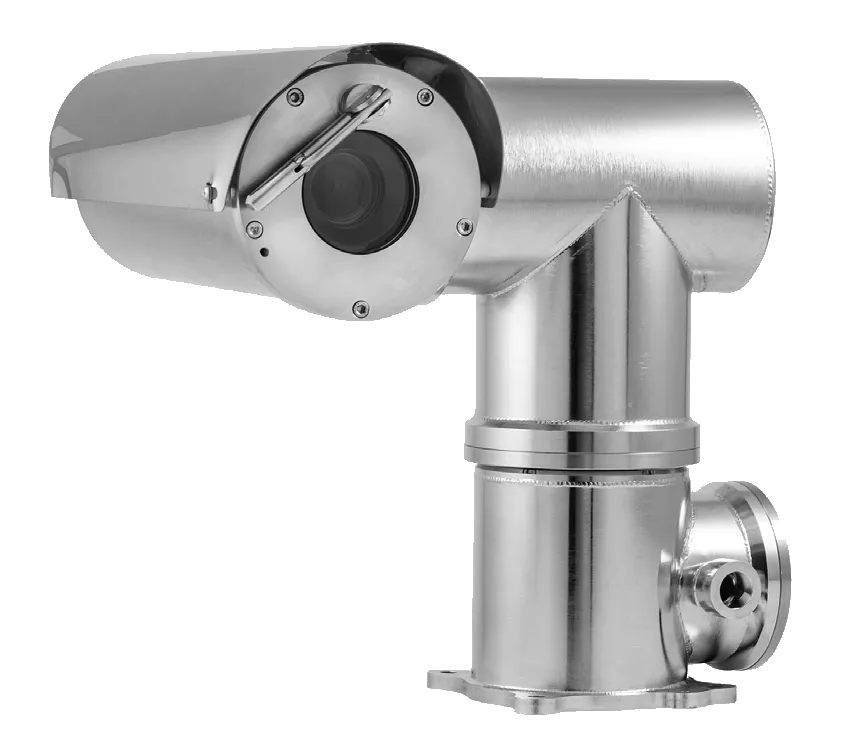

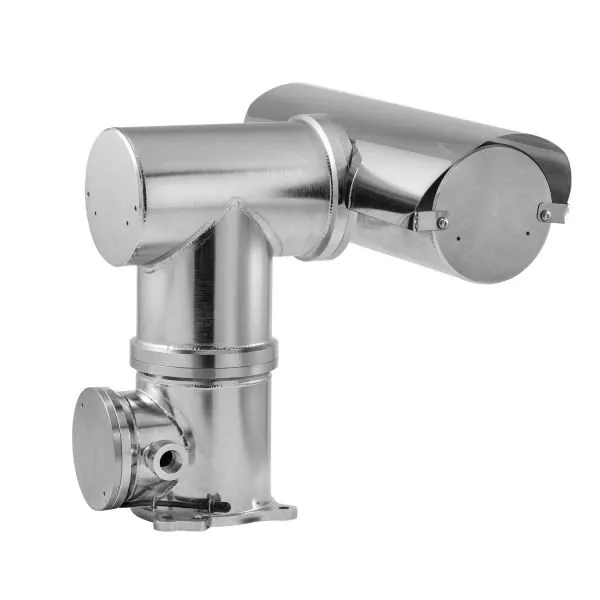

Hanwha - TNU-X6320A2WT1-Z - Explosion Proof Positioning Camera
Part number:
TNU-X6320A2WT1-Z
Price:
The TNU-X6320A series is an explosion-protected PTZ camera station for use in hazardous areas in onshore, offshore, marine, and heavy industrial environments. The base unit carries dual NPT cable entries with easy access for cable termination during installation as standard, maximizing compatibility and ease of use with existing fixed conduit installations.
Features:
- 2MP (1920 x 1080) resolution
- 4.44-142.6mm (32x) optical zoom, 16x digital zoom
- H.265, H.264, MJPEG triple codec, WiseStream II
- DIS with built-in Gyro sensor
- Day & Night (ICR), WDR (120dB)
- Video Analytics, dual SDXC memory slots
- cLCus C1/D1 certified
- Electro-polished 316L stainless steel on all welded assemblies
- Camera station window in toughened glass
- Integrated Wiper
- 110VAC Supply voltage
- -40°C ~ +60°C (-40°F ~ +140°F) Operating temperature
- IP66/IP67 rated
| VIDEO | |
| Imaging Device | 1/2.8" 2.4 MP CMOS |
| Total Pixels | 1981(H) x 1288(V), 2.55 MP |
| Effective Pixels | 1944(H) x 1212(V), 2.35 MP |
| Scanning System | Progressive scan |
| Minimum Illumination | Color : 0.05 Lux (1/30 sec, F1.6) B/W : 0.005 Lux (1/30 sec, F1.6) |
| S / N Ratio | 50dB |
| LENS |
| Focal Length (Zoom Ratio) | 4.44 ~ 142.6mm (Optical 32x) |
| Maximum Aperture Ratio | F1.6 (Wide) / F4.4 (Tele) |
| Angular Field of View | H : 64.66˚(Wide) ~ 2.29˚(Tele) / V : 38.08˚(Wide) ~ 1.30˚(Tele) |
| Minimim Object Distance | Wide 1.5m (4.92ft), Tele 2m (6.56ft) |
| Focus Control | Auto / Manual / One shot AF |
| Lens Type | DC auto iris |
| Mount Type | Board-in type |
| OPERATIONAL |
| Camera Title | Off / On (Displayed up to 85 characters)
|
| Day & Night | Auto (ICR) / Color / B/W / Schedule |
| Backlight Compensation | Off / WDR / BLC / HLC |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement | SSDR (On / Off) |
| Digital Noise Reduction | SSNR5 (2D+3D noise filter) (On / Off) |
| Digital Image Stabilization | On / Off (Built-in gyro sensor) |
| Defog | Off / Manual / Auto |
| Motion Detection | On / Off (8ea, Polygonal) |
| Privacy Masking | On / Off (24 Zones of rectangle zone)
|
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1 ~ 1 / 12,000sec) |
| Digital Zoom | 32x |
| Flip / Mirror | On / Off |
| Video Analytics | Tampering, Loitering, Directional/Virtual Line detection, Fog detection, Enter/Exit, Appear/Disappear, Face detection, Motion detection, Shock detection |
| Alarm Triggers | Motion detection, Video analytics, Network disconnect |
| Alarm events | File upload via FTP and E-Mail, Notification via E-Mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) or NAS recording at alarm triggers, Handover/Preset |
| Pixel counter | Support |
| NETWORK |
| Ethernet | RJ-45 (10/100BASE-T) / Duplex single mode 9/125μm module (F2 models) |
| Video Compression Format | H.264 (MPEG-4 Part 10/AVC), H.265, Motion JPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Maximum Framerate | H.264 / H.265 : Maximum 60fps at all resolutions Motion JPEG : Maximum 30fps at all resolutions |
| Smart Codec | Manual mode (Area-based : 5ea) |
| WiseStreamⅡ | Support |
| Video Quality Adjustment | H.264 / H.265 / MJPEG : Target bitrate level control |
| Bitrate Control Method | H.264 / H.265 : CBR or VBR Motion JPEG : VBR |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X Authentication (EAP-TLS, EAP-LEAP), Device certificate |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 20 users at Unicast mode |
| Edge Storage | Micro SD/SDHC/SDXC 2 slots (up to 512 GB total capacity)
|
| Application Programming Interface | ONVIF Profile S/G, SUNAPI 2.0 (HTTP API), Wisenet Open Plarform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, 11 Mac OS X 10.10, 10.11, 10.12 Plug-in Free Webviewer supported browser : Google Chrome, Microsoft Edge, Microsoft Internet Explorer, Mozilla Firefox (Windows 64-bit only) , Apple Safari 10 (Mac OS X only) |
| Central Management Software | Wisenet WAVE |
