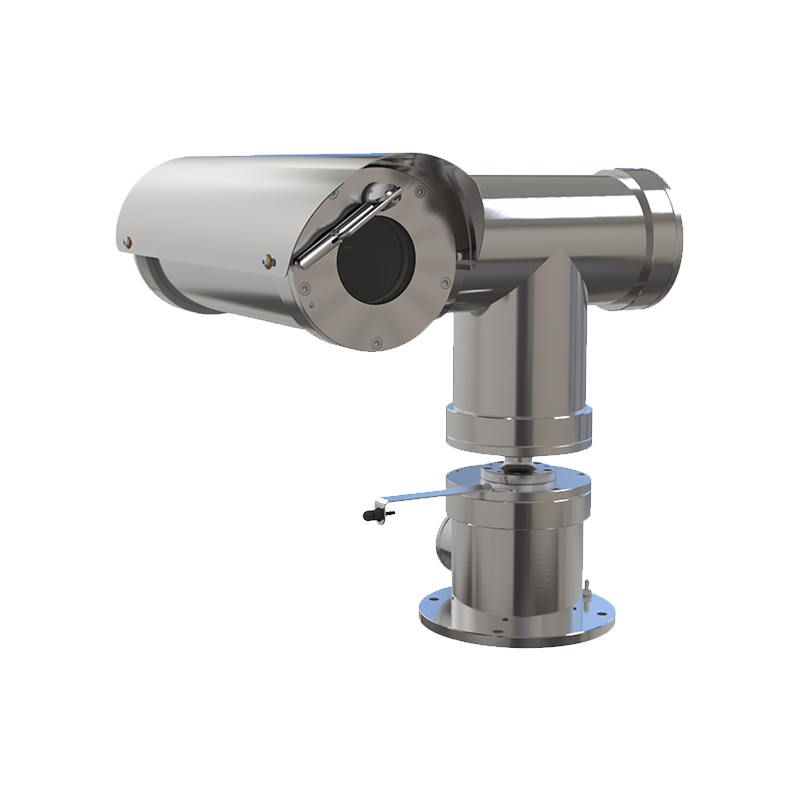

Hanwha - TNU-X6320E1F2WT1-Z - Explosion Proof PTZ Camera
Part number:
TNU-X6320E1F2WT1-Z
Price:
Explosion proof positioning camera using the XNZ-6320 24VAC Only, Single Mode Fiber with Wiper, cLCus C1/D1 certification, -40°C ~ +60°C (-40°F ~ +140°F), IP66/IP67, "-Z" for cLCus C1/D1
Features:
- 1080p @ 60fps
- PTZ with 32x optical zoom with auto focus
- Multiple streaming
- Intelligent video analytics, wiper
- Wide Dynamic Range (150dB)
- Built-in dual micro SD/SDHC/SDXC memory slots
- 24VAC Power
| Technical Specifications | |
| VIDEO | |
| Imaging Device | 1/2.8" 2.4 MP CMOS |
| Total Pixels | 1981(H) x 1288(V), 2.55 MP |
| Effective Pixels | 1944(H) x 1212(V), 2.35 MP |
| Scanning System | Progressive scan |
| Minimum Illumination | Color : 0.05 Lux (1/30 sec, F1.6) B/W : 0.005 Lux (1/30 sec, F1.6) |
| S / N Ratio | 50dB |
| LENS | |
| Focal Length (Zoom Ratio) | 4.44 ~ 142.6mm (Optical 32x) |
| Maximum Aperture Ratio | F1.6 (Wide) / F4.4 (Tele) |
| Angular Field of View | H : 61.8˚(Wide) ~ 2.19˚(Tele) / V : 36.2˚(Wide) ~ 1.24˚(Tele) |
| Minimim Object Distance | Wide 1.5m (4.92ft), Tele 2m (6.56ft) |
| Focus Control | Auto / Manual / One shot AF |
| Lens Type | DC auto iris |
| Mount Type | Board-in type |
| OPERATIONAL |
| Camera Title | Off / On (Displayed up to 85 characters) - English / International / Numeric / Special characters - Multi-line (Maximum 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) / Color / B/W / Schedule |
| Backlight Compensation | Off / WDR / BLC / HLC |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (On / Off) |
| Digital Noise Reduction | SSNR5 (2D+3D noise filter) (On / Off) |
| Digital Image Stabilization | On / Off (Built-in gyro sensor) |
| Defog | Off / Manual / Auto |
| Motion Detection | On / Off (8ea, Polygonal) |
| Privacy Masking | On / Off (24 Zones of rectangle zone) - Color : Grey / Green / Red / Blue / Black / White - Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1 ~ 1 / 12,000sec) |
| Digital Zoom | 32x |
| Flip / Mirror | On / Off |
| Video Analytics | Tampering, Loitering, Directional/Virtual Line detection, Fog detection, Enter/Exit, Appear/Disappear, Face detection, Motion detection, Shock detection |
| Alarm Triggers | Motion detection, Video analytics, Network disconnect |
| Alarm events | File upload via FTP and E-Mail, Notification via E-Mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) or NAS recording at alarm triggers, Preset |
| Pixel counter | Support |
| NETWORK |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.264 (MPEG-4 Part 10/AVC), H.265, Motion JPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
