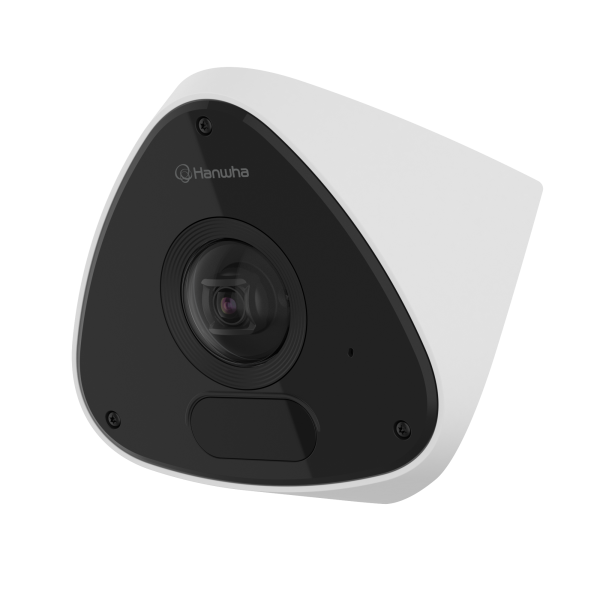

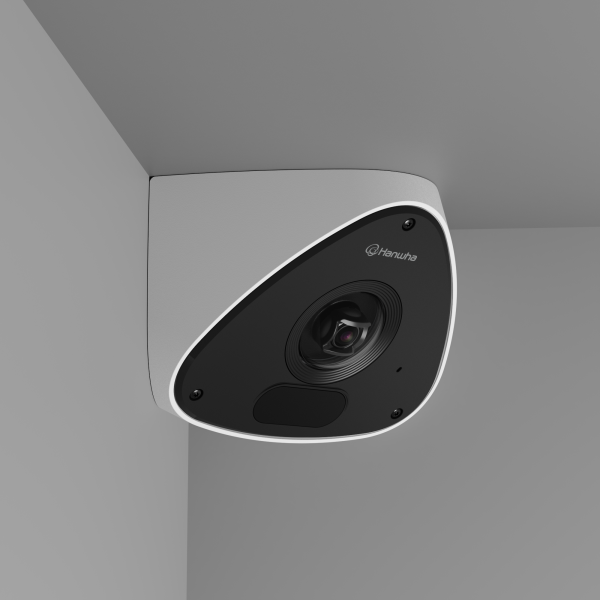

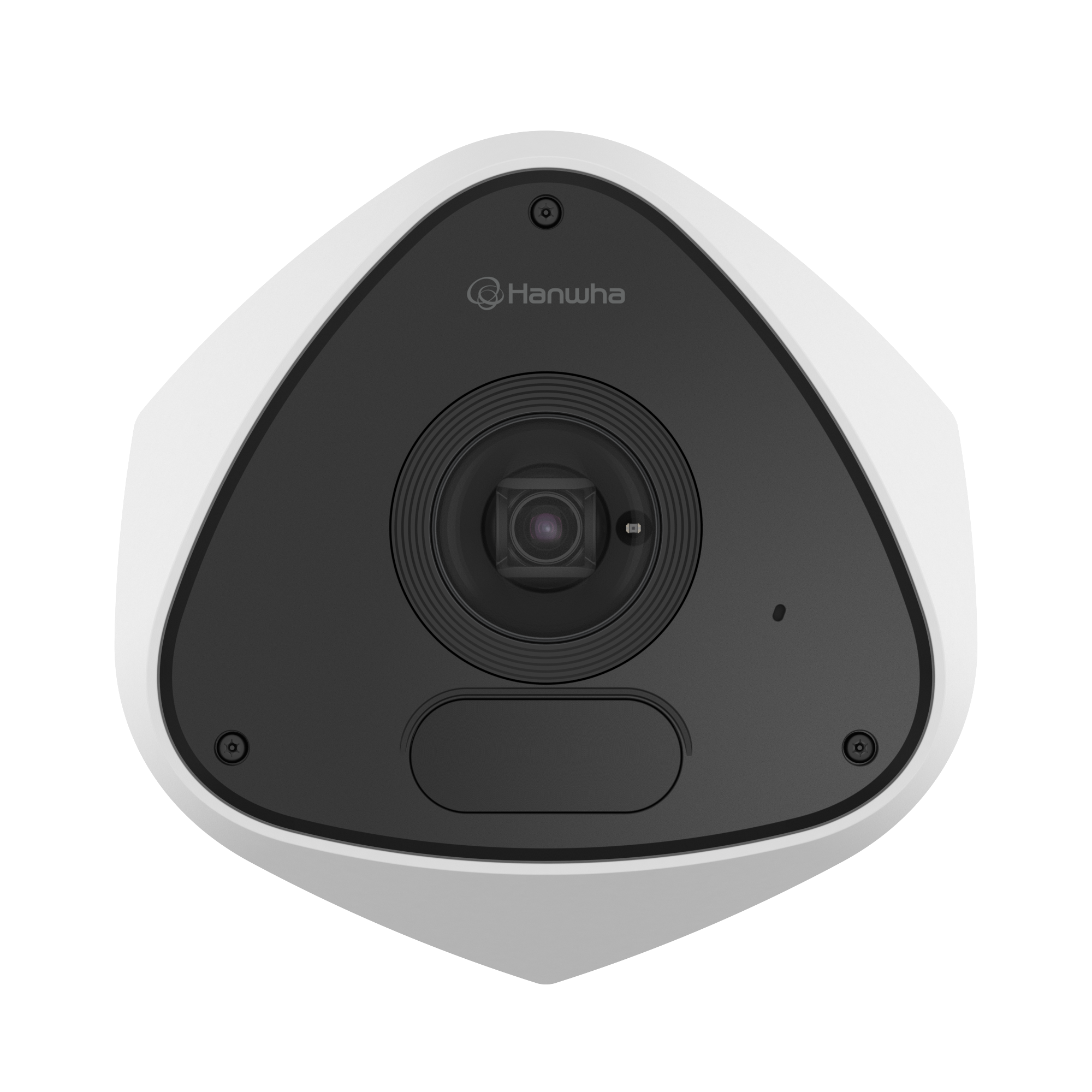

The Wisenet 7 network outdoor corner mount camera brings AI intelligence into an anti-ligature camera design. Utilizing 940nm IR, it can provide 24x7 monitoring without the glow from conventional IR LEDs which can distress inmates and visitors to mental, behavioral, or medical facilities. This compact form factor easily fits in the corner of a room while providing a full unobstructed view to ensure safety.
Features:
- Anti-ligature design for corrections and behavioral health facilities
- 3 Megapixel (2048 x 1536) resolution
- 30fps @ all resolutions (H.265/H.264/MJPEG)
- Invisible 940nm IR LED with 15m (49.21ft) Wise IR
- 0.3 lux @ F2.0 (Color), 0 lux @ F2.0 (B/W)
- Built-in fixed lens 2.39mm (H:128°, V:100°)
- H.265, H.264, MJPEG triple codec support, Multiple streaming
- extremeWDR 120dB, Improve image quality based on AI (WiseStreamIII, WiseNRII, prefer shutter control)
Classified object type: Person/Face/License Plate/Vehicle (car, truck, bus, bicycle, motorcycle), Analytics events based on AI engine: IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
- AI Clothing color detection (Orange/Black/Red) to alert on inmates in prohibited areas, in color mode only
- Day & Night
- microSD/SDHC/SDXC memory slot (Maximum. 256GB)
- Hallway view, WiseStream II support
- PoE, DC 12V, IK10+, IP66, IP6K9K
- Built-in mic/audio input support
- Operating Temperature -10°C ~ +55°C (14°F ~ +131°F)
- Conduit compatible when used with optional SPG-VAN13W, not for use in anti-ligature environments
| Video | |
| Imaging Device | 1/1.8" progressive CMOS |
| Resolution | 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240. |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@3MP Max. 5fps) |
| Min. Illumination | Color: 0.04Lux(F2.0, 1/30sec, 30IRE) BW: 0.04Lux(F2.0, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 2.39mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 128°, V: 100° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR (120dB) |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones - Color: Gray/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Off / Max Gain / Manual |
| White Balance | ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control(Based on AI engine) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Classified object type : Person/Face/Vehicle/License plate Support DetectionShot Analytics events based on AI engine
|
| Alarm I/O | 2 configurable I/O ports * Support Alarm via optional SPM-4210 I/O box |
| Alarm Events | When alarm trigger occurred
|
| Audio Out | Line out, Max. output level: 1Vrms |
| IR Viewable Length | Wise IR 15m(49.21ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Security | TPM 2.0(FIPS 140-2 level 2) HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 1TB |
| Memory | 4096MB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C (14°F ~ +131°F) 0~95% RH(non-condensing) Humidity control /w AIR vent |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / 0~90% RH |
| Certification | IP66, IP6K9K, IK10+ |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 12.95W, typical 9.7W DC : Max 12.7W, typical 9.0W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | 198.3(W)x104.8(H)x198.6(D)mm(7.87"x4.13"x7.82"), 1,935g (4.27lb) |
| Certifications & Standards |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66, ISO 20653 IP6K9K, IEC/EN 62262 IK10+ |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 35.1m(115.16ft) |
| Observe (63PPM/ 19PPF) | 14m(45.93ft) |
| Recognize (125PPM/ 38PPF) | 7.0m(22.97ft) |
| Identify (250PPM/ 76PPF) | 3.5m(11.48ft) |
