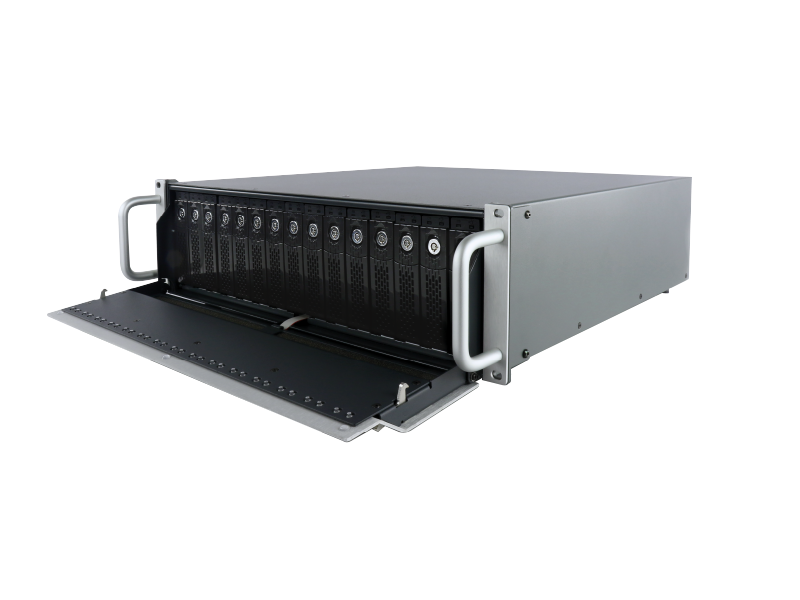

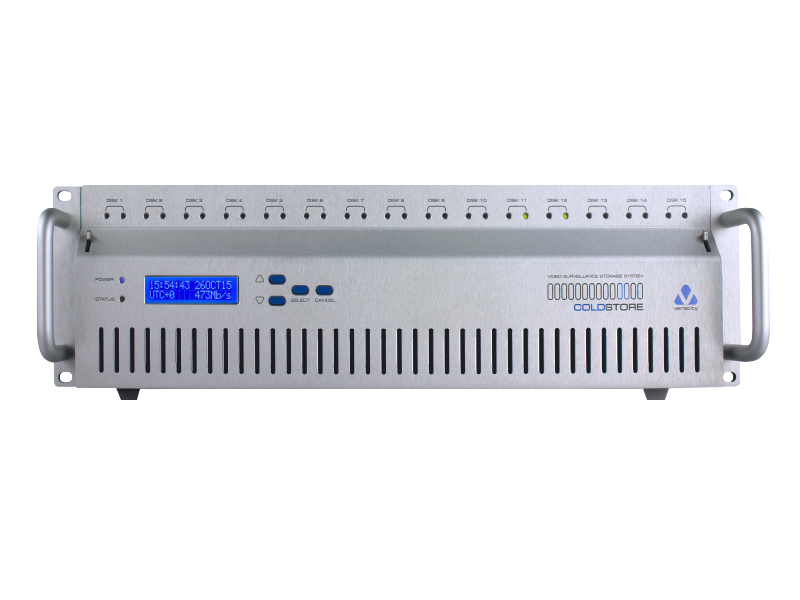

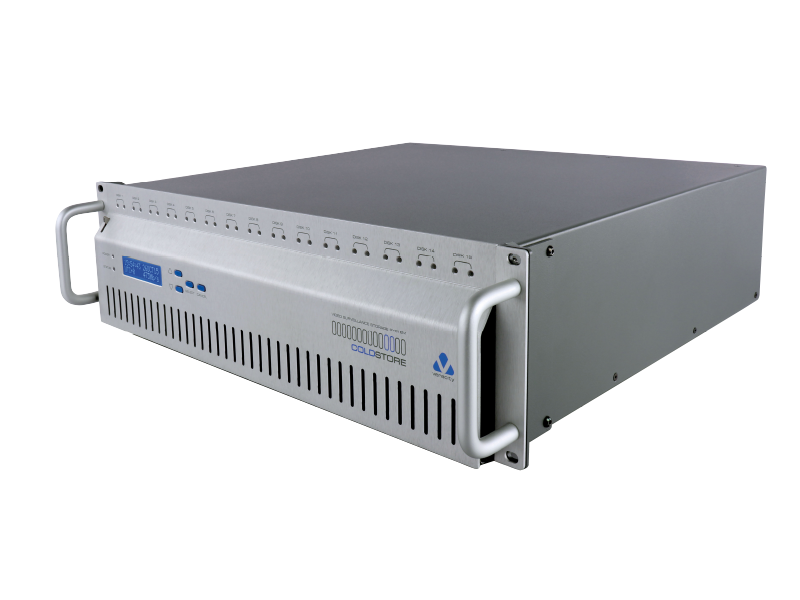

Veracity Coldstore 3U, 400mbps, L.A.I.D with SFS disk filing system, requires WAVE Server (not included) to operate, 15 internal SATA HDD bays, 210TB raw (effective: 196TB Normal COLDSTORE mode)
COLDSTORE is a network-attached storage system designed specifically for surveillance video applications. It uses an award-winning sequential storage approach which is ideal for recording real-time data such as IP video, audio, and meta-data. This delivers extremely high disk reliability, high performance, very low power consumption and low overall Total Cost of Ownership (TCO). Any size of SATA drive may be used in each of the 15 drive bays to provide up to 210TB (with 14TB drives). Optional accessories include Veracity Coldstore 3U Rack Rail (VER-CSTORERAIL) and the Veracity Coldstore 3U HDD Cradle (VER-CSTORECRDL).
Features:
- Network storage system for high capacity, long retention and low TCO
- Massive 210TB capacity using only 60 watts in 3U format
- Unique sequential writing system incorporating LAID and SFS
- Designed specifically for video surveillance storage
- Designed for optimum disk performance and extreme disk reliability
| Technical Specifications | |
| GENERAL | |
| Storage array type | Networked attached sequential array running L.A.I.D. with S.F.S. disk filing system |
| Drive bays | 15” x 3.5” (lockable drive trays included) |
| Interface | Dual Gigabit Ethernet |
| Data throughput | 400Mbit/sec (unlimited scalability with multiple COLDSTORE units) |
| SYSTEM | |
| O.S. | Embedded Linux on solid state memory |
| Time synchronization | Via NTP (recommended) |
| System integration | Wisenet WAVE VMS (all Windows versions, via VMS server software plug-in) |
| Configuration | Over LAN via Veracity’s SITESCAPE application |
| Management | By front panel, or over LAN via Veracity’s SITESCAPE application |
| CAPACITY | |
| Disk capacity and type | SATA disks of any capacity and most makes and models are compatible Check our website for up to date disk capacities |
| Array capacity | Maximum array capacity is currently - 210TB (with current max available 14TB disks) Effective capacity - Mirrored Overlapping - 196TB Effective capacity - Mirrored Pair - 98TB |
| ALARMS | |
| Alarm relays | 4 software configurable e.g. disk fail, disk inserted, disk extracted, etc. |
| Alarm inputs | 4 software configurable e.g. UPS active, power down, etc |
| POWER | |
| Power supply type | Dual hot-swap PSU |
| Power supply rating | 110-240V AC Input (Auto sensing) |
| Power consumption | 60 watts typical maximum (PSU rated at 320W) |
| PHYSICAL/ENVIRONMENTAL | |
| Dimensions | 19” rack width, 3U high, 483mm deep (W 440mm x D 483mm x H 131mm) |
| Weight | 15.6kg (34.4lbs) |
| Operating temperature | 5o C to 50o C (41o F to 122o F) |
| Relative humidity | Up to 85%, non-condensing |
| Compliance | CE, FCC, RoHS |
| PRODUCT CODES | |
| VER-CSTORE15 | COLDSTORE 15-bay 3U unit, configured for Wisenet WAVE, USA power cables |
| VER-CSTORERAIL | Rack mount rails for supporting COLDSTORE chassis in 19” racks |
| VER-CSTORECRDL | HDD Cradle |
