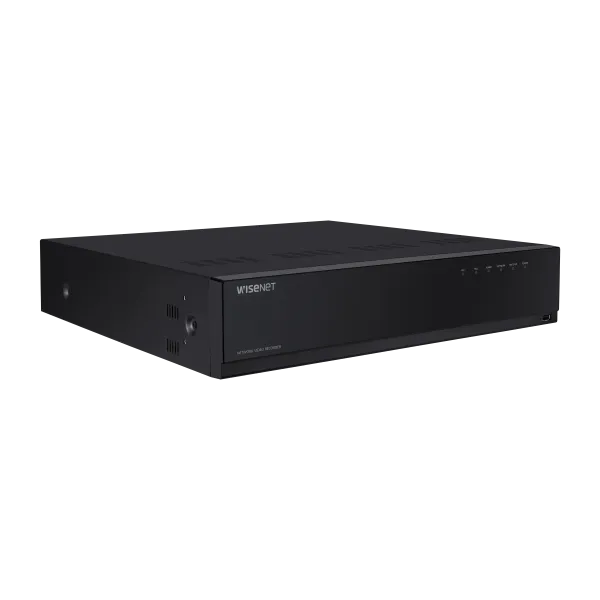

Hanwha - WRN-1610S-4TB - Wisenet Wave Wrn 1610s 16 Channel Wave Poe+ NVR With 4TB HDD

Name: Hanwha - WRN-1610S-4TB - Wisenet Wave Wrn 1610s 16 Channel Wave Poe+ NVR With 4TB HDD
Brand: Hanwha Vision
SKU: WRN-1610S-4TB

Part number:

WRN-1610S-4TB

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

2U WAVE PoE NVR (Intel based) with 4 Professional licenses, 4TB RAW, supports: 16 channels with 16 PoE/PoE+ ports (PoE Budget 200W), Wisenet WAVE pre-installed, H.264/H.265/MJPEG, 4 fixed internal SATA HDDs (6TB max per HDD), Wisestream technology, HDMI/VGA output, Dual GbE NICs

Features:

Up to 16 PoE+ channels
Includes 4 WAVE Pro Licenses
Supports H.265/H.264/MJPEG cameras
Max 4 HDDs
HDMI/VGA monitor outputs for configuration and basic monitoring
16 PoE/PoE+ ports, with a total power budget of 200W
PoE port control & Alarm I/O supported
ONVIF camera compliant
Rack mountable
Supports up to 24Tb of internal storage with 4 HDDs
Recommended maximum of 30 servers for a merged system
Preloaded with Ubuntu Linux 18.04 LTS & WAVE VMS client & server

SYSTEM
Video Management Software	Wisenet WAVE
Pre-loaded Licenses	4x Wisenet WAVE Professional licenses
Recording Bandwidth	Up to 150 Mbps
OS Drive Bays	1 x eMMC SSD (embedded)
Data Drive Bays	4 x 3.5" SATA HDDs
Data Storage	Up to 24TB raw
Indicator Lights	Power, Alarm, HDD, Network, Record, PoE Over Budget
Network Interface	2 x RJ-45, Gigabit Ethernet, 16 x PoE+ 100Mbps

Alarm I/O	4 x Alarm Input / 2x Alarm Output
PoE Camera Ports	16 x 100Mbps, Each Maximum 30W 802.3at PoE+, Total Budget 200W
Mouse	Included
Rack Mount Brackets	Included
MECHANICAL / ELECTRICAL / ENVIRONMENTAL

Mechanical	Form Factor	2U rack mount chassis
	Color / Material	Black / Metal
	Dimensions	17.32" x 3.54" x 16.78" (440mm x 89.8mm x 426.3mm)
	Weight	11.46lb (5.2kg) without hard drives
Electrical	Power Supply	320W maximum with 4 HDD, Maximum PoE; 63W 4 HDDs, PoE Off
Electrical	Power Input	100 ~ 240V AC
Environmental	Operating Temperature	32°F to 104°F (0°C to 40°C)
Environmental	Operating Humidity	20% to 85% RH, non-condensing
Certification		UL, CE, FCC

Name

Description

Size

Downloads

File

Datasheet

0.3mb
