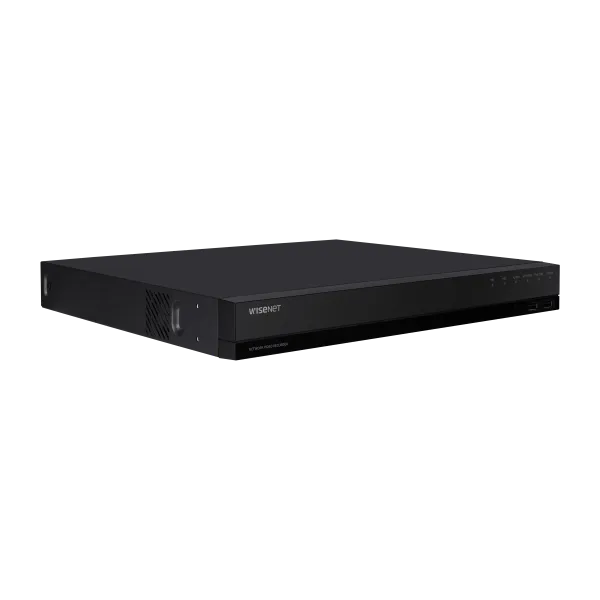

Hanwha - WRN-810S-6TB - 8 Channel Wave Poe+ NVR With 6TB HDD 1 RU
Part number:
WRN-810S-6TB
Price:
1U WAVE PoE NVR (Intel based) with 4 Professional licenses, 4TB RAW, supports: 8 channels with 8 PoE/PoE+ ports (PoE Budget 100W), Wisenet WAVE pre-installed, H.264/H.265/MJPEG, 2 fixed internal SATA HDDs (6TB max per HDD), Wisestream technology, HDMI/VGA output, Dual GbE NICs
Features:
- Up to 8 PoE+ channels
- Includes 4 WAVE Pro Licenses
- Supports H.265/H.264/MJPEG cameras
- HDMI/VGA monitor outputs for configuration and basic monitoring
- 8 PoE/PoE+ ports, with a total power budget of 100W, 2 Gigabit uplink ports
- PoE port control & Alarm I/O supported
- ONVIF camera compliant
- Rack mountable
- Supports up to 12Tb of internal storage with 2 HDDs
- Recommended maximum of 30 servers for a merged system
- Preloaded with Ubuntu Linux 18.04 LTS & WAVE VMS client & server
System
| Video Management Software | Wisenet WAVE |
| Pre-loaded Licenses | 4x Wisenet WAVE Professional licenses |
| Recording Bandwidth | Up to 80 Mbps |
| OS Drive Bays | 1 x eMMC SSD (embedded) |
| Data Drive Bays | 2 x 3.5" SATA HDDs |
| Data Storage | Supports up to 12TB raw |
| Indicator Lights | Power, Alarm, HDD, Network, Record, PoE Over Budget |
| Network Interface | 2 x RJ-45, Gigabit Ethernet, 8 x PoE+ 100Mbps |
| Alarm I/O | 4 x Alarm Input / 2x Alarm Output |
| PoE Camera Ports | 8 x 100Mbps, Maximum 30W 802.3at PoE+, Total Budget 100W |
| Operating System | Linux Ubuntu 18.04 LTS |

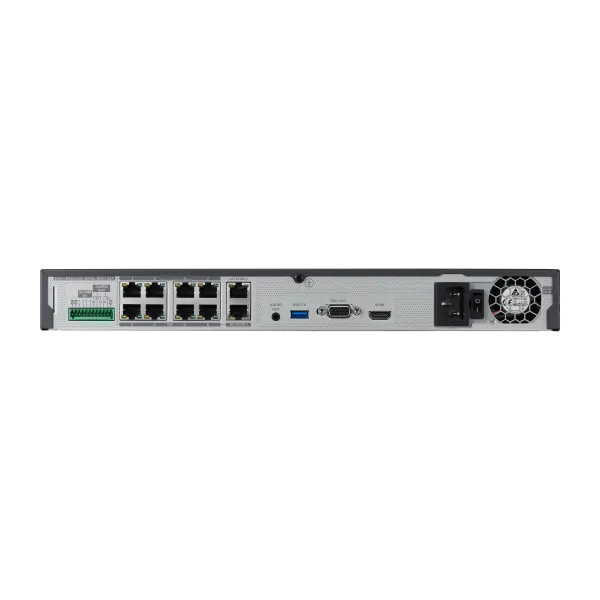

| Video Outputs | 1x HDMI 4K (rear), 1x VGA 1080p (rear) *System Config & Basic Monitoring |
| USB Ports | 1 x USB 3.0 (rear), 2 x USB 2.0 (front) |
| Other Ports | 3.5mm stereo audio out |
| Mouse | Included |
| Rack Mount Brackets | Included |
| Mechanical | Form Factor | 1U rack mount chassis |
| Color / Material | Black / Metal | |
| Dimensions | 14.57" x 2" x 12.77" (370mm x 50.7mm x 324.3mm) | |
| Weight | 5.95lb (2.7kg) without hard drives | |
| Electrical | Power Supply | 164W maximum with 2 HDD, Maximum PoE; 37W 2 HDDs, PoE Off |
| Power Input | 100 ~ 240V AC | |
| Environmental | Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 20% to 85% RH, non-condensing | |
| Certification | UL, CE, FCC | |
