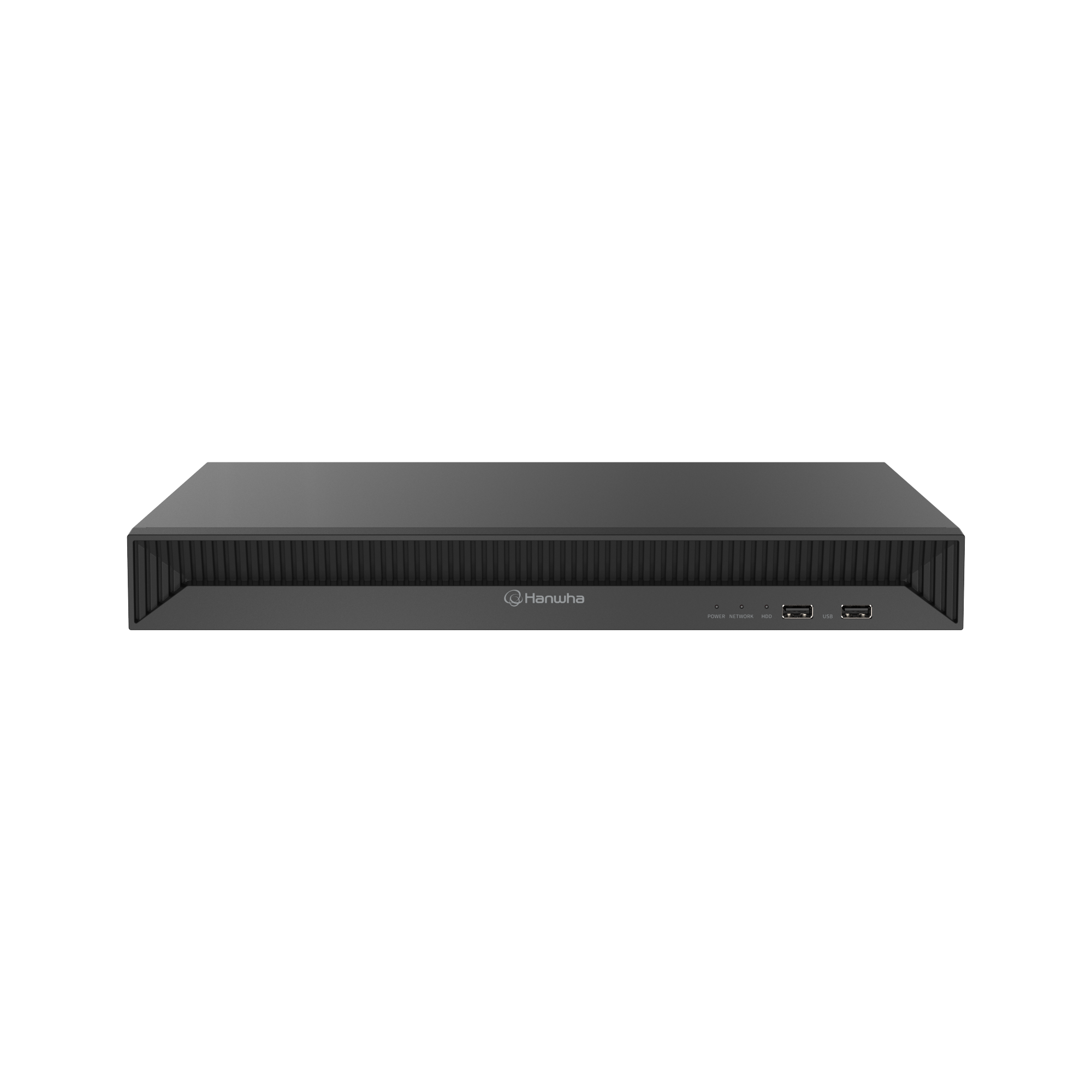

Hanwha - WRN-816S-20TB - 1U WAVE PoE NVR (Intel based) with 4 Professional licenses, 20TB RAW, supports: 16 channels with 8 PoE/PoE+ ports (PoE Budget 100W), Wisenet WAVE pre-installed, H.264/H.265/MJPEG, 2 fixed internal SATA HDDs (10TB max per HDD)
Part number:
WRN-816S-20TB
Price:
1U WAVE PoE NVR (Intel based) with 4 Professional licenses, 20TB RAW, supports: 16 channels with 8 PoE/PoE+ ports (PoE Budget 100W), Wisenet WAVE pre-installed, H.264/H.265/MJPEG, 2 fixed internal SATA HDDs (10TB max per HDD), Wisestream technology, HDMI/DP output, Dual GbE NICs
Features:
- Supported by Wave client, mobile and Cloud Sync
- Supports AI metadata
- 150 Mbps of recording throughput
- Supports up to 20TB internal storage
- HDMI/DP monitor outputs for configuration and basic monitoring
- 8 PoE/PoE+ ports, with a total power budget of 100W
- Includes USB mouse and rack mount brackets
| Display | |
| Decoding | Local Display HDMI (1), DP (1) |
| Performance | |
| Operating System | Embedded Ubuntu 22.04 LTS |
| Record | |
Recording Bandwidth Max. 150Mbps | Max. 150Mbps Up to 10TB |
| Storage | HDD Slot SATA 2ea (Max. 20TB) |
| Interface | |
| Front | Indicator Power, Network, HDD |
| HDMI | 1EA |
| DP | 1EA |
| Audio | Audio output |

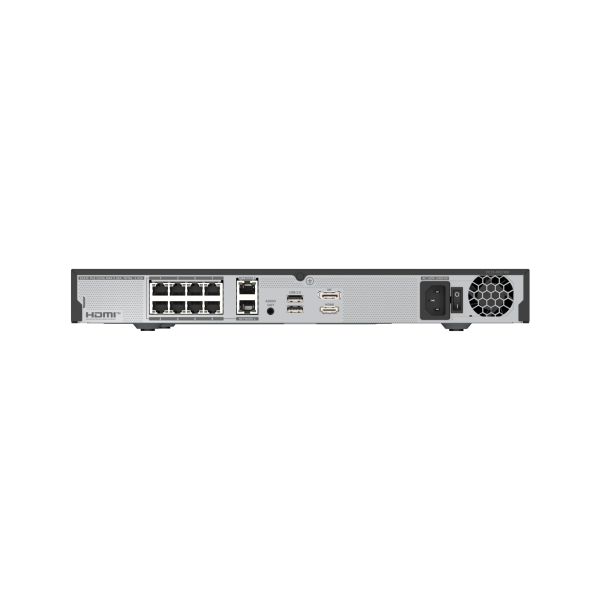

| Ethernet | PoE RJ-45(LAN, 10/100) 8 EA, RJ-45 2ea (WAN, 1Gbps) |
| USB | Front USB 2.0(2), Rear USB 3.0(2) |
| Environmental | |
| CPU | Dual core |
| RAM | DDR4 8GB |
| OS HDD | eMMC 32GB |
| Operating Temperature | 0°C to +40°C (32℉to 104℉) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz |
| Power Consumption | 170W |
| PoE Budget | 100W |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | 370.0 x 50.7 x 320 mm |
| Weight | 2.78Kg |
