Hanwha - WRR-5301-16TB - Wisenet WAVE optimized 2U rack server-16TB
Part number:
WRR-5301-16TB
Price:

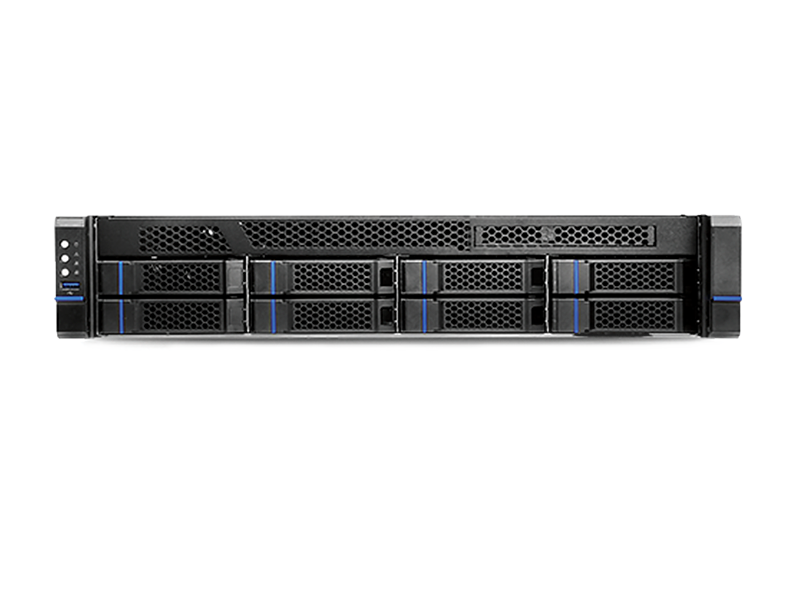

The WRR-5301 is a Wisenet WAVE optimized 2U rack-mounted Network Video Recorder that is capable of managing up to 64TB of storage and recording up to 470Mbps. The NVR is pre-configured with Wisenet WAVE VMS, and preloaded with 4 Professional licenses to ensure quick and easy deployment with minimum setup time.



Features:

  • Preloaded and configured with Wisenet WAVE video management system
  • Includes (4) four Wisenet WAVE Professional licenses
  • 470 Mbps of recording throughput
  • Redundant 800W power supply
  • Up to 64TB internal storage
  • Supports Wisenet and ONVIF conformant IP cameras
  • Includes USB mouse and keyboard

SYSTEM

Video Management SoftwareWisenet WAVE
Pre-loaded Licenses4x Wisenet WAVE Professional license
Recording BandwidthUp to 470 Mbps
OS Drive Bays1 x 256GB SSD (internally mounted)
Data Drive Bays8 x 3.5" HDD
Data StorageUp to 64TB raw
RAID SupportN/A
Network Interface2 x RJ-45, Gigabit Ethernet
ProcessorIntel Core i5-7500, 3.4GHz
Memory8GB DDR4
Operating SystemWindows 10 IoT Enterprise | Linux Ubuntu 16.04 LTS
Video Outputs1x Display Port (rear), 1x HDMI (rear), 1x DVI (rear)
USB Ports6x USB 3.0 (rear), 1x USB 3.0 (front)
Other Ports3.5mm audio in/out, 1x SPDIF out
Keyboard & MouseIncluded
Sliding Rail KitIncluded

MECHANICAL / ELECTRICAL / ENVIRONMENTAL

Form Factor2U rack mount chassis
Color / MaterialBlack / Metal
Dimensions26" x 17.2" x 3.5" (660mm x 438mm x 87mm)
Weight30.86lb (14kg)

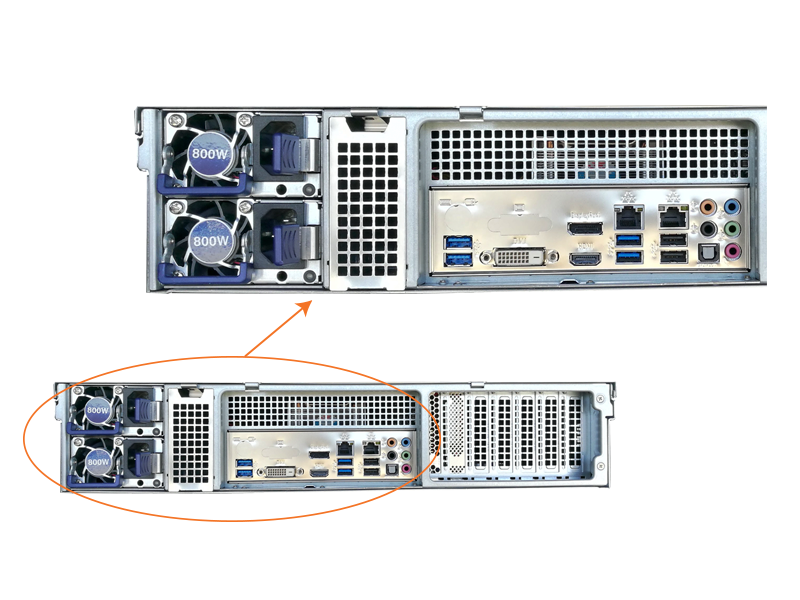

Power Supply800W Redundant
Power Input100 ~ 240V AC
Operating Temperature32°F to 122°F (0°C to 50°C)
Storage Temperature-40°F to 158°F (-40°C to 70°C)
Operating Humidity5% to 85% RH, non-condensing
CertificationUL, cUL, CB, FCC, 80 Plus Platinum
