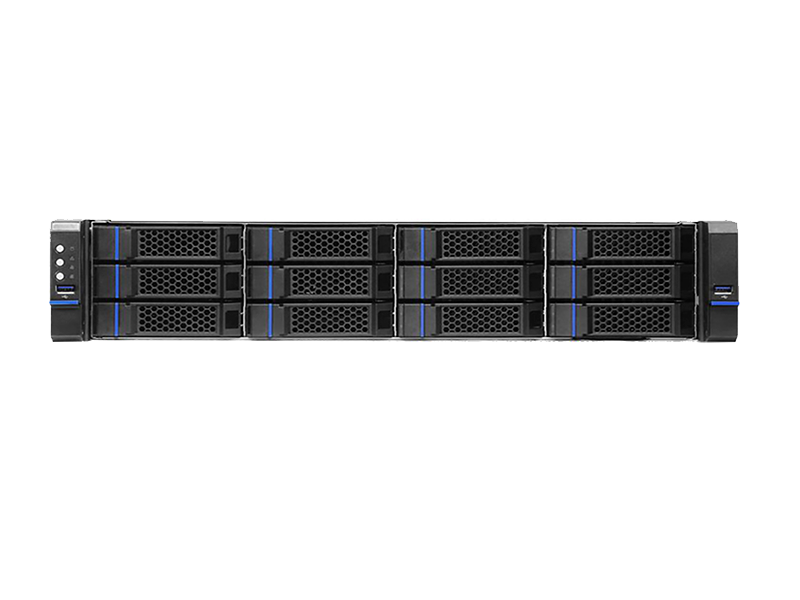

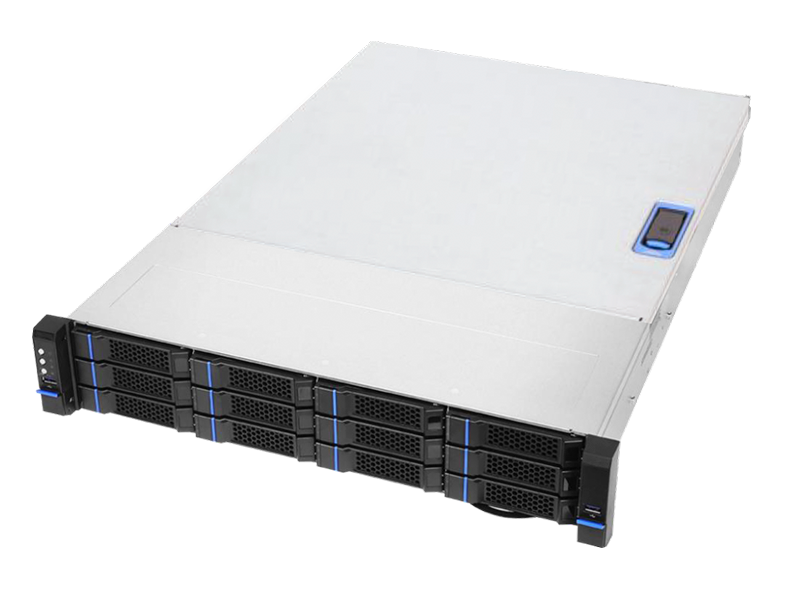

Hanwha - WRR-5501-44TB - Wisenet WAVE optimized 2U rack server-44TB
Part number:
WRR-5501-44TB
Price:

The WRR-5501 is a Wisenet WAVE optimized 2U rack-mounted Network Video Recorder capable of managing up to 96TB of storage. The combination of a redundant power supply and various RAID configurations make the WRR-5501 the ideal solution for reliable storage of large amounts of video data.The NVR is pre-configured with Wisenet WAVE VMS and preloaded with 4 Professional licenses to ensure quick and easy deployment with minimum setup time.



Features:

  • Preloaded and configured with Wisenet WAVE video management system
  • Includes (4) four Wisenet WAVE Professional licenses
  • 470 Mbps of recording throughput
  • Supports RAID 0/1/5/6/10/50/60 and includes Backup Battery Unit (BBU)
  • Redundant 800W power supply
  • Up to 96TB internal storage
  • Supports Wisenet and ONVIF conformant IP cameras
  • Includes USB mouse and keyboard
SYSTEM
Video Management SoftwareWisenet WAVE
Pre-loaded Licenses4x Wisenet WAVE Professional license
Recording BandwidthUp to 470 Mbps
OS Drive Bays1 x 256GB SSD (internally mounted)
Data Drive Bays12 x 3.5" HDD (Hot-Swappable)
Data StorageUp to 96TB raw, pre-configured for RAID 6
RAID SupportRAID 0/1/5/6/10/50/60 + BBU
Network Interface2 x RJ-45, Gigabit Ethernet
ProcessorIntel Core i5-7500, 3.4GHz
Memory8GB DDR4
Operating SystemWindows 10 IoT Enterprise | Linux Ubuntu 16.04 LTS

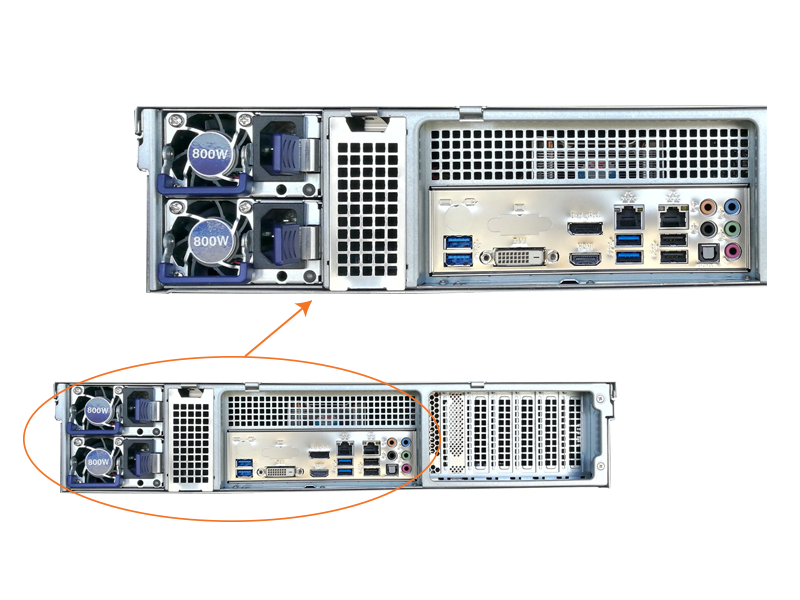

Video Outputs1x Display Port (rear), 1x HDMI (rear), 1x DVI (rear)
USB Ports6x USB 3.0 (rear), 2x USB 3.0 (front)
Other Ports3.5mm audio in/out, 1x SPDIF out
Keyboard & MouseIncluded
Sliding Rail KitIncluded
MECHANICAL / ELECTRICAL / ENVIRONMENTAL
Form Factor2U rack mount chassis
Color / MaterialBlack / Metal

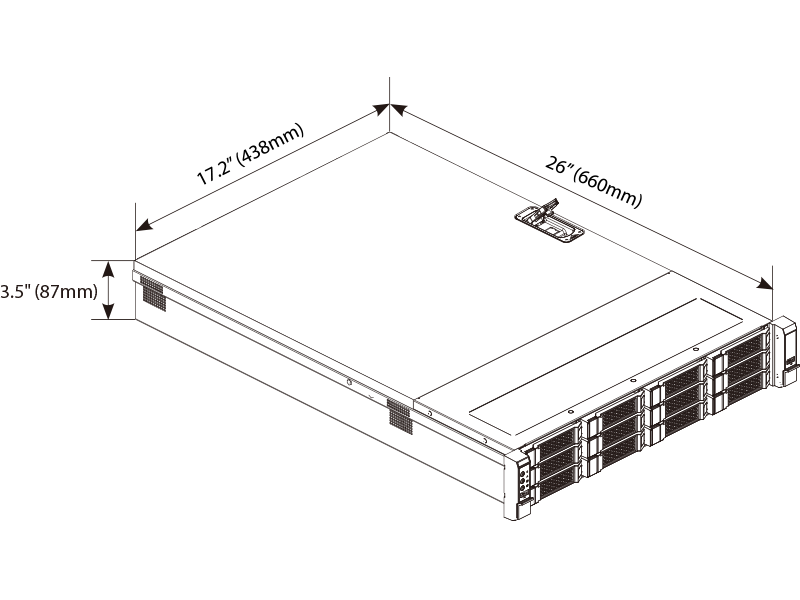

Dimensions26" x 17.2" x 3.5" (660mm x 438mm x 87mm)
Weight30.86lb (14kg)
Power Supply800W Redundant
Power Input100 ~ 240V AC
Operating Temperature32°F to 122°F (0°C to 50°C)
Storage Temperature-40°F to 158°F (-40°C to 70°C)
Operating Humidity5% to 85% RH, non-condensing
CertificationUL, cUL, CB, FCC, 80 Plus Platinum
Name
Description
Size
Downloads
File
Specifications
0.5mb
File
WAVE Server Quick Start Guide
1.7mb
File
Quick Install Guide for WRR Sliding Rails Kit
2.2mb
