Hanwha - WRR-5501L-40TB - Wisenet WAVE optimized 2U rack server-40TB
Part number:
WRR-5501L-40TB
Price:
The WRR-5501L is a Wisenet WAVE optimized 2U rack-mounted Network Video Recorder capable of managing up to 96TB of storage. The combination of a redundant power supply and various RAID configurations make the WRR-5501 the ideal solution for reliable storage of large amounts of video data.The NVR is pre-configured with Ubuntu Linux & Wisenet WAVE VMS, as well as preloaded with 4 Professional licenses to ensure quick and easy deployment with minimum setup time.
Features:
- Preloaded and configured with Wisenet WAVE video management system
- Includes (4) four Wisenet WAVE Professional licenses
- 470 Mbps of recording throughput
- Supports RAID 0/1/5/6/10/50/60 and includes Backup Battery Unit (BBU)
- Redundant 800W power supply
- Up to 96TB internal storage
- Supports Wisenet and ONVIF conformant IP cameras
- Includes USB mouse and keyboard
- Configured with Ubuntu Linux Operating System
SYSTEM
| Video Management Software | Wisenet WAVE |
| Pre-loaded Licenses | 4x Wisenet WAVE Professional license |
| Recording Bandwidth | Up to 470 Mbps |
| OS Drive Bays | 1 x 256GB SSD (internally mounted) |

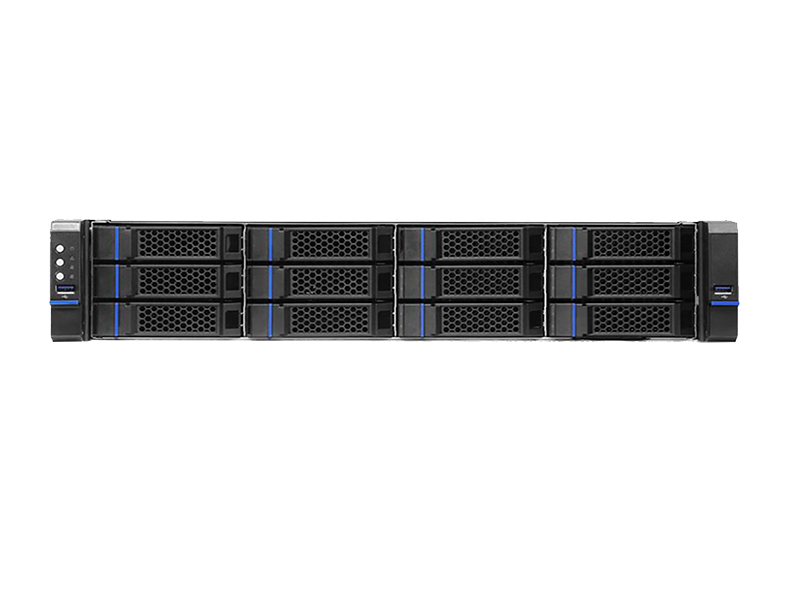

| Data Drive Bays | 12 x 3.5" HDD (Hot-Swappable) |
| Data Storage | Up to 96TB raw, pre-configured for RAID 6 |
| RAID Support | RAID 0/1/5/6/10/50/60 + BBU |
| Network Interface | 2 x RJ-45, Gigabit Ethernet |
| Processor | Intel Core i5-7500, 3.4GHz |
| Memory | 8GB DDR4 |
| Operating System | Windows 10 IoT Enterprise | Linux Ubuntu 16.04 LTS |

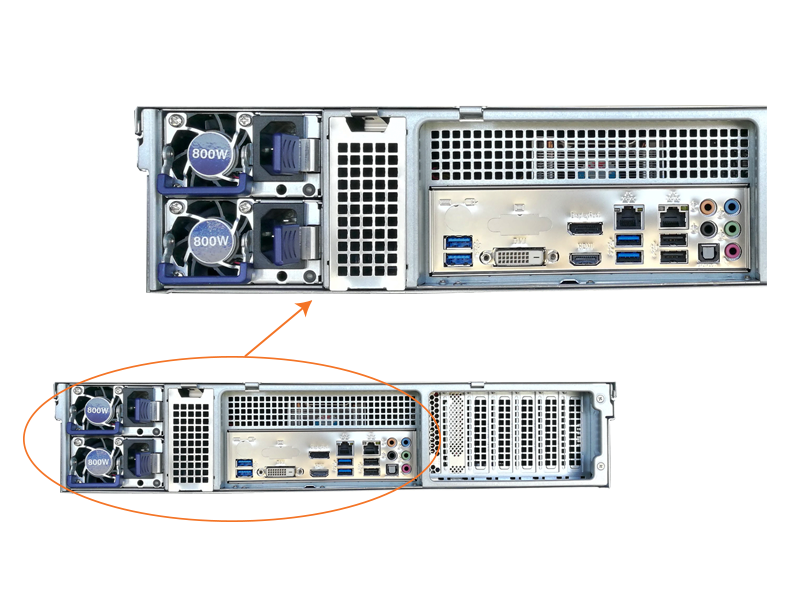

| Video Outputs | 1x Display Port (rear), 1x HDMI (rear), 1x DVI (rear) |
| USB Ports | 6x USB 3.0 (rear), 2x USB 3.0 (front) |
| Other Ports | 3.5mm audio in/out, 1x SPDIF out |
| Keyboard & Mouse | Included |
| Sliding Rail Kit | Included |
MECHANICAL / ELECTRICAL / ENVIRONMENTAL
| Form Factor | 2U rack mount chassis |
| Color / Material | Black / Metal |
| Dimensions | 26" x 17.2" x 3.5" (660mm x 438mm x 87mm) |
| Weight | 30.86lb (14kg) |
| Power Supply | 800W Redundant |
| Power Input | 100 ~ 240V AC |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Operating Humidity | 5% to 85% RH, non-condensing |
| Certification | UL, cUL, CB, FCC, 80 Plus Platinum |
