WRR-P-E200x3 series offers an affordable and reliable shallow depth 1U rackmount solution for any entry-level deployment. Up to 48TB of raw video-optimized storage is provided by 24/7 duty cycle SATA drives. The latestIntel®Xeon® Processor allowsfor high powered computingpower, and 16GB ofDDR4 RAM provides the systemresourcesto scale as needed. A dedicated solid state drive for applications and the operating system enables fast boot and load times. The fiveyear, on-site, Next Business Day, Keep Your Hard Drive warranty ensures peace of mind. Each server is pre-configured with Wisenet WAVE VMS and preloaded with 4 Professional licenses to ensure quick and easy deployment with minimum setup time.
Features:
- Up to 48TB of Raw Storage
- 470 Mbps of recording throughput
- SSD & 24/7 Duty Cycle SATA Drives
- Dedicated GPU for client application
- Shallow Depth Server
- Includes USB mouse and keyboard
- Includes Sliding Rack Rail with Cable Management Arm
- 5-Year, On-site, Next Business Day, Keep Your Hard Drive Warranty
- Supports Wisenet and ONVIF conformant IP cameras
- IPMI Management
- Powered by Ubuntu Linux 20.04 LTS Operating System
| SYSTEM | |
| Video Management Software | Wisenet WAVE |
| Recording Bandwidth | Up to 470 Mbps |
| OS Drive Bays | 1 x 480GB M2.5 SSD (internally mounted) |
| OS / Data Drive Bays | 4 x 3.5" Hot Swappable Bays (1 minimum used for OS) |

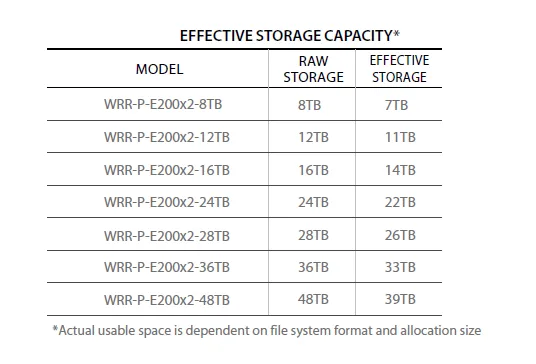

| Data Storage | Up to 48TB raw storage |
| Pre-loaded Licenses | 4 x Wisenet WAVE Professional license |
| Network Interface | 2 x RJ45 Gigabit Ethernet |
| Processor | 1 x Intel® Xeon® Processor |
| Memory | 16GB, 2 x 8GB DDR4 |
| Operating System | Windows 10 IoT Enterprise / Windows Server 2019 Standard / Ubuntu 20.04 LTS |
| Video Outputs | NVIDIA Quadro T400 3x mDP Port (1x HDMI adapter), 1 x VGA |
| USB Ports | 1x USB 2.0 (Front),1x USB 3.0 (Rear), 1x USB 2.0 (Rear) |
| Other Ports | Serial |
| Keyboard & Mouse | Included |
| Sliding Rail Kit | Included, with Cable Management Arm |
| MECHANICAL / ELECTRICAL / ENVIRONMENTAL |
| Mechanical | Form Factor | 1U shallow depth rack mount chassis |
| Color / Material | Black / Metal | |
Dimensions (WxDxH) | 19" (482.6mm) x 24.2" (614.68mm) x 1.67" (42.8mm) | |
| Weight | Maximum 26.89 lb/12.2 Kg | |
| Electrical | Power Supply | 450W Plus Bronze |
| Power Input | 100 ~ 240V AC | |
| Power Consumption | Maximum 450W | |
Environmental | Operating Temperature | Standard: 50°F ~ 95°F (10°C ~ 35°C) at 10% to 80% RH with 84.2°F maximum dew point. Extended: 40°F ~ 104°F (5°C ~ 40°C) at 5% to 85% RH with 84.2°F dew point. |
Storage Temperature | -40°F ~ 149°F (-40°C ~ 65°C ) | |
| Operating Humidity | 8% to 80% (non-condensing) | |
| Certification | UL, cUL, CB, FCC, 80 Plus Bronze | |
