Hanwha - WRR-P-E201L2-80TB - Wave Recording Server (Ubuntu OS)
• 1 U rackmount VMS solution, preloaded and configured with Wisenet WAVE video management system
• Up to 80TB of raw video-optimized storage
• 470 Mbps of recording throughput
• SSD & 24/7 Duty Cycle Drives
• Shallow Depth Server
• Includes USB mouse and keyboard
• Includes Sliding Rack Rail with Cable Management Arm
• 5-Year, Next Business Day, Keep Your Hard Drive Warranty
• Supports Wisenet and ONVIF conformant IP cameras
• Supports up to 128 channels
• IPMI Management
• Powered by Microsoft Windows 11 IoT LTSC 2024, Server 2022, or Ubuntu 22.04
| System | |
|---|---|
| Video Management Software | Wave VMS |
| Recording Bandwidth | Up to 470 Mbs |
| Included Licenses | 4 x Wave Professional License |
| OS Drive Bays | 2 x 480GB Dual RAID 1 SSD (Internally Mounted) |

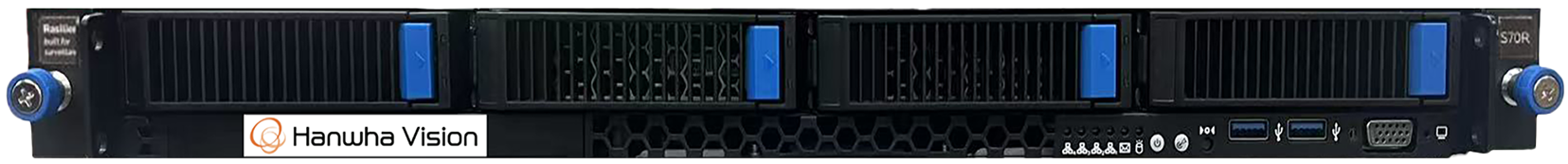

| Data Drive Bays | 4 x 3.5" Front Hot Swappable Bays |
| Data Storage | Up to 80TB raw storage |

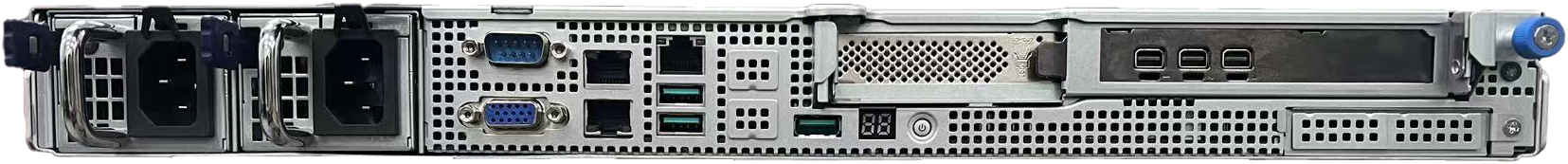

| Network Interface | 2 x RJ45 GbE (default), 2 x RJ45 + 2 x 10GbE RJ45 (optional) |
| Memory | 16GB, 2 x 8GB DDR5 |
| Other Ports | Serial |
| Sliding Rail Kit | Included, with Cable Management Arm |
| Keyboard & Mouse | Included |
| USB Ports | 2 x USB 3.2 (Front), 2 x USB 3.2 (Rear) |
| Operating System | Windows 11 IoT Enterprise LTSC 2024 / Windows Server 2022 Standard / Ubuntu 22.04 LTS |
| Mechanical | |
| Form Factor | 1U rack mount chassis |
| Dimensions (WxDxH) | 17.3" (440mm) x 19.6" (498mm) x 1.7" (44mm) |
| Weight | 50 lbs (23 kg) |
| Electrical | |
| Power Supply | (2) 450W 80 Plus Platinum |
| Power Input | 100 - 240 VAC |
| Heat Dissipation | 1725 Max BTU/hr |
| Environmental | |
| Operating Temperature | 50°F - 95°F (10°C - 35°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Operating Humidity | 10% to 80% RH with 29°C (84.2°F) maximum dew point |
| Certifications | BSMI, CE, FCC (Class A), UL/cUL equivalent (MET/Eurofins) |
The Hanwha Vision WRR-P-E201L2 is a Wave Recording Server pre-configured with Wave VMS video management software on an Ubuntu operating system. It delivers a recording bandwidth of up to 470 Mbps and includes 4 Wave Professional licenses. The server features dual 480GB RAID 1 SSDs for the operating system and 4 front hot-swappable 3.5" data drive bays supporting up to 80TB of raw storage. It is equipped with 16GB of DDR5 memory, dual Gigabit Ethernet ports with optional 10GbE expansion, and a serial port. The server is housed in a 1U rack mount chassis, includes a sliding rail kit with cable management arm, and comes with a keyboard and mouse. Dual 450W 80 Plus Platinum power supplies provide redundancy, with power input of 100-240VAC and maximum heat dissipation of 1725 BTU/hr. The operating temperature range is 50°F to 95°F (10°C to 35°C) with 10% to 80% RH humidity. Certifications include BSMI, CE, FCC Class A, and UL/cUL equivalent. This server is also available with Windows 11 IoT Enterprise LTSC 2024 or Windows Server 2022 Standard operating systems.
