Hanwha - WRR-P-E201W2-80TB - Wave Recording Server (Windows IoT OS)
• 1 U Wisenet WAVE Network Video Recorder with 4 Professional licenses
• Wisenet WAVE pre-installed
• max 80TB raw (54TB usable after disk formatting & RAID 5 configuration)
• 470 Mbps recording B/W
• 4 HDD Bay (3.5")
• Intel Xeon 6333P
• 16GB RAM
• Dual 480GB SSD OS drives (RAID 1)
• Windows IoT
• Support RAID 0/1/5/6 + 512MB NV cache
• HDMI output
• VGA output
• 2 x 1GbE NICs
• IPMI
• Redundant 450W power supplies
• Keyboard and mouse included
• Rail kit included
| System | |
|---|---|
| Included Licenses | 4 x Wisenet WAVE Professional License |
| Recording Bandwidth | Up to 470Mbps |
| OS Drive Bays | 2 x 480GB Dual RAID 1 SSD (Internally Mounted) |

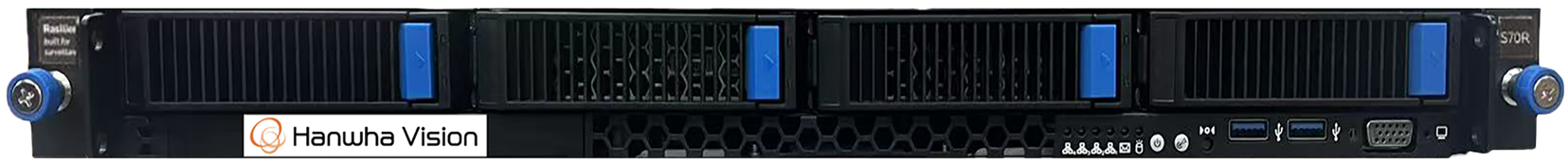

| Data Drive Bays | 4 x 3.5" Front Hot Swappable Bays |
| Data Storage | Up to 80TB raw storage |
| RAID Support | RAID 0, 1, 5, 6, 10 (RAID 5 default configuration) |
| Network Interface | 2 x RJ45 GbE (default), 2 x RJ45 + 2 x 10GbE RJ45 (optional) |
| Processor | 1 x Intel Xeon 6333P |
| Memory | 16GB, 2 x 8GB DDR4 |
| Operating System | Windows 11 IoT Enterprise LTSC |
| IPMI | Supported |

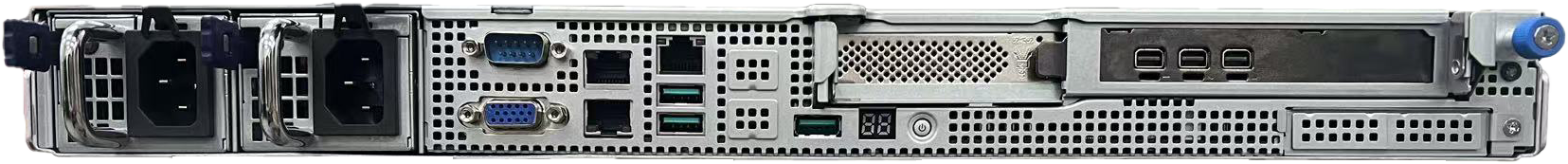

| Video Outputs | NVIDIA Quadro T400 3x MiniDisplayPort (1x HDMI adapter), 1x VGA |
| USB Ports | 2 x USB 3.2 (Front), 2 x USB 3.2 (Rear) |
| Other Ports | Serial |
| Keyboard & Mouse | Included |
| Sliding Rail Kit | Included, with Cable Management Arm |
| Mechanical | |
| Form Factor | 1U Rack |
| Color / Material | Black / Metal |
| Dimensions (HxWxD) | 17.3" (440mm) x 19.6" (498mm) x 1.7" (44mm) |
| Weight | 50 lbs (23 kg) * Weight is on chassis without HDD's |
| Electrical | |
| Power Supply | 2x 450W 80 Plus Platinum |
| Power Input | 100 ~ 240V AC |
| Heat Dissipation | 1725W Max BTU/hr |
| Environmental | |
| Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Operating Humidity | 10% to 80% RH with 84.2°F maximum dew point |
| Certification | BSMI, CE, FCC (Class A), UL/cUL equivalent (MET/Eurofins) |
The Hanwha Vision WRR-P-E201W2 is a Wave Recording Server pre-configured with Wisenet WAVE VMS on a Windows 11 IoT Enterprise LTSC operating system, including 4 Wave Professional licenses and delivering a recording bandwidth of up to 470Mbps. It features an Intel Xeon 6333P processor, 16GB of DDR4 memory, dual 480GB RAID 1 SSDs for the OS, and 4 front hot-swappable 3.5" data drive bays supporting up to 80TB of raw storage with RAID 0,1,5,6,10 support. The server includes dual Gigabit Ethernet ports, IPMI support, an NVIDIA Quadro T400 graphics card with 3x MiniDisplayPort outputs plus VGA, and a serial port. The server is housed in a 1U rack mount chassis, includes a sliding rail kit with cable management arm, and comes with a keyboard and mouse. Dual 450W 80 Plus Platinum power supplies provide redundancy with 100-240VAC input and maximum heat dissipation of 1725 BTU/hr. The operating temperature range is 50°F to 95°F (10°C to 35°C) with 10% to 80% RH humidity. Certifications include BSMI, CE, FCC Class A, and UL/cUL equivalent.
