Hanwha - WRR-P-S202S1-192TB - WAVE Recording Server
Part number:
WRR-P-S202S1-192TB
Price:
2U Wisenet WAVE Network Video Recorder with 4 Professional licenses, Wisenet WAVE pre-installed, 192TB raw (7TB usable after disk formatting & RAID 6 configuration), 470 Mbps recording B/W, 14 HDD Bay (3.5"), Intel Xeon, 16GB RAM, Dual 240GB SSD OS drives (RAID 1), Windows Server 2019 Standard, Support RAID 0/1/5/6 + 8GB NV cache, Nvidia GPU, MiniDP output, VGA output, Quad GbE NICs, IPMI, Redundant 750W power supplies, Keyboard and mouse included, Rail kit included
Features:
- Preloaded and configured with Wisenet WAVE video management system
- 470 Mbps of recording throughput
- Pre-configured for RAID 6
- Up to 224TB of Raw Storage
- Supports RAID 0, 1, 5, 6, 10 configurations
- SSD & 24/7 Duty Cycle SATA Drives
- Dedicated GPU for client application
- IPMI Management
- Includes USB mouse and keyboard
- Includes Sliding Rack Rail with Cable Management Arm
- 5-Year, On-site, Next Business Day, Keep Your Hard Drive Warranty
- Supports Wisenet and ONVIF conformant IP cameras
- Configured with Windows Server 2019 Standard
System
| Video Management Software | Wisenet WAVE |
| Recording Bandwidth | Up to 470 Mbps |
| Pre-loaded Licenses | 4 x Wisenet WAVE Professional License |
| OS Drive Bays | 2 x 240GB Dual RAID 1 SSD (internally mounted) |
| Data Drive Bays | 12 x 3.5" Front Hot Swappable Bays / 2 x 3.5" Rear Hot Swappable Bays |

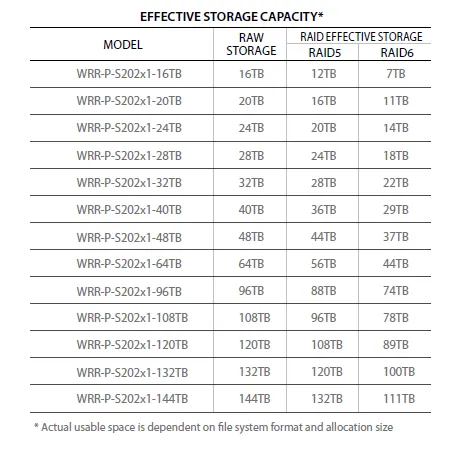

| Data Storage | Up to 144TB (Linux) / 224TB (Windows) raw storage |
| RAID Support | RAID 0, 1, 5, 6, 10, 8Gb NV Cache (RAID 6 default configuration) |
| Network Interface | 4 x RJ45 Gigabit Ethernet |
| Processor | 1 x Intel® Xeon® Processor |
| Memory | 16 GB, 2 x 8GB DDR4 |
| Operating System | Windows 10 Professional / Windows Server 2019 Standard / Ubuntu 18.04 LTS |
| Video Outputs | NVIDIA Quadro P400 3x MiniDisplay Port (1x HDMI adapter), 1 x VGA |
| USB Ports | 2 x USB 3.0 (Rear), 2 x USB 2.0 (Front), 1 x USB 3.0 (Internal) |
| Other Ports | Serial |
| Keyboard & Mouse | Included |
| Sliding Rail Kit | Included, with Cable Management Arm |
| Mechanical | Form Factor | 2U rack mount chassis |
| Color / Material | Black / Metal | |
| Dimensions (WxDxH) | 19" (482.6mm) x 28.15" (646mm) x 3.4" (86.8mm) | |
| Weight | 73 lbs. (33.1 kg) | |
| Electrical | Power Supply | (2) 1100W 80 Plus Platinum |
| Power Input | 100 ~ 240V AC | |
| Power Consumption | Maximum 788W | |
| Environmental | Operating Temperature | Standard: 50°F ~ 95°F) (10°C ~ 35°C) at 10% to 80% RH with 84.2°F maximum dew point. Refer to manual for operating temperature derating. Extended: 40°F ~ 104°F (5°C ~ 40°C) at 5% to 85% RH with 84.2°F dew point. |
| Storage Temperature | -40°F ~ 149°F (-40°C ~ 65°C) | |
| Operating Humidity | 10% to 80% RH with 84.2°F maximum dew point. | |
| Certification | UL, cUL, CB, FCC, 80 Plus Platinum | |
