Hanwha - WRR-P-S206S-352TB - Wisenet Wave NVR with 352TB HDD

Name: Hanwha - WRR-P-S206S-352TB - Wisenet Wave NVR with 352TB HDD
Brand: Hanwha Vision
SKU: WRR-P-S206S-352TB

Part number:

WRR-P-S206S-352TB

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

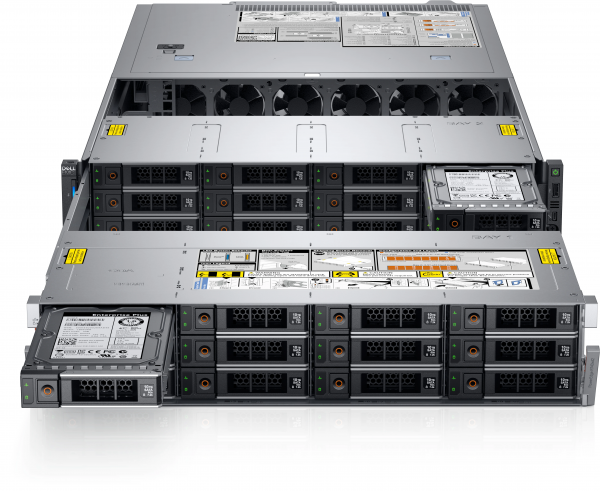

2U Wisenet WAVE Network Video Recorder with 4 Professional licenses, Wisenet WAVE pre-installed, 352TB raw (291TB usable after disk formatting & RAID 6 configuration), 470 Mbps recording B/W, 26 HDD Bay (3.5"), Dual Intel Xeon, 32GB RAM, Dual 240GB SSD OS drives (RAID 1), Windows Server 2019 Standard, Support RAID 0/1/5/6 + 8GB NV cache, Nvidia GPU, MiniDP output, VGA output, Quad GbE NICs, Dual 10Gbe SFP+, IPMI, Redundant 1100W power supplies, Keyboard and mouse included, Rail kit included

Features:

Preloaded and configured with Wisenet WAVE video management system
470 Mbps of recording throughput
Pre-configured for RAID 6
Up to 416TB of Raw Storage, 26 hot-swap hard drives
Supports RAID 0, 1, 5, 6, 10 configurations
SSD & 24/7 Duty Cycle SATA Drives
Dedicated GPU for client application
IPMI Management
Includes USB mouse and keyboard
Includes Sliding Rack Rail with Cable Management Arm
5-Year, On-site, Next Business Day, Keep Your Hard Drive Warranty
Supports Wisenet and ONVIF conformant IP cameras
Configured with Windows Server 2019 Standard

SYSTEM
Video Management Software	Wisenet WAVE
Recording Bandwidth	Up to 470 Mbps
Pre-loaded Licenses	4 x Wisenet WAVE Professional Licenses
OS Drive Bays	2 x 240GB Dual RAID 1 SSD (internally mounted)

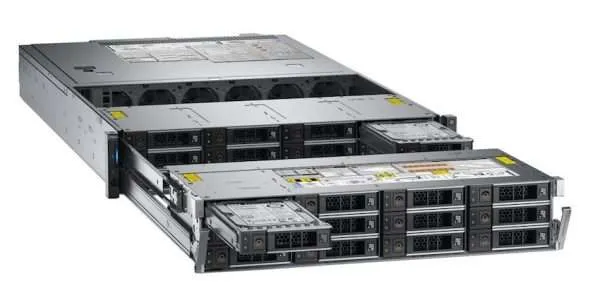

Data Drive Bays	24 x 3.5" Front Hot Swappable Bays / 2 x 3.5" Rear Hot Swappable Bays

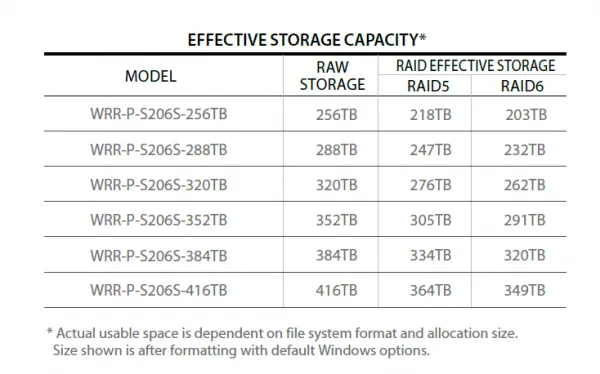

Data Storage	Up to 416TB raw storage, 349TB usable after formatting & RAID 6
RAID Support	Supports RAID 0, 1, 5, 6, 10, 8GB NV Cache (RAID 6 default configuration)
Network Interface	2 x RJ45 Gigabit Ethernet / 2 x 10GbE SFP+ Ports
Processor	2 x Intel® Xeon® Silver 4216 Series Processor, 2.1 to 3.2Ghz, 16 Cores / 32 Threads
Memory	32 GB DDR4
Operating System	Windows Server 2019 Standard

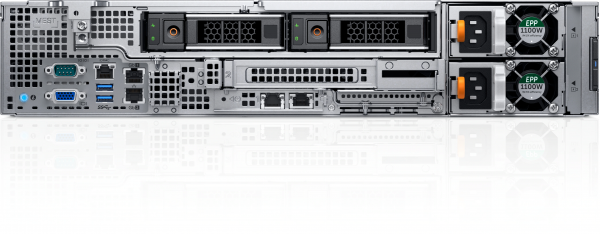

Video Outputs	3 x MiniDP (1 MiniDP to HDMI adapter included) 1x VGA* (Front), 1 x VGA* (Rear)
USB Ports	2 x USB 3.0 (Rear), 2 x USB 2.0 (Front), 1 x USB 3.0 (Internal)
Other Ports	Serial
Keyboard & Mouse	Included
Sliding Rail Kit	Included, with Cable Management Arm
MECHANICAL / ELECTRICAL / ENVIRONMENTAL

Mechanical	Form Factor	2U rack mount chassis
	Color / Material	Black / Metal
	Dimensions (WxDxH)	17.6" (448mm) x 31.9" (810mm) x 3.4" (86.8mm), *Not including handles, latches or bezel
	Weight	Up to 88.2 lbs (40 kg)
Electrical	Power Supply	2 x Redundant 1100W
	Power Input	115/230 VAC
	Power Consumption	Maximum 1100W each PSU
Environmental	Operating Temperature	Standard: 50°F ~ 95°F) (10°C ~ 35°C) at 10% to 80% RH with 84.2°F maximum dew point. Refer to manual for operating temperature derating. Extended: 40°F ~ 104°F (5°C ~ 40°C) at 5% to 85% RH with 84.2°F dew point.
	Storage Temperature	-40°F ~ 149°F (-40°C ~ 65°C)
	Operating Humidity	10% to 80% RH with 84.2°F maximum dew point.
Certification		UL, cUL, CB, FCC
